Summary of Contents for SISTEM AIR Revo Block Professional Series

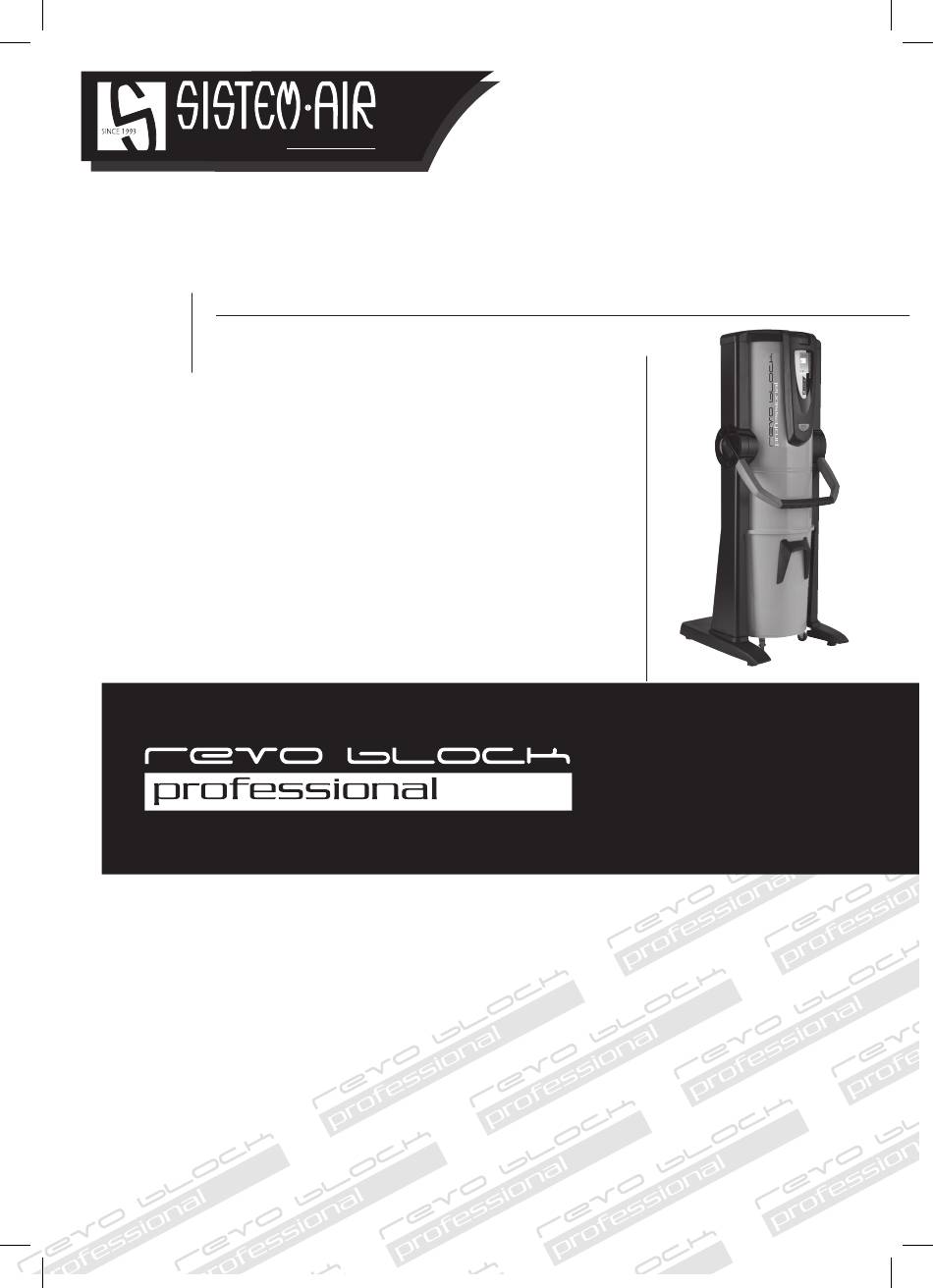

- Page 1 ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS w w w . s i s t e m a i r . c o m TECHNICAL MANUAL...
-
Page 3: Table Of Contents
ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS INSTRUCTION MANUAL • Type: industrial vacuum cleaner line • Model: Revo Block Professional Revo Block professional • Revision 2.0.0 INDEX GENERAL INFORMATION HOW TO USE THE MANUAL DESCRIPTION OF THE CENTRAL VACUUM CLEANER TECHNICAL FEATURES CONSTRUCTION FEATURES SAFETY FEATURES 5.1 IP protection degree 5.2 Electric insulation degree 5.3 Declaration of absence of dangerous substances 5.4 Fixed closure safety guards... - Page 4 ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS INSTRUCTION MANUAL • Type: industrial vacuum cleaner line • Model: Revo Block Professional Revo Block professional • Revision 2.0.0 INDEX 16 INSTALLATION 16.1 Recommended Installation 16.2 Positioning of the vacuum cleaner 16.3 Fixing the system to the wall 16.4 Transforming DX version (outlet pipes fitted on the right) into SX version (outlet pipes fitted on the left) 16.5 Connection to the piping network 16.6 Electric connection...
- Page 5 Dear Customer, TECNOPLUS S.r.l., owner of the SISTEM AIR Trademark would first of all like to thank you for having chosen to buy the new vacuum cleaner of the TECNO Star Dual Power Line. We are sure that the char- acteristics described in this manual will satisfy your needs.
-
Page 6: General Information
PVC trace pipes, housed in walls or in false ceilings running through the various rooms; at the end of the pipes are positioned the suction sockets. The SISTEM AIR vacuum cleaner is usually placed in a utility room, garage or other storeroom and connected to the suction pipes network. -
Page 7: Technical Features
3- TECHNICAL FEATURES G (recommended) Revo Block Professional Model Pressure transducer Air exhaust Speed Electronic Cover converter On-board computer Blowing motor group Master switch Micro line switch Bin release handle Entry of suction air Filter protection Conveyor cone Filter Dust container Base Wheels 06/06/2016 Rev:2.0.0... - Page 8 Technical manual Revo Block Professional ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS Revo Block Professional Revo Revo Revo Revo Revo Revo Block Block Block Block Block Block Model 1000 1200 1500 1800 Article 3203.1B 3203.2B 3203.3B 3203.4B 3203.5B 3203.6B Maintenance Computer Suction connection Ø...
-
Page 9: Construction Features
- Electrostatic material suction after prior grounding of the metal piping net installation; - Possibility to to combine the Autocleaner filter self-cleaning system even at a later date. - Pressure transducer. - Exclusive automatic suction power regulation system by Sistem Air. 06/06/2016 Rev:2.0.0... -
Page 10: Safety Features
Moreover Sistem Air produced software, which displays all the information about system functioning, once it is installed on a personal computer through the connection of an ethernet net cable and its interface board (on request). -
Page 11: Ip Protection Degree
WARNING: TECNOPLUS S.R.L. declines any form of responsibility or guarantee if the purchaser, or anyone in his stead, makes even the slightest modification or adjustment to the purchased product. The unit has been designed to satisfy at best the present needs of the domestic central vacuum cleaners market, both in terms of quality and operating capacity. -
Page 12: Control Settings
Technical manual Revo Block Professional ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 5.6 Postazione di comando The Revo Block Professional centralized vacuum system has control settings by which the apparatus fuctioning can be configured by means of a simple operator interface display. Through the control settings, it is possible to set and check the ordinary maintenance operations. - Page 13 8 - EQUIPMENT AND ACCESSORIES The packaging of the vacuum cleaner also includes a series of accessories as detailed below: N°1 Revo Block Professional vacuum cleaner N°2 rubber sleeves for the connection to the suction piping network N°4 metal clamps to fix the sleeves N°1 installation, use and maintenance manual N°1 silencer N°1 eccentric extension 80/63...
-
Page 14: Use Of The Vacuum Cleaner
The specifically-designed electronics applied to Revo Block Professional vacuum cleaners is based on so- phisticated software designed exclusively for Sistem Air, which alerts the operator, by means of a dedicated messaging package, when routine maintenance should be carried out. -
Page 15: Emptying The Dust Bin
10 EMPTYING THE DUST BIN Use both hands to raise the release handle Remove the dust container Remove the conveyor cone and the bag-stretcher 06/06/2016 Rev:2.0.0... - Page 16 Technical manual Revo Block Professional ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS Tie up the dust bag and remove it from the container Introduce a new dust bag and the bag-stretcher Assemble the conveyor cone Put the dust container back in its position Use both hands to lower the clip handle 06/06/2016 Rev:2.0.0...
-
Page 17: Replacing The Filter Cartridge
11 REPLACING THE FILTER CARTRIDGE Lift the release handle using both hands Remove the dust container Unscrew the blocking knob Replace the filter cartridge 06/06/2016 Rev:2.0.0... - Page 18 Technical manual Revo Block Professional ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS Screw the blocking knob Reassemble the dust container in its position Use both hands to lower the clip handle 06/06/2016 Rev:2.0.0...
-
Page 19: Regeneration Of The Filter Cartridge
11.1 Regeneration of the filter cartridge WARNING DO NOT USE THE VACUUM CLEANER WITHOUT THE FILTER CARTRIDGE. ENSURE YOU HAVE REPLACED A SPARE FILTER CARTRIDGE BEFORE CARRYING OUT THIS OPERATION. The filter cartridge can be regener- ated more times by vacuum clean- ing the dirt on the filtering surface;... -
Page 20: Repairs And Spare Parts
Technical manual Revo Block Professional ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 12 - REPAIRS AND SPARE PARTS 12.1 Intervention Criteria Any intervention on the vacuum cleaner for repairs and/or maintenance which are not expressly author- ized in this manual is absolutely forbidden. Any repair for breakage or malfunctioning must be carried out by qualified Technical Assistance personnel. -
Page 21: Sound Emission
13 - SOUND EMISSION A sound level measurement has been gauged by measuring the acoustic pressure and the sound level of the vacuum cleaner. The test report is held at TECNOPLUS S.r.l. headquarters 14 - IDEAL LOCATION OF THE VACUUM CLEANER TO REDUCE SOUND EMISSION The following suggestions and measures will help reduce the sound emissions of the vacuum cleaner: •... -
Page 22: 16.4 Transforming Dx Version (Outlet Pipes Fitted On The Right) Into Sx Version
Technical manual Revo Block Professional ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 16.3 Fixing the vacuum cleaner The unit does not need any special fixing device. For correct and safe positioning, it is however neces- sary to check that the location selected for installing the unit features the following min. requirements: - a solid, perfectly flat and horizontal bearing surface;... - Page 23 16.5 Connection to the pipe network (see picture) The intakes for the connection to the suction pipes network and to the pipes exhausting the air outside can be assembled either on the right or left side of the unit. Silencer Using the eccentric extension 80/63, the sleeve and the metal clamps de- livered with the vacuum cleaner, con-...
- Page 24 Technical manual Revo Block Professional ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 16.6 Electrical connection WARNING: the electrical connection must be carried out ONLY by qualified personnel Before connecting the system to the electrical power supply check that the supply voltage corresponds to that required by the vacuum cleaner (see the identification plate).
- Page 25 Connector for Autocleaner device connection (optional) Power supply AC 230V/400V ALARM (max.10A) Contact normally open for alarm state notification MICRO 12Vcc Connnection to suction sockets Suction line socket connection example (MICRO) MICRO 12Vcc 06/06/2016 Rev:2.0.0...
- Page 26 Technical manual Revo Block Professional ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS Generic example of connection contact alarm notification (ALARM) The relay contact closes when the suction system experienc- es an operating anomaly. ALARM (max 10A) 16.7 Correct motor rotation direction check for Revo 700 model For the central Revo Block Professional 700, check on the first use, if there is a suction effect at the noz- zle.
-
Page 27: Onboard Computer Programming
17 ONBOARD COMPUTER PROGRAMMING By means of the touch display, it is possible to send commands from the central unit to the management computer, to make operating choices, to program ordinary maintenance and insert personal data of the installer. 17.1 Main screen 12:45 Clock data 01.09.2015... -
Page 28: Information Menus
Technical manual Revo Block Professional ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 17.2 VACUUM POWER mbar Using this function, it is possible to modify the vacuum power according to individual needs. Press ENTER to accept the data set. mbar MODIFY reduction of vacuum power selected. -
Page 29: Settings Menu
17.4 SETTINGS menu Using this function, it is possible to modify the basic system control settings and test the vacuum system operation TEST MAINTENANCE SETTINGS Test function to check and test the Timer modification and vacuum stop vacuum system and autocleaner FILTER EFFICIENCY (optional) DUST LEVEL... -
Page 30: Filter/Dust/Motor/Service
Technical manual Revo Block Professional ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 8 INFORMATION MENU FILTER/DUST/MOTOR/SERVICE By means of the INFO menu, it is possible to see information relative to microdust filtration, the dust level inside the bucket, the operation of the blowing motor assembly and the expiry of maintenance service requests. - Page 31 Example COLUMN MICRODUST FILTRATION EFFICIENCY NOTIFICATION GREEN: optimum filtration YELLOW: adequate filtration RED: poor filtration, refresh filter cartridge Example Information relative to the serial Pressing this button selects the blowing number of the motor group selected motor group for which information is required 1-2016-000001 Information box...
-
Page 32: Product Id Card
Technical manual Revo Block Professional ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS PRODUCT ID CARD By means of the INFO menu, it is possible to see information about the product, see the model, part number, serial number, circuit board firmware, production and installation data. CENTRAL VACUUM Product ID card Product model... -
Page 33: Maintenance Programming
MAINTENANCE PROGRAMMING By means of the computer, it is possible to modify the intervention times and set vacuum stop following the request for filter cleaning, dust container emptying and SERVICE maintenance. MAINTENANCE SETTINGS Timer modification and vacuum stop FILTER EFFICIENCY DUST LEVEL EXRAORDINARY MAINTENANCE AUTOCLEANER (optional) - Page 34 Technical manual Revo Block Professional ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS ALARM MAINTENANCE TIMER SETTINGS Press the two buttons to modify the ALARM timer for alarm activation VACUUM STOP SETTINGS Press within the cell to activate vacuum stop when alarm sounds ALARM ALARM VACUUM STOP ACTIVE...
-
Page 35: Test
21 TEST By means of the computer, it is possible to perform a first level diagnosirelative to any problems en- countered. TEST Press the button to access the following tests: AUTOCLEANER FUNCTIONALITY (optional) VACUUM SYSTEM FUNCTIONALITY VACUUM SOCKETS FUNCTIONALITY CAN BUS CONNECTION CHECK ALARM TEST TEST... - Page 36 Technical manual Revo Block Professional ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS Example Test failed TEST TEST TEST TEST matricola motore TEST Pressing this test carries out the TEST TEST OK selected test TEST TEST Example Test failed TEST TEST TEST TEST TEST TEST After having inserted a flexible tube...
-
Page 37: Maintenance Notifications
22 MAINTENANCE NOTIFICATIONS 22.1 Filter maintenance notifications FILTER CLEANING REQUEST This screen indicates the filter cartridge cleaning request and results from the expiry of the preset timer PLAY Pressing this key starts an animated demonstration for filter cleaning. 22.2 Dust maintenance notifications DUST EMPTYING REQUEST This screen indicates the dust container emptying request and results from the... - Page 38 Technical manual Revo Block Professional ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 22.3 Service maintenance notificiations EXTRAORDINARY MAINTENANCE REQUEST This screen indicates the vacuum system check request by qualified personnel and results from the expiry of the preset timer SERVICE INFO Telephone contact information for personnel responsible for the required maintenance RESET...
-
Page 39: Alarm Notifications
23 ALARM NOTIFICATIONS 23.1 Can Bus connection alarm CAN BUS CONNECTION DEFECT This screen notifies the request for a CAN BUS network connection test. SERVICE INFO Telephone contact information for personnel responsible in the case where it is not possible to reset the defect RESET RESET... - Page 40 Technical manual Revo Block Professional ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 23.2 Inverter Alarm INDUSTRIAL MOTOR SERIAL NUMBER INFO This cell identifies the serial number of the blowing motor in which the defect has been highlightedto INVERTER DEFECT INDICATION This screen indicates the test request for the blowing motor group assembly control section by qualified personnel INVERTER ALARM INFO...
- Page 41 Code Defect name Possible cause Intervention procedure Call the help centre and replace the I F 3 INTERNAL COMPONENT EEPROM MEMORY inverter Call the help centre and replace the I F 4 INTERNAL COMPONENT Guasto EEPROM inverter Check the blowing motor group Mechanial block and/or blowing motor 0 C F EXCESS CURRENT...
-
Page 42: Blowing Motor Group Temperature Alarm
Technical manual Revo Block Professional ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 23.4 Blowing motor group temperature alarm The blowing motor group is equipped with thermal protection, which in case of temperature recorded over 150°C, will send a notification to the computer. Before stopping suction, the computer reduces blowing motor group speed reached by 20% for 5 minutes. -
Page 43: Filter, Dust, Service Maintenance History
24 LARM/MAINTENANCE HISTORY Using the onboard computer, it is possible to see the list of maintenance requests from the central suction and the list of alarms displayed. 24.1 Filter, dust, service maintenance history INFORMATION MENU FILTER Press this key to access the next screen DUST Press this key to access... -
Page 44: Alarm History
Technical manual Revo Block Professional ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 1) ........MAINTENANCE HISTORY 2) ........Within this menu you will find the 3) ........events with date and time ........notifications relative to maintenance requests 24.2 Alarm history INFORMATION MENU ALARMS Press this key to access the next screen... - Page 45 Example ALARM HISTORY Press this key to access the next screen ALARM HISTORY ALARM HISTORY INVERTER TEMPERATURE Within this menu you will find Within this menu you will find the events, with date and time the events with date and time notification.
-
Page 46: Troubleshooting
Technical manual Revo Block Professional ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 25 TROUBLESHOOTING PROBLEM CAUSE REMEDY Perform RESET alarm and relevant maintenance required. Alarm on your computer Extract and insert the flexible tube to start the extraction (Connect the power cord) Suction does not start at all outlets The power cable is unplugged Connect the power cable The micro line cable is not... - Page 48 F0920508 27020 Gravellona Lomellina (PV) ITALIA - Via Cilavegna, 53 - GPS: N: 45° 19’ 28” ; E: 8° 45’ 32” Tel. + 39 0381 650082 - Fax +39 0381 650120 - info@sistemair.com...
