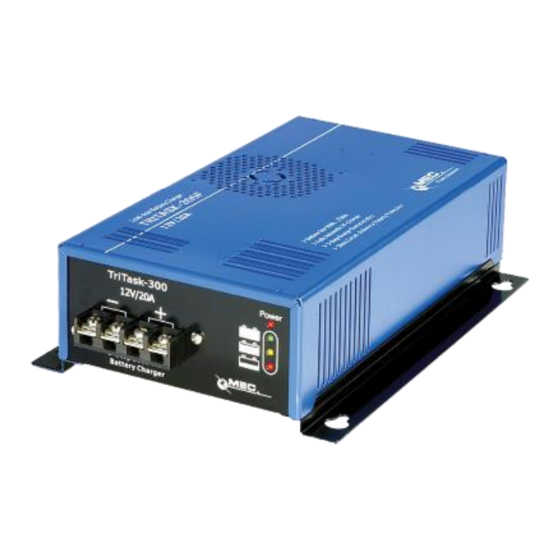

Mec TRITASK-300F Series Instruction Manual

Instruction Manual
Battery Chargers
TRITASK-300F Series:

Safety Rules and General Warnings

Persons, who are not able to use the charger in a safe way, because of their physical, sensory or mental incompetence, or because of their
•
lack of experience, should not use without the control or instruction from a skilled or qualified person.
The charger runs with 100-240 Volts alternating current, which is not suitable for children – Danger of Life. And beware of risk of electric shock
•
at all times.
Ensure sufficient air ventilation; do not cover the vent outlet while charging in progress.
•
Avoid flammable gases, solvents or vapours all the time. Prevent open flame or sparks while charging in progress. Explosion RISK!
•
The charger is exclusively designed for charging Rechargeable Lead-based Batteries and must not be used for other purposes.
•
You should take into consideration of the charging instructions issued by the battery manufacturer before charging. Check also if the charge
•
profile fits your battery and application.
DO NOT OPEN or DISMANTLE the charger. Repair work must only be processed by authorized technical staff.
•
If the mains connection of the charger is damaged, it must be replaced with an original wire which is available at MEC or authorized dealers.
•
NEVER place the charger on top of the battery while charging in progress.
•
The charger should be protected against direct solar radiation or temperatures over 40°C.
•
In case of obvious damage or malfunctioning, disconnect the charger from the mains supply and protect against unintended reconnection.
•
The DC cable must not be cut, shortened or extended under any circumstances.
•
Keep the charger in dry room (rel. humidity <80%). Clean with dry cloth only. Avoid fluid of any kind to get into the charger.
•

Special Features

IP20 Load-dependent fan cooling; sturdy spray-painted metal housing
•
Microprocessor-based 3-Step charging technology with automatic float charging; best for storage maintenance charging
•
Optimal and gentle charging for the greatest possiblity of charge cycles guaranteed with high frequent combinatorial circuit technology
•
Wide range of input with Active PFC (Power Factor Correction)
•
LED indicators showing corresponding charge status and errors
•
Protection against short circuit, reverse polarity, over temperature or overload with spark surpression
•

Product Configuration

1. Mains Socket
4. Red Mains LED
7. Red Charge LED
1
1
3
1
IP20 Load-dependent fan-cooled.
3-Step charging technology with automatic float charging
ensures optimal and gentle charging for the largest
possible number of charging cycles.
2. On / Off Switch
5. Green Charge LED
2
1
4
5
6
7
3. Terminal Block
6. Yellow Charge LED
