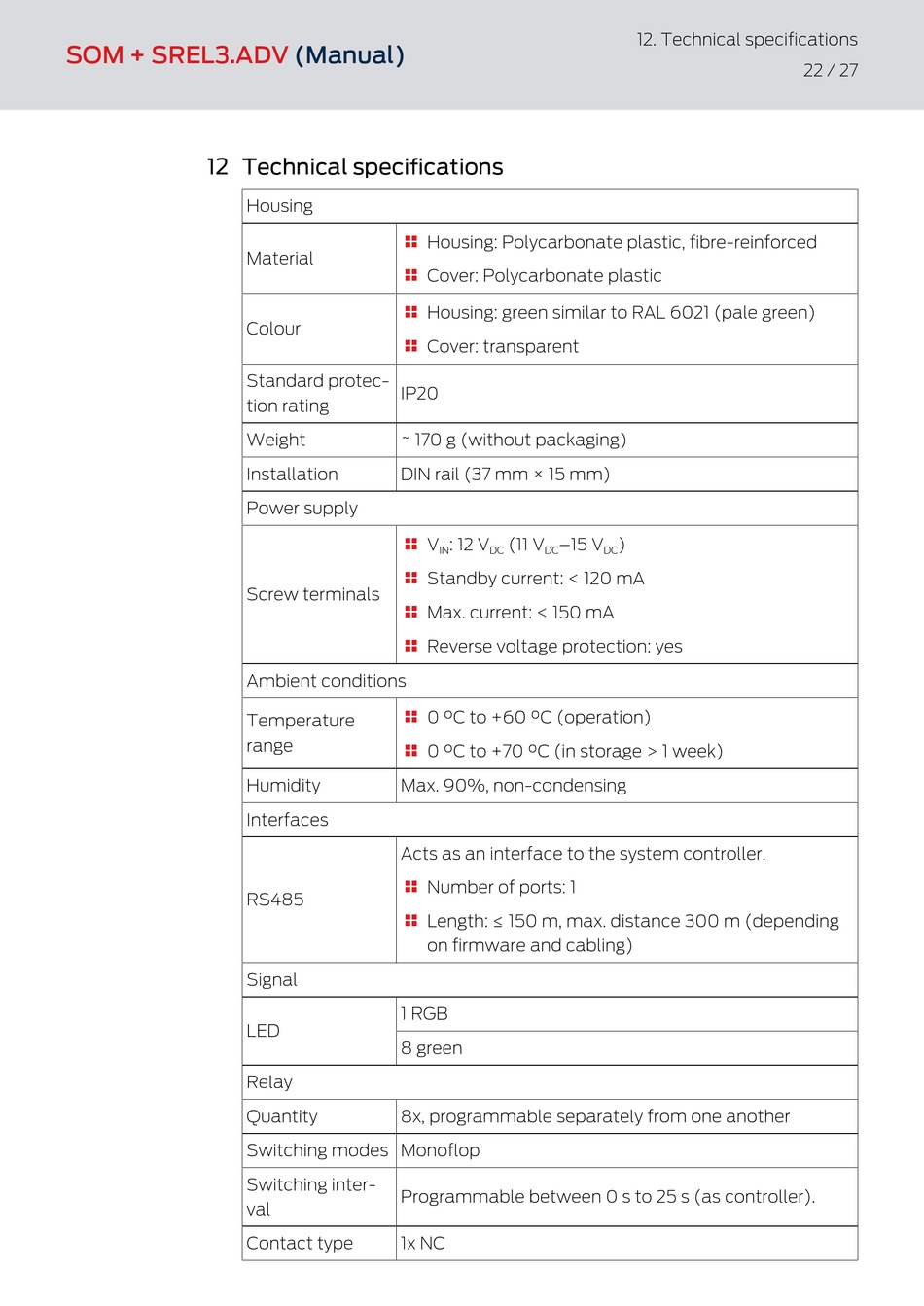

12 Technical specifications
(Manual)
Housing
Material
Colour
Standard protec-
IP20
tion rating
Weight
~ 170 g (without packaging)
Installation
DIN rail (37 mm × 15 mm)
Power supply
Screw terminals
Ambient conditions
Temperature
range
Humidity
Max. 90%, non-condensing
Interfaces
Acts as an interface to the system controller.
RS485
Signal
1 RGB
LED
8 green
Relay
Quantity
8x, programmable separately from one another
Switching modes Monoflop
Switching inter-
Programmable between 0 s to 25 s (as controller).
val
Contact type
1x NC
Housing: Polycarbonate plastic, fibre-reinforced
Cover: Polycarbonate plastic
Housing: green similar to RAL 6021 (pale green)
Cover: transparent
V
: 12 V
(11 V
–15 V
IN
DC
DC
Standby current: < 120 mA
Max. current: < 150 mA
Reverse voltage protection: yes
0 °C to +60 °C (operation)
0 °C to +70 °C (in storage > 1 week)
Number of ports: 1
Length: ≤ 150 m, max. distance 300 m (depending
on firmware and cabling)
12. Technical specifications
)
DC
22 / 27
