SOM + SREL3.ADV

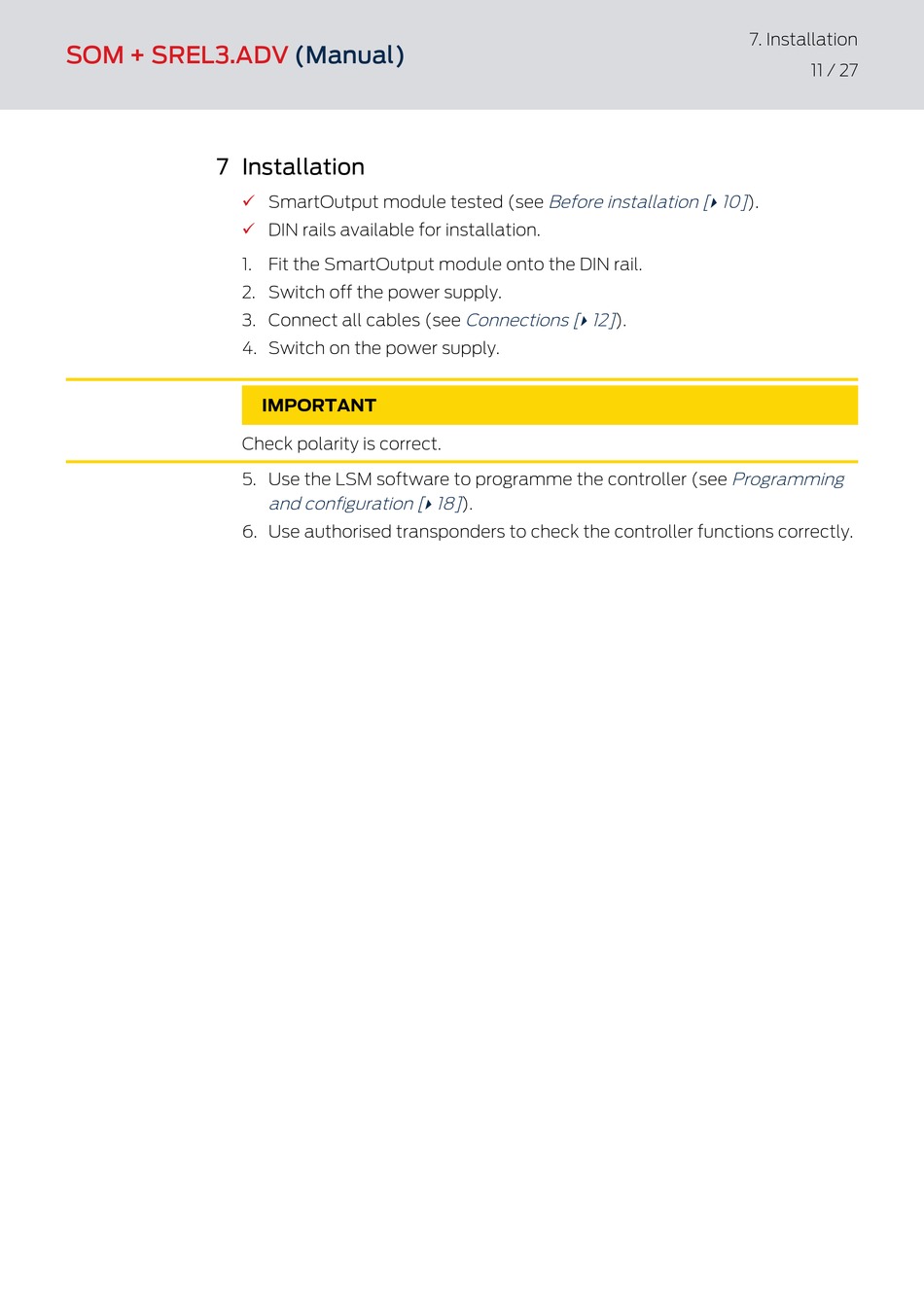

7 Installation

(Manual)
ü SmartOutput module tested (see
DIN rails available for installation.
ü
1. Fit the SmartOutput module onto the DIN rail.
2. Switch off the power supply.
3. Connect all cables (see
4. Switch on the power supply.
IMPORTANT
Check polarity is correct.
5. Use the LSM software to programme the controller (see
and configuration [
6. Use authorised transponders to check the controller functions correctly.
Before installation [
Connections [ 12]
}
18]
).
}
7. Installation
10]
).
}
).
Programming
11 / 27
