SOM + SREL3.ADV

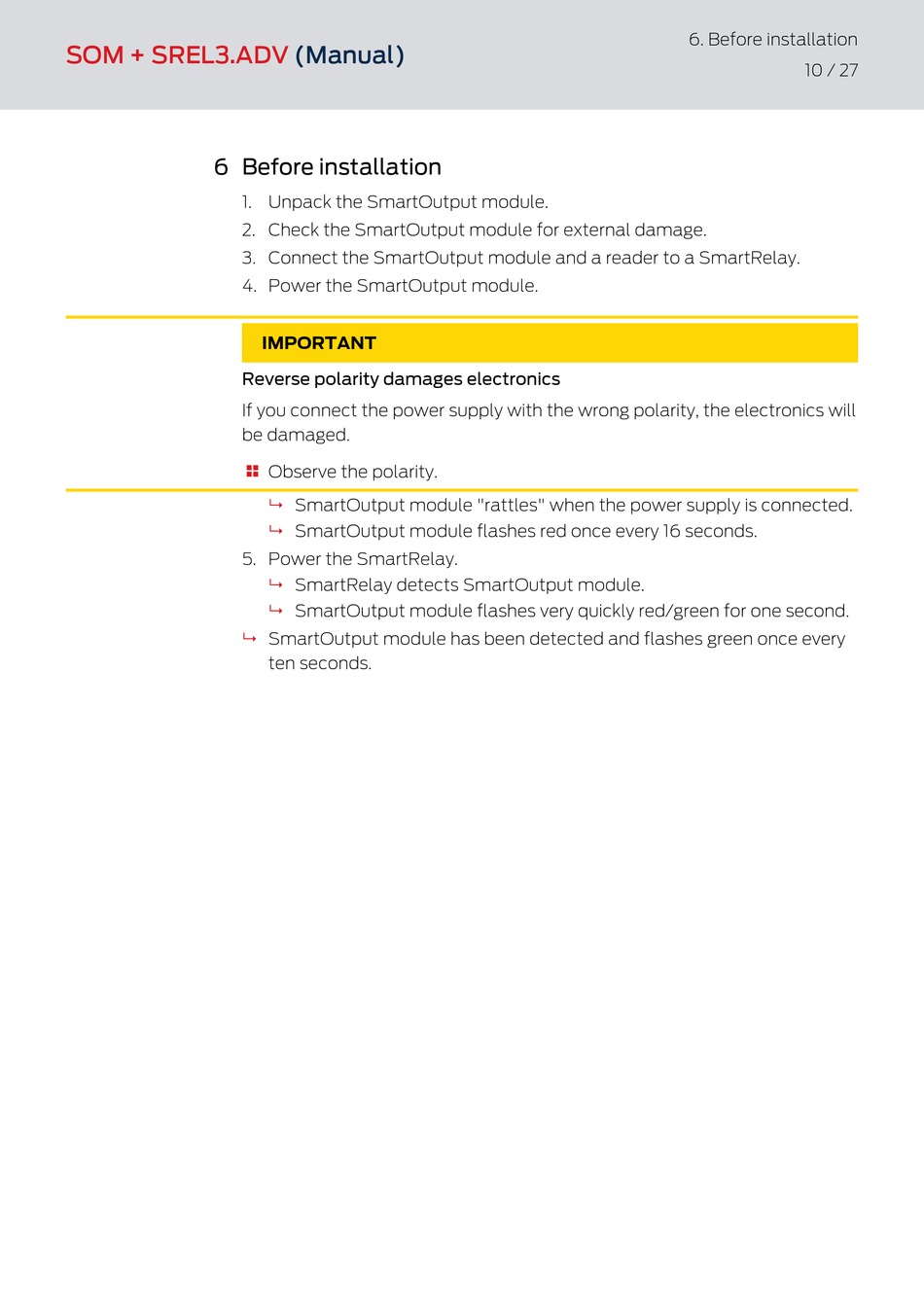

6 Before installation

(Manual)
1. Unpack the SmartOutput module.
2. Check the SmartOutput module for external damage.
3. Connect the SmartOutput module and a reader to a SmartRelay.
4. Power the SmartOutput module.
IMPORTANT
Reverse polarity damages electronics
If you connect the power supply with the wrong polarity, the electronics will
be damaged.
Observe the polarity.

9 SmartOutput module "rattles" when the power supply is connected.
SmartOutput module flashes red once every 16 seconds.
9
5. Power the SmartRelay.
9 SmartRelay detects SmartOutput module.
SmartOutput module flashes very quickly red/green for one second.
9
9 SmartOutput module has been detected and flashes green once every
ten seconds.
6. Before installation
10 / 27
