SOM + SREL3.ADV

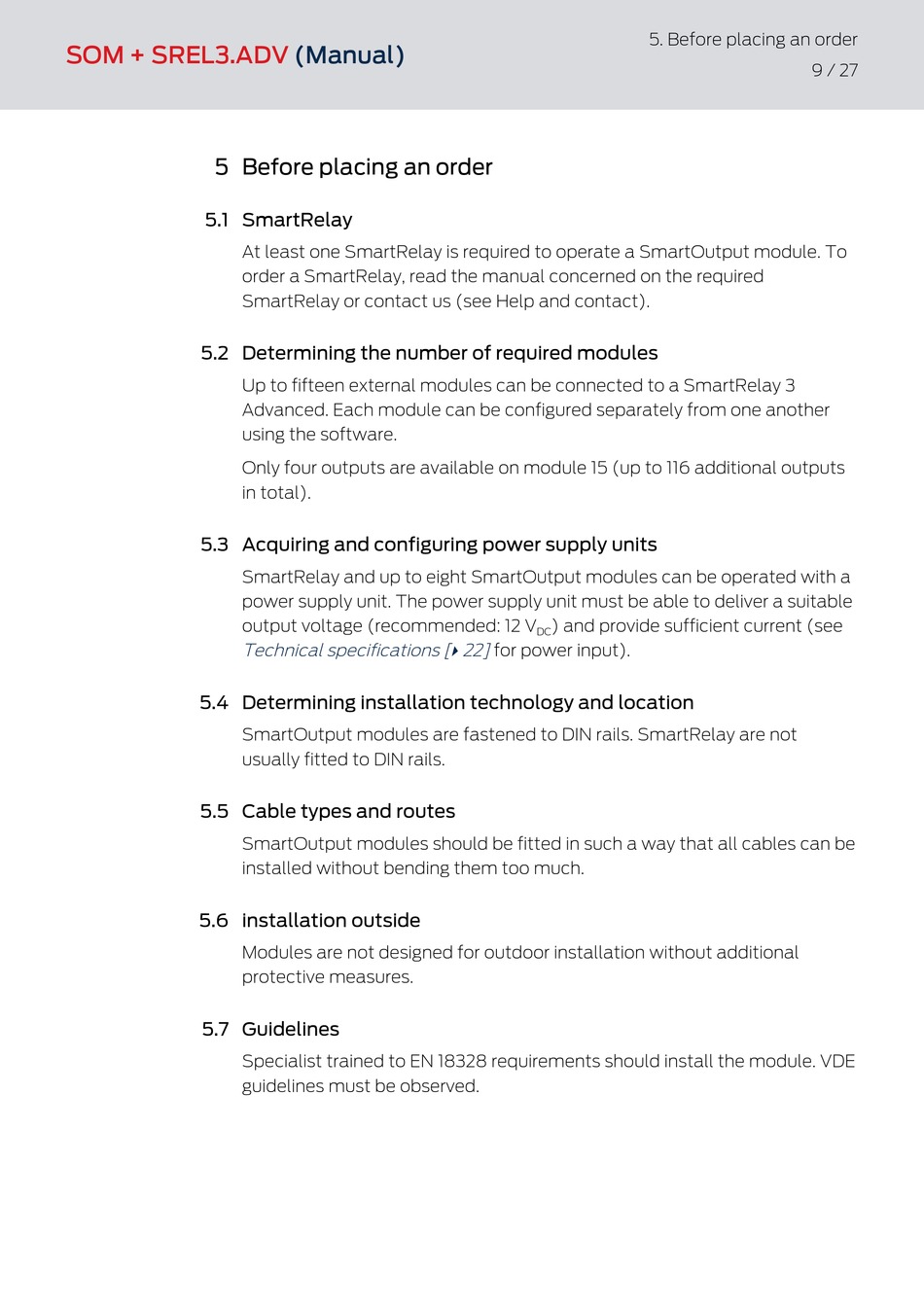

5 Before placing an order

5.1 SmartRelay

5.2 Determining the number of required modules

5.3 Acquiring and configuring power supply units

5.4 Determining installation technology and location

5.5 Cable types and routes

5.6 installation outside

5.7 Guidelines

(Manual)
At least one SmartRelay is required to operate a SmartOutput module. To
order a SmartRelay, read the manual concerned on the required
SmartRelay or contact us (see Help and contact).
Up to fifteen external modules can be connected to a SmartRelay 3
Advanced. Each module can be configured separately from one another
using the software.
Only four outputs are available on module 15 (up to 116 additional outputs
in total).
SmartRelay and up to eight SmartOutput modules can be operated with a
power supply unit. The power supply unit must be able to deliver a suitable
output voltage (recommended: 12 V
Technical specifications [
SmartOutput modules are fastened to DIN rails. SmartRelay are not
usually fitted to DIN rails.
SmartOutput modules should be fitted in such a way that all cables can be
installed without bending them too much.
Modules are not designed for outdoor installation without additional
protective measures.
Specialist trained to EN 18328 requirements should install the module. VDE
guidelines must be observed.
) and provide sufficient current (see
DC
22]
for power input).
}
5. Before placing an order
9 / 27
