1.
Functional Description .................................................................................................................2
1.1. General Information ..................................................................................................................................2
1.2. Safety Remarks ........................................................................................................................................5
2.
Assembly Instructions..................................................................................................................6
2.1. General Information on Installing the Components ..................................................................................6
2.2. Installing the Deactivation Unit (DA).........................................................................................................7
2.3. Installing the Master Activation Unit (MA)...............................................................................................10
2.4. Installing the Slave Activation Unit (SA) .................................................................................................13
2.5. Wiring the Shunt Lock Components .......................................................................................................16
2.6. Functional Principles...............................................................................................................................17
3.
Programming ...............................................................................................................................20
3.1. Programming the Activation Units (MA and SA).....................................................................................20
3.2. Programming the Deactivation Units (DA)..............................................................................................21
4.
Installation ...................................................................................................................................24
4.1. Installing the Deactivation Unit ...............................................................................................................24
4.2. Installing the Activation Unit (MA and SA)..............................................................................................25
4.3. VdS-Compliant Installation of the Activation Unit (MA and SA) .............................................................26
5.
Special Versions of the Shunt lock Function 3066 ..................................................................28
5.1. Operating the Activation Unit Without a Deactivation Unit .....................................................................28
5.2. Operating the Deactivation Unit Without an Activation Unit ...................................................................28
6.
Data Sheet....................................................................................................................................29

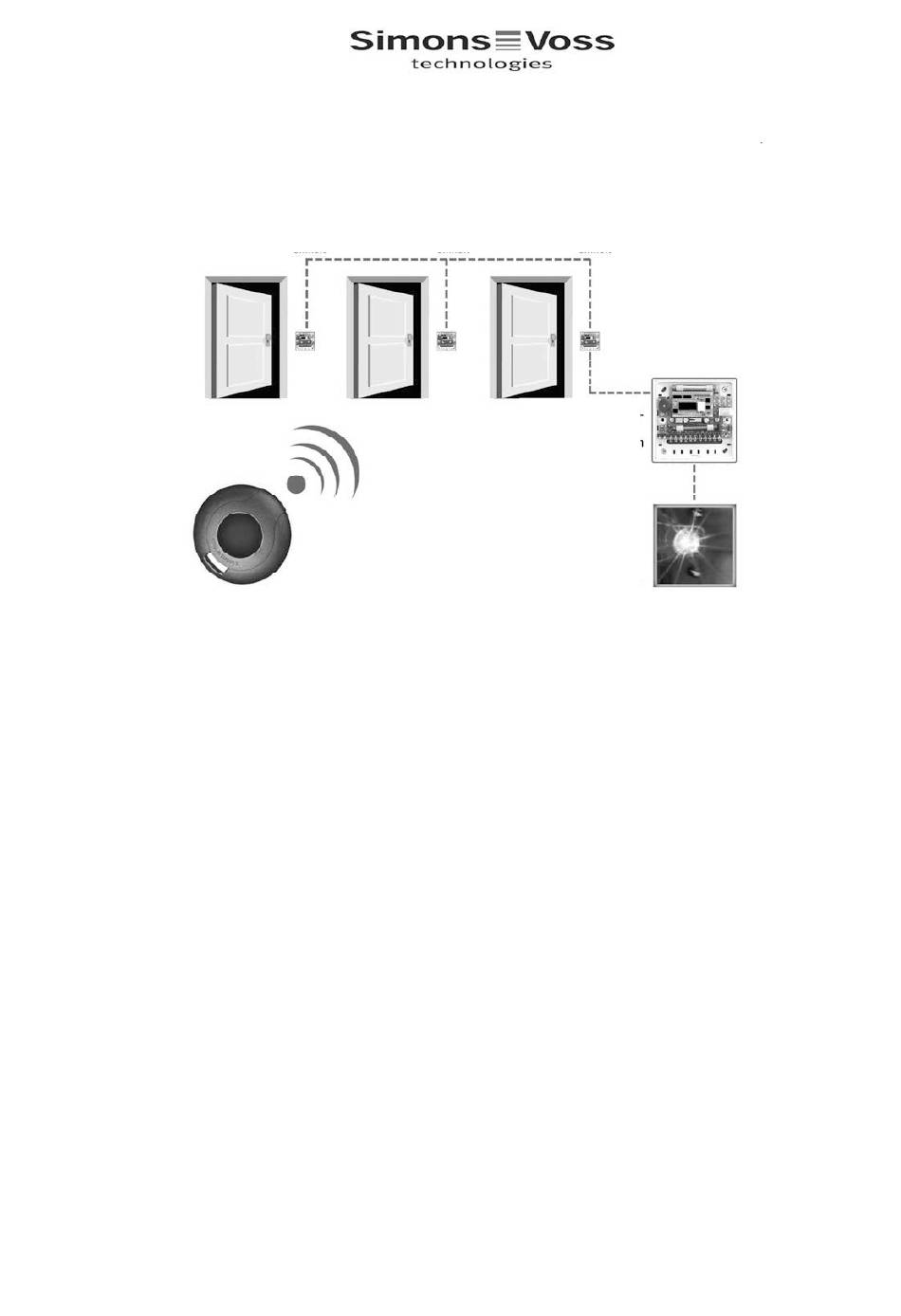

VdS Version
VdS Shunt lock Function 3066
Deactivation unit
Deactivation unit
Deactivation unit
Activation unit with
configuration
MASTER
Alarm System
E1
Version: December, 2003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3066 and is the answer not in the manual?

Questions and answers

Related Manuals for Simons Voss Technologies 3066

Summary of Contents for Simons Voss Technologies 3066

  • Page 1: Table Of Contents

    4.2. Installing the Activation Unit (MA and SA)....................25 4.3. VdS-Compliant Installation of the Activation Unit (MA and SA) .............26 Special Versions of the Shunt lock Function 3066 ..............28 5.1. Operating the Activation Unit Without a Deactivation Unit ..............28 5.2. Operating the Deactivation Unit Without an Activation Unit ..............28 Data Sheet............................29...

  • Page 2: Functional Description

    (burglar alarm system, BAS) is activated externally, because this would trigger a false alarm. The Shunt Lock Function 3066 implements such a feature without requiring extensive work on the door or doorframe.
  • Page 3 VdS Shunt lock Function 3066 Switching on the alarm system (burglar alarm system, BAS) The person with switching authorization presses his or her transponder near an activation unit two times in quick succession (within 2 sec.). This sends a signal to all deactivation units present.
  • Page 4 VdS Shunt lock Function 3066 Time zone control und access logging The activation units (master and slaves) can log activation/deactivation switches (access logging), and you can define time slots during which it is possible to activate/deactivate the system (time zone control):...

  • Page 5: Safety Remarks

    VdS Shunt lock Function 3066 1.2. Safety Remarks Read through the assembly instructions carefully and thoroughly before installing and commissioning the shunt lock components. They contain important information on the assembly, programming and operation. The components are built in accordance with the latest state of the technology. Use them...

  • Page 6: Assembly Instructions

    VdS Shunt lock Function 3066 2. Assembly Instructions 2.1. General Information on Installing the Components Always install in the protected area, for example, in the inside area behind the door, behind brickwork, etc. There are some materials, however, such as stainless steel or aluminum, that can significantly reduce the range.

  • Page 7: Installing The Deactivation Unit (Da)

    VdS Shunt lock Function 3066 2.2. Installing the Deactivation Unit (DA) + 8 ...16V Masse +LED - LED SAB0 SAB0 SAB0 SAB0 Soldering terminal assignments: Supply voltage positive pole Supply voltage negative pole (ground) 3 + 4 Connection for LED (5 volts) in outside area...
  • Page 8 VdS Shunt lock Function 3066 Deactivation Unit (DA) 2.2.1. Testing the To test, connect the deactivation unit to a 9-volt compound battery. Make sure that the polarity is correct. Position the deactivation unit within radio range of the digital locking:...
  • Page 9 VdS Shunt lock Function 3066 • Optional lock contact evaluation (global activation suppression) want alarm system remain inactivated until doors security area are closed, meaning the bolts have been driven out, you can connect the lock switch contact to soldering terminals 12 and 15. The lock contact must be a floating electric strike.

  • Page 10: Installing The Master Activation Unit (Ma)

    VdS Shunt lock Function 3066 2.3. Installing the Master Activation Unit (MA) + 8 ..16 V Masse +LED - LED SAB0 SAB0 SAB0 SAB0 Soldering terminal assignments: Supply voltage positive pole Supply voltage negative pole (ground) 3 + 4 Connection for LED (5 volts) in outside area...
  • Page 11 VdS Shunt lock Function 3066 Jumper connects left and middle contacts of B1: ⇒ Acoustic acknowledgement after final activation is done by the BAC (this is the VdS-compliant configuration). The BAC must draw pin 29 to ground for the acoustic acknowledgement.
  • Page 12 VdS Shunt lock Function 3066 2.3.2. Connecting Power Supply, Switch Contacts and Sabotage Contacts: Power supply Connect the positive pole of a direct current source between +8 ... + 16 V (recommended: +12 V) to soldering terminal 1. Note that the voltage is not permitted to exceed a value of +16 V under any circumstances.

  • Page 13: Installing The Slave Activation Unit (Sa)

    VdS Shunt lock Function 3066 2.4. Installing the Slave Activation Unit (SA) + 8 ..16 V Masse +LED - LED SAB0 SAB0 SAB0 Soldering terminal assignments: SAB0 Supply voltage positive pole Supply voltage negative pole (ground) 3 + 4 Connection for LED (5 volts) in outside area...
  • Page 14 VdS Shunt lock Function 3066 Jumper B2 is inserted: ⇒ Maximum transmitting range. For VdS-compliant installation, however, you must then work with external keys to differentiate between outside and inside. (Refer to 4.3 VdS-Compliant Installation of the Activation Unit). ⇒ In VdS-compliant installation, the range of the antenna extender is reduced solely by the correct use of the aluminum sleeve.
  • Page 15 VdS Shunt lock Function 3066 External light emitting diode You can connect an external light emitting diode to soldering terminals 3 and 4 for visual signaling. When the transponder is operated successfully, the LED blinks. Maximum length of the line: 10 m (33 feet).

  • Page 16: Wiring The Shunt Lock Components

    VdS Shunt lock Function 3066 2.5. Wiring the Shunt Lock Components We recommend that you use the following types of lines: J-Y(ST)Y 6 or 8 pin, Ø 0.6mm. The diameter should be fit to the length of the line so that the minimum voltage for the components never falls below +8 volt (voltage drop on the line).

  • Page 17: Functional Principles

    VdS Shunt lock Function 3066 2.6. Functional Principles 1. A DA deactivates a neighboring cylinder if the deactivation request line (pin 13) is drawn to ground potential by the MA or the BAC. 2. A DA reactivates a neighboring cylinder as soon as the deactivation request line (pin 13) is high-impedance, which means that the MA output (pin 14) and the corresponding BAC output must both be high-impedance.
  • Page 18 VdS Shunt lock Function 3066 Connecting plan (example with one MA and 2 DAs). 12 V VdS Version Version: December, 2003...
  • Page 19 VdS Shunt lock Function 3066 After you have completed the installation work, carry out a function test. Do this by operating an authorized transponder near the activation unit twice in quick succession. The light emitting diodes on the activation unit and the deactivation unit(s) go out and you receive the acoustic acknowledgement signal from the BAC or (if jumper B1 is inserted on the right) the signal lasting 2.5 seconds from the activation unit indicating that the...

  • Page 20: Programming

    VdS Shunt lock Function 3066 3. Programming 3.1. Programming the Activation Units (MA and SA) If you want to add the shunt lock components at some time after the initial installation, open your locking plan with the password. If this is the initial installation, create a new locking plan.

  • Page 21: Programming The Deactivation Units (Da)

    VdS Shunt lock Function 3066 In the locking plan, make a cross by the employees who are authorized to turn the alarm system on and off. ☺ You do not have to reprogram the transponders in this case. Approve your locking system and program the activation unit under Programming Locking.
  • Page 22 VdS Shunt lock Function 3066 3.2. Programming the Deactivation Units (DA) Click the line in the locking plan above the one where you want to add a deactivation unit. Select New Locking. Then give the deactivation unit a name: Such as Deactivation unit, main entrance In the field Type, select Smart Relay.
  • Page 23 VdS Shunt lock Function 3066 Deactivation units do not need any authorizations, which means that you do not have to insert any crosses. Approve your locking system and program the deactivation units under Programming Locking. The deactivation unit needs supply voltage during the programming. You can provide this with a 9-volt compound battery, for example.

  • Page 24: Installation

    VdS Shunt lock Function 3066 4. Installation 4.1. Installing the Deactivation Unit Install the deactivation unit DA in the immediate vicinity of the digital locking cylinder (no farther than approximately 30 cm or 12 inches). This guarantees optimum transmission traffic. Align the deactivation unit so that both fastening screws lie in a horizontal line. Then the antennas point directly to the locking cylinder (refer to the drawing below).

  • Page 25: Installing The Activation Unit (Ma And Sa)

    VdS Shunt lock Function 3066 4.2. Installing the Activation Unit (MA and SA) You should install the activation unit (AU), no matter whether it is a master activation unit MA or slave activation unit (SA), above the door case and above the locking cylinder. In any case, the distance to other SimonsVoss components must be at least 1 m or approximately 40 inches (refer to the drawing).

  • Page 26: Vds-Compliant Installation Of The Activation Unit (Ma And Sa)

    VdS Shunt lock Function 3066 4.3. VdS-Compliant Installation of the Activation Unit (MA and SA) VdS-compliant installation must guarantee that the system can be activated from the outside, but not from the inside. This requires the following measures: 1. Use activation units with antenna extender. Shorten the color-coded cable on the...
  • Page 27 VdS Shunt lock Function 3066 4. Install the deactivation unit according to the description in Chapter 4.1. 5. You can also optionally use an activation unit without antenna extender. Install it as described in Chapter 4.2. In order to guarantee that the system can be externally activated from the outside only, you must then install a button in the outside area.

  • Page 28: Special Versions Of The Shunt Lock Function 3066

    VdS Shunt lock Function 3066 5. Special Versions of the Shunt Lock Function 3066 5.1. Operating the Activation Unit Without a Deactivation Unit If you want to activate and deactivate the burglar alarm system externally with the transponder instead of with a key, you only need a master activation unit (MA). In this case, however, you will lose the true purpose of the shunt lock function.

  • Page 29: Data Sheet

    VdS Shunt lock Function 3066 6. Data Sheet MA, SA and DA Operating voltage 8 to 16 volts DC Current consumption < 30 mA Applied relay Max. continuous current for switching output Max. switch on current Max. switching voltage 40 V AC Max.
