46
en | Appendices
11
Appendices
11.1
Connecting diagrams

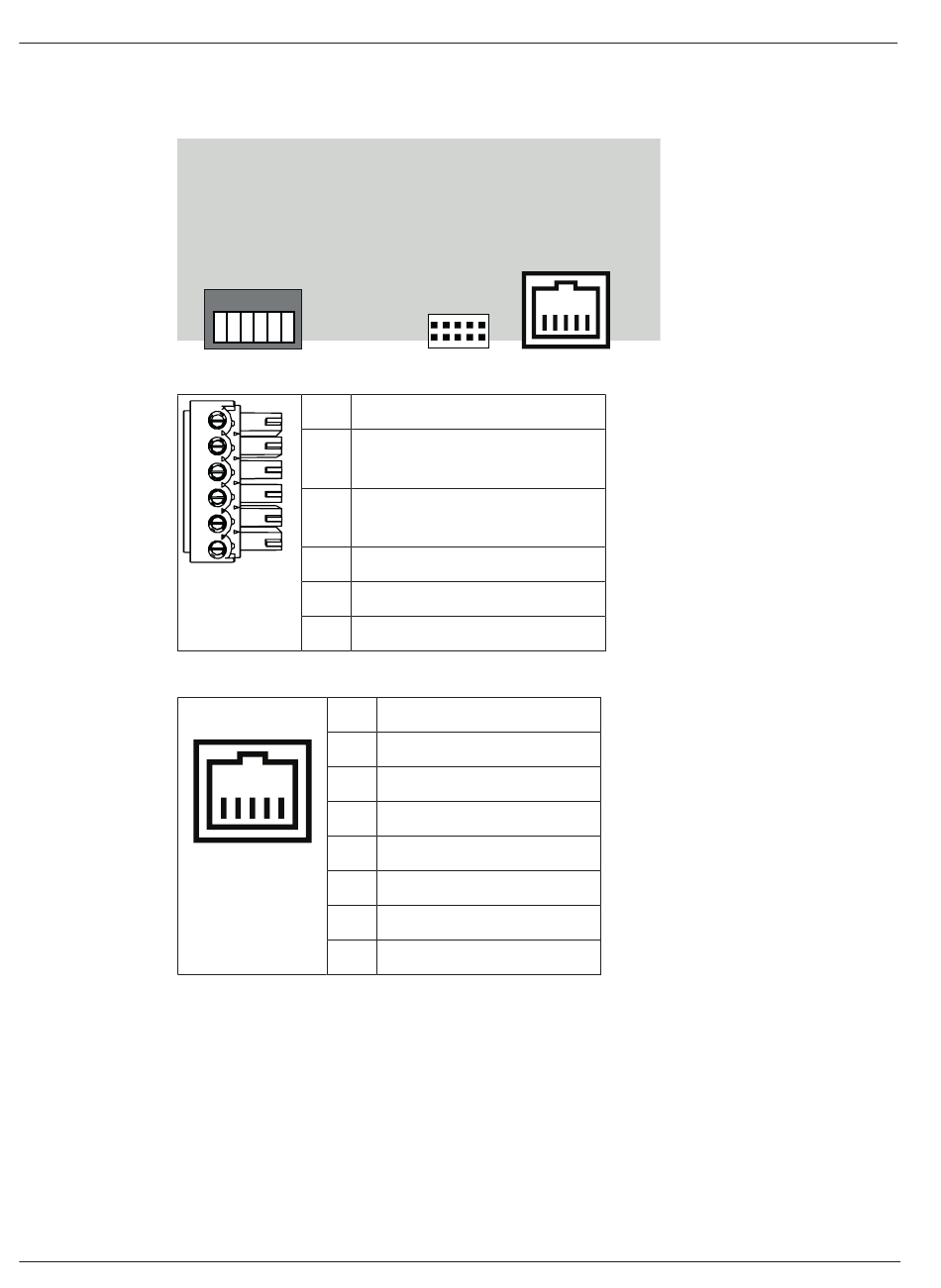

Figure 11.1: Connectors on upper PCB
Tab. 11.4: RS-485 host on upper PCB
Tab. 11.5: Ethernet Network socket (RJ45)
2021-04 | V04 | IM
RS485 Host
1 2 3 4 5 6
1
Shield
2
Data RxTx+ (2-wire)
Data Rx+ (4-wire)
3
Data RxTx- (2-wire)
Data Rx- (4-wire)
4
Ground (PAG)
5
Data Tx+ (4-wire)
6
Data Tx- (4-wire)
1
TXD+
2
TXD-
3
RXD+
8
4
1
4
Not connected
5
Not connected
6
RXD-
7
Not connected
8
Not connected
Ethernet RJ45
RS232
8
4
9
7
5
3
1
10
8
6
4
2
Installation manual
Access Modular Controller 2
1
Bosch Security Systems B.V.
