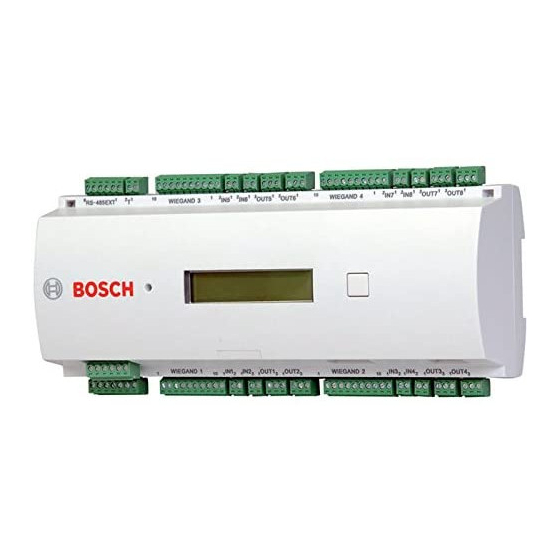

Access Modular Controller 2
API‑AMC2‑16ION
en
Installation manual

Advertisement

Table of Contents

   Related Manuals for Bosch Access Modular Controller 2

   Summary of Contents for Bosch Access Modular Controller 2

  • Page 1 Access Modular Controller 2 API‑AMC2‑16ION Installation manual...
  • Page 3: Table Of Contents

    Access Modular Controller 2 Table of contents | en Table of contents Safety Instructions Important safety notes Safety precautions Unpacking Important Information Explanation of symbols in this document Internet Introduction Description Equipment Configuration Performance Characteristics System Overview Installing Mounting Unmounting...
  • Page 4: Safety Instructions

    | Safety Instructions Access Modular Controller 2 Safety Instructions Important safety notes Read, follow, and retain instructions - All safety and operating instructions must be read and followed properly before putting the unit into operation. Retain instructions for future reference.
  • Page 5: Safety Precautions

    0°C to 50°C. Disposal Your Bosch product is designed and manufactured with high-quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.
  • Page 6: Unpacking

    Do not attempt to put the unit into operation if components are damaged. If any parts are missing, inform your customer service representative or a Bosch Security Systems salesperson. The shipping carton is the safest transport container for the unit. Store it and the other packaging material for future use.
  • Page 7: Important Information

    Bosch Security Systems retains all rights not expressly granted. Nothing in this license constitutes a waiver of Bosch’s rights under the U.S. Copyright laws or any other federal or state law. If you have any questions concerning this license, please, write to:...
  • Page 8: Introduction

    | Introduction Access Modular Controller 2 Introduction Description The AMC2-16ION board provides inputs and outputs to control doors and other components independent of access control system. Figure 3.1: The IO-Controller AMC2-16ION The AMC2-4R4 standalone board (hereafter also referred as AMC2 or controller) are deployed via a dedicated OPC-Server.
  • Page 9 Access Modular Controller 2 Introduction | en Lithium battery for buffering of static RAM and real time clock (RTC). The battery life is estimated at 10 years, nevertheless an error message is generated if the voltage sinks below a preset minimum level.
  • Page 10 | Introduction Access Modular Controller 2 Figure 3.4: Jumpers at the bottom side Jumper for setting either voltage free relay output (“dry” mode) or looped-in voltage from the AMC2 internal power supply (“wet” mode). DIL switch for setting the board address.
  • Page 11: Performance Characteristics

    Tamper contact for external covers Notice! If an external power supply is used, this should also guarantee an uninterruptable power supply (UPS). Example: Bosch power supply APS-PSU-60 (F.01U.282.970). System Overview The AMC2-4R4 is deployed as an independent controller between the management host system and various peripheral devices.
  • Page 12 | Introduction Access Modular Controller 2 Host Ethernet Access Controller AMC2-4W AMC2-4R4 AMC2-16ION I/O-Extensionboards AMC2-16IOE AMC2-8IOE AMC2-16IE Card reader Communication and power supply Depending on the kind of interface are available the following constellations are possible: – Using RS-232 host connection one AMC2-4R4 can be connected per COM port.
  • Page 13: Installing

    Access Modular Controller 2 Installing | en Installing Mounting The AMC2-4R4 can be attached on a standard 35 mm (1.377 in.) mounting rail using a snap-in mechanism. Attach the AMC2-4R4 into the upper edge of the mounting rail [1], then push down the device and snap it onto the rail by pushing it towards the back [2].
  • Page 14: Unmounting

    | Installing Access Modular Controller 2 Unmounting Notice! To remove the AMC2-4R4 from a mounting rail, first remove all pluggable connectors. Push down the AMC2-4R4 until the lower edge snaps out of the mounting rail [1]. Pull the lower end of the AMC2-4R4 from the mounting rail [2].
  • Page 15: Opening The Case

    Access Modular Controller 2 Installing | en Opening the Case Notice! To open the AMC2-4R4, first remove all pluggable connectors. The AMC2-4R4 case consists of a top cover mounted with a two-point snap-in closure on a chassis. To open the case, push down the two snap-ins with a screwdriver, then swing the cover down.
  • Page 16: Closing The Case

    [1]. Please ensure that the BOSCH logo is not upside-down. The upper edge of the front cover now aligns with the two-point snap-in closures on the upper edge of the back cover [2], and may thus be clicked gently into place.
  • Page 17 Access Modular Controller 2 Installing | en Notice! These specifications apply to power supply, readers, relay outputs, and extension interface. Regarding inputs, specific voltage-drop values need to be taken into account. Refer to Connecting Analog Input Devices, page 31. Bosch Access Systems B.V.
  • Page 18: Grounding And Shielding

    | Installing Access Modular Controller 2 Grounding and Shielding The main grounding point at the AMC2-4R4 is connected to pin 2 of the power supply connector - see Connecting Diagrams, page 41. It is good practice to shield all wires carrying low level signals.
  • Page 19: Grounding For Extension Interface

    Access Modular Controller 2 Installing | en – a party line exists and signal ground is not connected, the jumper JP2 is set at all devices (= A3) 4.6.2 Grounding for Extension Interface B 1: Delivery status B 2: Figure 4.6: Location of ground jumper bottom side Jumper B connects the internal ground of the AMC2-4R4 to the RS-485 ground of the slave interface.
  • Page 20: Connecting Power Supply

    | Installing Access Modular Controller 2 Connecting Power Supply Connect the power supply to the POWER 7-pin pluggable screw connector. Refer to Connecting Diagrams, page 41 for a complete diagram of the power supply connector. Figure 4.7: Location of the power supply connector Connect an external power supply (10 - 14 Vdc) for the AMC2 device at pin 1 (positive) and pin 3 (0 V) of the pluggable screw connector.
  • Page 21: Ethernet Host Interface

    Access Modular Controller 2 Installing | en Ethernet Host Interface The AMC2-4R4 offers a 10/100 Mbit/s Ethernet auto-sensing interface to connect to a local area network or host computer. A complete connection diagram of the Ethernet host interface is shown in chapter Connecting Diagrams, page 41.
  • Page 22: Rs-485 Host Interface

    | Installing Access Modular Controller 2 RS-485 Host Interface An RS-485 host system can consist of up to eight AMC2 controllers connected using 2- or 4- wire connection. Figure 4.8: Configuration of a RS-485 host system Host RS-232 connection RS-232 / RS-485 converter...
  • Page 23: Rs-485 Two Wire Connection

    Access Modular Controller 2 Installing | en The following conditions apply for an RS-485 bus system: – A bus system consists of a bus line and/or one or more branch lines. – Cable lengths exceeding 100 m (300 ft) must be installed as bus lines.
  • Page 24: Rs-232 Host Interface

    | Installing Access Modular Controller 2 4.10 RS-232 Host Interface The AMC2 offers an RS-232 serial interface to connect a host computer or serial modem. Notice! Risk of malfunction Cable length between two RS-232 COM serial interfaces must not exceed 15 meters (45 ft).
  • Page 25: Dil Switch Selector

    Access Modular Controller 2 Installing | en 4.11 DIL switch selector 4.11.1 Host settings DIL switches are used to configure the host settings. The first four DIL switches for address selection define the RS-485 address of the AMC2 in a RS-485 bus system. Switch 5 selects one of the two different protocols, SDEB and BPA (according to DIN6619).
  • Page 26: Board Settings

    | Installing Access Modular Controller 2 – RS-485 host connection with more than one and maximum eight AMC2s per bus Notice! Changing the type of the host connection requires a reset of the AMC2 - see Resetting the Software, page 36.
  • Page 27 Access Modular Controller 2 Installing | en Up to three expansion modules can be connected to provide additional in- and outputs, for example, for elevator control. You can find further information about the extension boards in their installation manuals. A complete connection diagram of the RS-485 extension module bus is shown in Connecting Diagrams, page 41.
  • Page 28: Connecting Relay Outputs

    | Installing Access Modular Controller 2 4.13 Connecting Relay Outputs To operate locks or alarm systems, the AMC2-4R4 has eight relay outputs. The outputs will be connected to the 3-pin pluggable screw connectors S5, S6, S10, S11, S17, S18, S22, and S23 - refer to chapter Connecting Diagrams, page 41.
  • Page 29 Access Modular Controller 2 Installing | en – Flare move 12DC1W10A – Flare move 24DC1W16A If using locally manufactured products, please ensure that the specifications of the product are identical with the those listed above. A complete connection diagram of the relay output connectors is shown in Connecting Diagrams, page 41.
  • Page 30 | Installing Access Modular Controller 2 Each relay output has a separate jumper setting on the underside of the circuit board to select dry (E1) or wet (E2) mode. Figure 4.18: Location of relay output jumpers 2020-01 | V02 | Installation manual Bosch Access Systems B.V.
  • Page 31: Connecting Analog Input Devices

    Access Modular Controller 2 Installing | en 4.14 Connecting Analog Input Devices Notice! Risk of damage to equipment Do not connect external power supply to the AMC2 inputs. When connecting a relay output to an AMC2 input use dry mode with potential-free contact - refer to Connecting Relay Outputs, page 28.
  • Page 32 | Installing Access Modular Controller 2 1500 1650 1700 1800 1900 Table 4.3: Maximum values of cable resistance per used resistor combination in Ohm 2020-01 | V02 | Installation manual Bosch Access Systems B.V.
  • Page 33: Tamper Protection

    Access Modular Controller 2 Installing | en 4.15 Tamper Protection Figure 4.20: Location of the tamper protection contact Bosch Access Systems B.V. Installation manual 2020-01 | V02 |...
  • Page 34: Operating

    | Operating Access Modular Controller 2 Operating Status Display of the AMC2 The liquid crystal display delivers status information about the AMC2-4R4. Push the 'Dialog' button to switch between different modes. Figure 5.1: Location of the ’Dialog’ button 2020-01 | V02 | Installation manual Bosch Access Systems B.V.
  • Page 35 Access Modular Controller 2 Operating | en Push Display (Example) Description V01.00 02.03.07 Software versions and date of the firmware - every 5 sec. LBUS or BG900 alternating with the display of the reader interface. S/N1: 0910019212 BOSCH serial number S/N2: 00000001 02.06 15:35:15 (S)
  • Page 36: Configuring The Ethernet Interface

    | Operating Access Modular Controller 2 Configuring the Ethernet Interface The access control system Access Personal Edition has an entry of this tool in its program folder: Start > Programs > Access Personal Edition > AmcIpConfig This tool can be copied and used on every computer on the network.
  • Page 37: Resetting The Device To Factory Default

    Access Modular Controller 2 Operating | en 5.3.2 Resetting the Device to Factory Default Figure 5.3: Resetting the AMC2 to delivery state Bosch Access Systems B.V. Installation manual 2020-01 | V02 |...
  • Page 38: Technical Data

    | Technical Data Access Modular Controller 2 Technical Data Hardware – Integrated Microcontroller (32 bit, 30 MHz) – SRAM (256 kB) – Serial EEPROM – RTC (real time clock) – Pluggable Compact Flash card – Battery for SRAM and RTC –...
  • Page 39 Access Modular Controller 2 Technical Data | en Protection class IP30 Environment temperature 13° C to 35° C (55° F to 95° F) Humidity Up to 95%, without condensation Housing material ABS with OC (UL 94 V-0) Dimensions (W/H/D) 232 x 90 x 63mm (8.9 x 3.5 x 2.5 in) Weight approx.
  • Page 40 | Technical Data Access Modular Controller 2 2020-01 | V02 | Installation manual Bosch Access Systems B.V.
  • Page 41: Appendices

    Access Modular Controller 2 Appendices | en Appendices Connecting Diagrams Figure 7.1: Connectors on upper PCB Shield Data RxTx+ (2-wire) Data Rx+ (4-wire) Data RxTx- (2-wire) Data Rx- (4-wire) Ground (PAG) Data Tx+ (4-wire) Data Tx- (4-wire) Tab. 7.4: RS-485 host on upper PCB Bosch Access Systems B.V.
  • Page 42 | Appendices Access Modular Controller 2 TXD+ TXD- RXD+ not connected not connected RXD- not connected not connected Tab. 7.5: Ethernet Network socket (RJ45) Figure 7.2: Interconnect diagram of the RS-232 serial interface 2020-01 | V02 | Installation manual Bosch Access Systems B.V.
  • Page 43 Access Modular Controller 2 Appendices | en Figure 7.3: Connector blocks of the AMC2-16ION Power supply, DC positive (10V - 30V) Shield Power supply (0V) UPS (power good signal) - AC UPS (power good signal) - Battery UPS (power good signal) - DC UPS (power good signal) - Common Tab. 7.6: Power supply...
  • Page 44 | Appendices Access Modular Controller 2 Relay Output, normally closed Tab. 7.8: Relay output Power supply for external devices (10V - 30V) Power supply for external devices (0V) Shield Data RxTx+ Data RxTx- Ground (PAG) Tab. 7.9: Host / Extension interface...
  • Page 45: Index

    Access Modular Controller 2 Index | en Index  8, 11, 25 display  34 Ethernet host interface  11 Ethernet interface  21 extension interface  19, 38 extension interfade  26 grounding  18 host interfaces  11, 22, 38 I/O board  26 inputs  11, 38...
  • Page 46 | Index Access Modular Controller 2 2020-01 | V02 | Installation manual Bosch Access Systems B.V.
  • Page 48 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2020...
