Closing the case
Before aligning the covers, unplug any pluggable screw connectors. Insert the hooks on the
lower edge of the front cover into the lugs on lower edge of the plastic back cover [1]. Please
ensure that the BOSCH logo is not upside-down. The upper edge of the front cover now aligns
with the two-point snap-in closures on the upper edge of the back cover [2], and may thus be
clicked gently into place.
Hence the closing process is the reverse of the opening process.

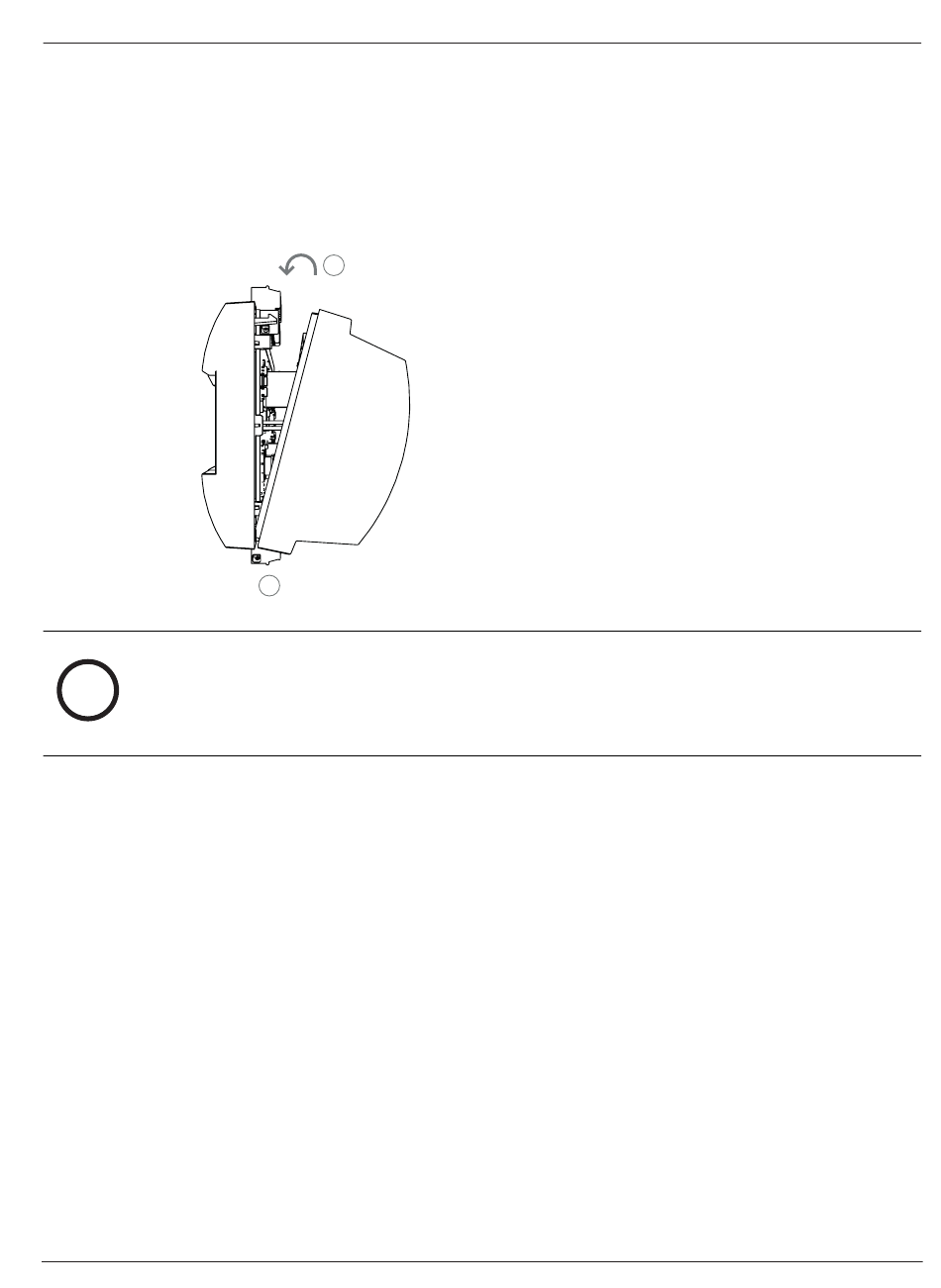

Figure 4.4: Closing the case
Notice!
Risk of damage to equipment
i
If excessive force is required to close the front cover then it is probably incorrectly hooked
into the back cover. In such cases the display dialog button in the front cover will be
misaligned and will not function correctly.
Bosch Security Systems B.V.
2
1
Installation manual
Installing | en
17
2021-04 | V04 | IM
