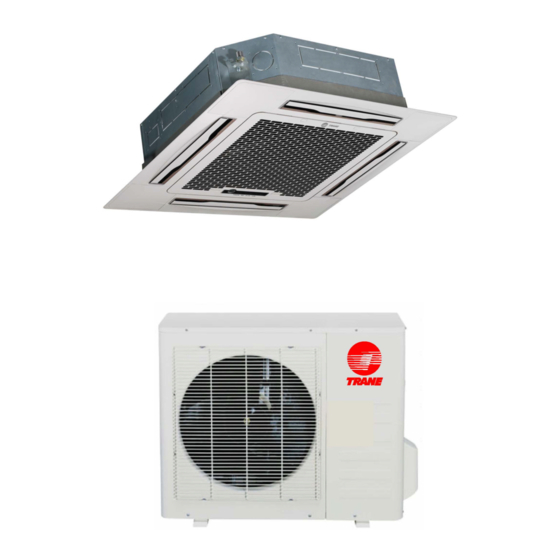

Trane 18, 24, 30, 36, 24, 42, 48 Installation Manual
  1. Manuals
  2. Brands
  3. Trane Manuals
  4. Air Conditioner
  5. 18, 24, 30, 36, 24, 42, 48
  6. Installation manual

Trane 18, 24, 30, 36, 24, 42, 48 Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 18, 24, 30, 36, 24, 42, 48 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Trane 18, 24, 30, 36, 24, 42, 48

Summary of Contents for Trane 18, 24, 30, 36, 24, 42, 48

  • Page 2: Table Of Contents

    Install according to this installation instructions strictly. If installation is defective, it will cause water leakage, electrical shock and fire. CONTENTS PAGE When installing the unit in a small room, take measures against to keep refrigerant concentration from exceeding allowable safety limits in the event of refrigerant leakage. PRECAUTIONS..................1 Contact the place of purchase for more information.

  • Page 3: Installation Information

    2. INSTALLATION INFORMATION If the refrigerant leaks during installation, ventilate the area immediately. Toxic gas may be produced if the refrigerant comes into the place contacting with fire. To install properly, please read this "installation manual" at The temperature of refrigerant circuit will be high, please first.

  • Page 4: Attached Fittings

    3. ATTACHED FITTINGS Please check whether the following fittings are of full scope. If there are some spare fittings , please restore them carefully . NAME SHAPE QUANTITY 1. Expansible hook 2. Installation hook INSTALLATION FITTINGS 3. Installation paper board 4.

  • Page 5: Inspecting And Handling The Unit

    4. INSPECTING AND HANDLING THE UNIT 5.3 Install the main body At delivery, the package should be checked and any damage should The existing ceiling (to be horizontal) be reported immediately to the service agent. Cut a quadrangular hole of 880x880mm in the ceiling When handling the unit, take into account the following: according to the shape of the installation paper board.
  • Page 6 FIGURES 1 Connecting point of refrigerant pipe Connecting point of drain pipe (Liquid side ØC) Tubing side Drain side Connecting point of refrigerant pipe (Gas side ØB) Ceiling Panel Outlet Inlet Outlet 880mm (ceiling hole) Ground Fig.5-2 780(Hook-location) (Unit: mm) Table 5-1 840(Body) MODEL...
  • Page 7 FIGURES 2 body outlet foam Ceiling Tubing joint Hook panel Outlet joint Water-receiver panel sponge panel panel foam 2 panel foam1 air out Swing Motor Fig.5-13 Loosen upper nut Hook-bolt Cross-screwdriver Fig.5-12 Gap not allowed Adjust lower nut Fig.5-15 Leakage Ceiling Lean over 1/50 1-1.5m...
  • Page 8 5.4 Install The Panel Adjust the four panel hook screws to keep the panel horizontal, and screw them up to the ceiling evenly. ( Refer to Fig.5-12.3) CAUTION Regulate the panel in the direction of the arrow in Fig.5-12.4 slightly to fit the panel's center to the center of the ceiling's Never put the panel face down on floor or against the opening.

  • Page 9: Outdoor Unit Installation

    6. OUTDOOR UNIT INSTALLATION NOTE model 18 to 24 Series A=350mm; Series B=85mm 6.1 Installation Place model 30 to 48 Series A=350mm; Series B=155mm The outdoor unit should be installed in the location that meets the following requiements: There is enough room for installation and maintenance. The air outlet and the air inlet are not impeded, and can not be reached by strong wind.
  • Page 10 6.2 Figure of body size 1. Split type outdoor unit Fig.6-4 Fig.6-2 Table 6-1 MODEL REMARK R410A (Fig.6-2) 30~36 B TYPE R410A (Fig.6-2) condioner (Fig.6-2) 1245 condioner (Fig.6-3) (Fig.6-2) 1245 R410A (Fig.6-3) B TYPE 1167 R410A (Fig.6-3) Fig.6-3 installation manual...

  • Page 11: Install The Connecting Pipe

    6.5 Moving and installation 7. INSTALL THE CONNECTING PIPE Since the gravity center of the unit is not at its physical center, so please be careful when lifting it with a sling. Check whether the height drop between the indoor unit and Never hold the inlet of the outdoor unit to prevent it from outdoor unit, the length of refrigerant pipe, and the number of deforming.
  • Page 12 Connect the indoor unit at first, then the outdoor unit. CAUTION Be sure to with insulating materials cover all the exposed Bend the tubing in proper way. Do not harm to them. parts of the flare pipe joints and refrigerant pipe on the Bend the pipe with thumb liquid-side and the gas-side.
  • Page 13 Table 7-4 Additional Refrigerant Charge Tightening torque N M (Turn clockwise to close) Stop Shaft (valve body) Maintenance nut Valve size (Valve lid) CAUTION Ø6.4 13.5 16.5 Hexagonal Ø9.5 wrench 4 mm Refrigerant cannot be charged until field wiring has been Ø12.7 18 22 completed.

  • Page 14: Connect The Drain Pipe

    If the outlet of the drainpipe is higher than the body's pump Table7-6 joint, the pipe should be arranged as vertically as possible. MODEL And the lift distance must be less than 200mm, otherwise the Unit water will overflow when the air conditioner stops. (Refer to 18~24 1200 Fig.5-18 in the figure page)

  • Page 15: Installation Of Flange And Duct

    9. INSTALLATION OF FLANGE AND DUCT Installation Type 2 The hole is oppose to refrigerant pipe Fresh air is intaken by indoor fan motors or ductable fan motor Refrigerant Pipe devices on field. The positions of fresh air intake can be Drainage pipe changed according to the installation of ductable fan motor.

  • Page 16: Wiring

    10. WIRING Use screw 2 (M4X12, 4 Pieces) to install flange at the hole, and then stick insulation material 3. Flange 1 The appliance shall be installed in accordance with national wiring regulations. The air conditioner should use separate power supply with rated voltage.

  • Page 17: Test Operation

    11. TEST OPERATION 1. Split type outdoor unit The test operation must be carried out after the entire installation has been completed. Cover Please confirm the following points before the test operation: The indoor unit and outdoor unit are installed properly. Tubing and wiring are correctly completed.
  • Page 18 The Specification of Power (For Side Air Outlet Outdoor Unit) Table 10-1 30~36 MODEL (For R22, Heating&Cooling) (For R22 and R410A, (For R22, Heating&Cooling) (For R410A, Heating&Cooling) Heating&Cooling) 1-PHA S E 1-P HAS E PHASE POWER 22 0-240 V~ 50 Hz 220 -2 40V ~ 50Hz FREQUENCY AND VOLT 30/25...
  • Page 19 Table 10-4 30~48 36~48 MODEL (For R22 and R410A ,Cooling only ) (For R410A ,Cooling only ) (For R22 ,Cooling only ) 3-PHA S E PHASE POWER 380-415V 3N~ 50 Hz FREQUENCY AND VOLT 20/15 25/15 CIRCUIT BREAKER/FUSE(A) 5x1.5 5x2.5 INDOOR UNIT POWER WIRING(mm GROUND WIRING INDOOR/OUTDOOR...
  • Page 20 The Specification of Power (For T Condition) Table 10-7 50Hz Spilt Type 36~48 MODEL (For R22, Cooling& Heating) (For R22,Cooling& Heating) (For R22, Cooling& Heating) (For R22, Cooling& Heating) 1-PHA S E 1-PHA S E 1-PHA S E 3-PHA S E PHASE POWER 22 0-24 0 V~ 50Hz...
  • Page 21 CAUTION The wiring chart of both cooling only type and cooling& heating type in R22 and R410A series are shown as follows.When wiring, please choose the corresponding figure,or it may cause damage. Fig.10-5 Power Switch/Fuse Power linking wiring (Indoor) Power linking wiring ( Outdoor) Indoor Unit Outdoor...
  • Page 22 Fig.10-7 INDOOR UNIT POWER: 220-240V~ 50Hz (3-core cable 3×2.5mm 4-core cable 4×2.5 mm MODEL 18 (1 PHASE,50Hz) Air Conditioner Link-circuit (For R22 , Cooling only) Fig.10-8 INDOOR UNIT 1 plug POWER: 208-230V~ 60Hz 3-core Cable RVV300/500 3×2.5 mm H05RN 5×2.5 mm 2-core sheild wire 2×0.5 mm MODEL 18 (1 PHASE,60Hz)
  • Page 23 Fig.10-9 INDOOR UNIT I plug POWER: 220V~ 60Hz 3-core Cable RVV300/500 3×2.5 mm H05RN 4×2.5 mm 2-core sheild wire 2×0.5 mm Air Conditioner Link-circuit MODEL 18 (1 PHASE,60Hz) (For R22 , Cooling only) Fig.10-10 INDOOR UNIT POWER: 220-240V~ 50Hz OR 208-230V~60Hz 3-core Cable 3×2.5 mm 1-core shield wire...
  • Page 24 Fig.10-11 INDOOR UNIT 1-core sheild wire POWER: 1×0.5 mm 220-240VAC~ 50Hz (3-core cable 3×4.0mm 3-core cable 3×4.0 mm 3-core cable 3×2.5 mm MODEL 24 (1 PHASE,50Hz) Air Conditioner Link-circuit (For R22 and R410A, Heating & Cooling) Fig.10-12 INDOOR UNIT POWER: 380-415V 3N~ 50Hz (5-core cable 5×1.5mm...
  • Page 25 Fig.10-13 INDOOR UNIT POWER: 220-240V~ 50Hz (3-core cable 3×2.5mm 1-core cable 1×1.5 mm 3-core cable 3×2.5 mm MODEL 24 (1 PHASE,50Hz) Air Conditioner Link-circuit (For R22 and R410A, Cooling only) Fig.10-14 INDOOR UNIT POWER: 4-core cable 380-415V 3N~ 50Hz 4×1.0 mm (5-core cable 5×1.5mm 2-core sheild wire...
  • Page 26 Fig.10-15 INDOOR UNIT POWER: 208-230V~ 60Hz 3-core Cable 3×2.5 mm 3-core Cable 3×2.5 mm 4-core Cable 4×2.5mm 2-core sheild wire 2×0.5 mm MODEL 24 (1 PHASE,60Hz) (For R22 , Heating & Cooling) Air Conditioner Link-circuit (For R22 , Heating & Cooling&PTC) Fig.10-16 INDOOR UNIT POWER:...
  • Page 27 Fig.10-17 INDOOR UNIT POWER: 220-240V~ 50Hz 1-core shield wire OR 208-230V~60Hz 1×0.5 mm 3-core Cable 3×2.5 mm 4-core Cable 4×0.75 mm 3-core Cable 3×2.5 mm MODEL 24 T (1 PHASE,50/60Hz) Air Conditioner Link-circuit (For R22 and R410A, Heating & Cooling) Fig.10-18 INDOOR UNIT 1-core sheild wire...
  • Page 28 Fig.10-19 INDOOR UNIT POWER: 380-415V 3N~ 50Hz (5-core cable 5×2.5mm 5-core cable 5×2.5 mm 3-core cable 3×1.0 mm MODEL 30~48 (3 PHASE,50Hz) (For R410A, Heating & Cooling) Air Conditioner Link-circuit MODEL 36~48 (3 PHASE,50Hz) (For R22, Heating & Cooling) Fig.10-20 INDOOR UNIT POWER: 220-240V~ 50Hz...
  • Page 29 Fig.10-21 INDOOR UNIT POWER: 380V 3N~ 50Hz (5-core cable 5×2.5mm 5-core cable 5×2.5 mm 1-core cable 1×1.0 mm MODEL 36~48 (3 PHASE,50Hz) (For R22 , Cooling only) Air Conditioner Link-circuit MODEL 30~48 (3 PHASE,50Hz) (For R410A, Cooling only) Fig.10-22 INDOOR UNIT POWER: 220-240V~ 50Hz OR 208-230V~60Hz...
  • Page 30 Fig.10-23 INDOOR UNIT POWER: 308V 3N~ 50Hz OR 208-230V 3N~ 60Hz 5-core Cable 5×2.5mm 5-core Cable 5×2.5 mm 4-core Cable 4×0.75 mm MODEL 36~48 (3 PHASE,50/60Hz) Air Conditioner Link-circuit (For R22, Heating & Cooling) Fig.10-24 INDOOR UNIT 3-core Cable 3×2.5 mm POWER: 380V~3N 60Hz 5-core Cable RVV300/500...
  • Page 31 Fig.10-25 INDOOR UNIT POWER: 1-core Cable 380V~3N 60Hz 1×2.5 mm 5-core Cable H07RN 5×2.5mm 5-core Cable H07RN 5×2.5 mm MODEL 42 (3 PHASE,60Hz) (For R22 , Cooling only) Air Conditioner Link-circuit Fig.10-26 INDOOR UNIT POWER: 208-230V~60Hz 3-core Cable 3×6.0 mm 3-core Cable 3×6.0 mm 4-core Cable...
  • Page 32 Fig.10-27 380-415 3X2.5 60000Btu/h B type(3-phase) Air Condition Link-Circuit For R410A,heating&cooling installation manual...
