- Page 1 XTE PTS Series PEIL/PESB Power Transfer Switches Description and Installation Manual...
- Page 2 Vertiv™ XTE PTS Series PEIL/PESB Power Transfer Switches Description & Installation Manual The information contained in this document is subject to change without notice and may not be suitable for all applications. While every precaution has been taken to ensure the accuracy and completeness of this document, Vertiv assumes no responsibility and disclaims all liability for damages resulting from use of this information or for any errors or omissions.
-
Page 3: Table Of Contents
Vertiv™ XTE PTS Series PEIL/PESB Power Transfer Switches Description & Installation Manual TABLE OF CONTENTS Admonishments Used in this Document .......................... v Important Safety Instructions ............................vi 1 About this Document ................................ 1 2 Description ................................... 1 2.1 Application ......................................................1 2.2 Cabinet Dimensions .................................................. - Page 4 Vertiv™ XTE PTS Series PEIL/PESB Power Transfer Switches Description & Installation Manual 10 DC Power, Outdoor Enclosure & Service Contacts ....................16...
-
Page 5: Admonishments Used In This Document
Vertiv™ XTE PTS Series PEIL/PESB Power Transfer Switches Description & Installation Manual Admonishments Used in this Document will likely DANGER! Warns of a hazard the reader be exposed to that will result in death or serious injury if not avoided. (ANSI, OSHA) -
Page 6: Important Safety Instructions
Vertiv™ XTE PTS Series PEIL/PESB Power Transfer Switches Description & Installation Manual Important Safety Instructions Safety Admonishments Definitions Definitions of the safety admonishments used in this document are listed under “Admonishments Used in this Document” on page v. You Must Follow Approved Safety Procedures DANGER! Performing the following procedures may expose you to hazards. -
Page 7: About This Document

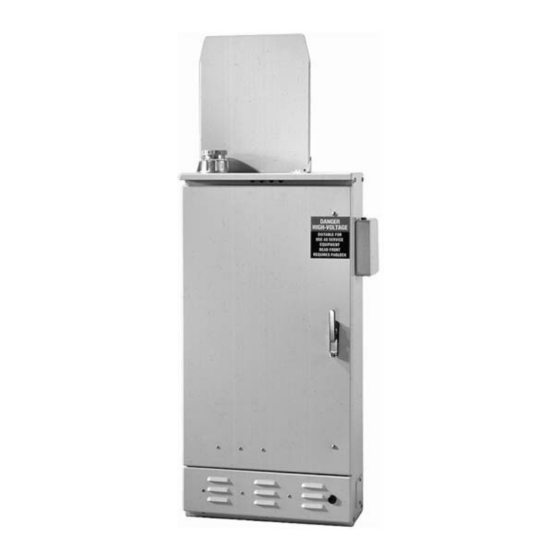

2 Description 2.1 Application The XTE PTS Series PEIL/PESB Power Transfer Switches (shown in Figure 1 and Figure 2) provide weatherproof housing and surge protection for the electrical components that transfer/distribute commercial and generator power. They have a wide range of standard features and options to suit a variety of applications. -
Page 8: Cabinet Dimensions
When a meter is added, the height from the bottom of the cabinet to the top of the meter is 6011/16 inches (154.1 cm). 2.3 Construction The XTE PTS Series PEIL/PESB Power Transfer Switches are manufactured from heavy gauge aluminum finished with a durable paint process that meets Telcordia specifications for protection against corrosion, water intrusion, ultraviolet radiation, and impact... -
Page 9: Pad Mounting
2.4 Pad Mounting The XTE PTS Series PEIL/PESB Power Transfer Switches may be mounted directly to a concrete pad. A metal mounting template is available that can be used to orient the mounting bolts and incoming and outgoing power conduit in the pad. - Page 10 Vertiv™ XTE PTS Series PEIL/PESB Power Transfer Switches Description & Installation Manual Figure 3: Example of Internal Wiring of a Power Transfer Cabinet...
-
Page 11: Site Selection And Preparation
3 Site Selection and Preparation 3.1 Site Selection Considerations Consider the following when choosing a location for a XTE PTS Series PEIL/PESB Power Transfer Switch. 3.2 Equipment Life Span A permanent location is desirable. Your planning and the hardware used should accommodate at least a thirty-year life. -
Page 12: Grounding Standards
Local Practices A XTE PTS Series PEIL/PESB Power Transfer Switch may be installed on a separate concrete or preformed fiberglass pad or on a remote terminal pad. This practice provides instructions for constructing a typical concrete pad. However, you may vary your construction methods to comply with local conditions, practices, or building codes. - Page 13 Vertiv™ XTE PTS Series PEIL/PESB Power Transfer Switches Description & Installation Manual Figure 4: Metal Mounting Template 3.704 in. (9.408 cm) 7.408 in. 1 hole (18.816 cm) 0.375 in. (9.5 mm) through and in line 0.375 in. (9.5 mm) 1 in./2.54 cm (TYP)
-
Page 14: Constructing The Pad
Vertiv™ XTE PTS Series PEIL/PESB Power Transfer Switches Description & Installation Manual 6.2 Constructing the Pad Stages of Construction • The construction of the pad is performed in the following stages: • Preparing the Site • Preparing to Pour the Concrete, •... - Page 15 Vertiv™ XTE PTS Series PEIL/PESB Power Transfer Switches Description & Installation Manual Figure 5: Conduits No. 66-44 wire mesh or equivalent approximately 5 in. (13 cm) approximately 3 in. (8 cm) grade 6 in. (15.24 cm) utility service conduit exiting...
- Page 16 Vertiv™ XTE PTS Series PEIL/PESB Power Transfer Switches Description & Installation Manual Figure 7: Mounting Template Installation 3-inch (7.6 cm) hole for 2 -inch (6.4 cm) incoming power company service conduit for the RPEIL Series cabinet 3-inch (7.6 cm) hole for 2 -inch (6.4 cm)
-
Page 17: Mounting The Cabinet On The Pad
Vertiv™ XTE PTS Series PEIL/PESB Power Transfer Switches Description & Installation Manual NOTE! The 3-inch (7.6 cm) hole at the back-left side of the template is used for incoming power conduit for RPEIL-series cabinets. The 3-inch (7.6 cm) hole at the back-right side of the template is used for incoming power conduit for the PEIL- series cabinets. -
Page 18: Mounting The Cabinet On A Pole
Make sure that there is enough clearance to maintain the minimum bend radius of the cable to be installed. 7.3 Pole Installation Perform the following steps to install a XTE PTS Series PEIL/PESB Power Transfer Switch on a pole using a standard pole-mount kit: Unpack the pole-mount kit and the cabinet. - Page 19 Vertiv™ XTE PTS Series PEIL/PESB Power Transfer Switches Description & Installation Manual NOTE! Mounting hardware is not provided. You must supply two 1/2-inch (1.27 cm) bolts suitable for the pole size. Dispose of the packaging according to local practices. Place the pole-mount channel in the mounting position on the pole.
-
Page 20: Mounting The Cabinet On A Wall
8.2 Wall Installation Perform the following steps to install a XTE PTS Series PEIL/PESB Power Transfer Switch on a wall: Unpack the cabinet. Verify that the loose parts kit contains the following components: two 1/2-inch (1.3 cm) sealing washers, and... -
Page 21: Meter Options
Vertiv™ XTE PTS Series PEIL/PESB Power Transfer Switches Description & Installation Manual Tighten the bolts. Figure 9: Wall-Mount Kit -inch (1.3 cm) sealing washers (2) -inch (1.3 cm) knockouts (4) -inch (1.3 cm) flat washers (2) solid bottom front view 9 Meter Options 9.1 Factory-Installed Meters... - Page 22 Vertiv™ XTE PTS Series PEIL/PESB Power Transfer Switches Description & Installation Manual 10 DC Power, Outdoor Enclosure & Service Contacts CUSTOMER SERVICE (PRE-SHIPMENT) Email CustomerService.ESNA@Vertiv.com Call Customer Service for purchase order status, expediting requests and order tracking. Phone 1.800.800.1280 option 1...
- Page 23 Vertiv™ XTE PTS Series PEIL/PESB Power Transfer Switches Description & Installation Manual Connect with Vertiv on Social Media https://www.facebook.com/vertivI https://www.instagram.com/vertiv/ https://www.linkedin.com/company/vertiv/ https://www.twitter.com/vertiv/...
- Page 24 Vertiv.com | Vertiv Headquarters, 1050 Dearborn Drive, Columbus, OH, 43085, USA © 2020 Vertiv Group Corp. All rights reserved. Vertiv™ and the Vertiv logo are trademarks or registered trademarks of Vertiv Group Corp. All other names and logos referred to are trade names, trademarks or registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness here, Vertiv Group Corp.
