3004513-2016-01-14

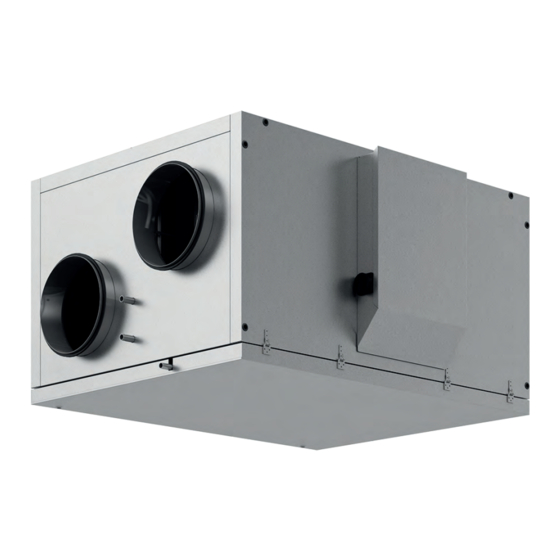

VEX140 Ceiling HCW

with EXact2 control

Product information........................................Chapter 1 + 6

Mechanical assembly.....................................Chapter 2 + 3

Electrical installation.......................................Chapter 4

Maintenance...................................................Chapter 5

EXHAUSTO A/S

Odensevej 76

DK-5550 Langeskov

Tel. +45 65 66 12 34

Fax +45 65 66 11 10

exhausto@exhausto.dk

www.exhausto.dk

VEX140C_HCW

Unit supplied with (factory fitted):

Crossflow heat exchanger with standard

temperature efficiency

Crossflow heat exchanger with high

temperature efficiency

Airflow control, AFC

VDI 6022

Filter control, MPTF

Pressure based ice detection, DEP

M5-compact filter, FP

F7-compact filter, FP

The following accessories are supplied

separately:

pieces, control panel, HMI

Motor valve, MVM ______K

Closing damper, LS315-24, (LSA exhaust)

Closing damper, LS315-24, (LSF outdoor)

Closing damper, LSR315-24, with

spring-return (LSAR exhaust)

Closing damper, LSR315-24, with

spring-return (LSFR outdoor)

pieces, Fire thermostat, BT40

pieces, Fire thermostat, BT50

pieces, Fire thermostat, BT70

pieces, Constant pressure control, MPT-DUCT

Motion sensor, MIO-PIR

Humidity sensor, MIO-RH

-sensor, MIO-CO2-DUCT

-sensor, MIO-CO2-ROOM

Temperature sensor, MIO-TS-DUCT

Temperature sensor, MIO-TS-ROOM

Control for external cooling unit, MXCU

Suspension clamps

TS-RPT-X

Prod.order no.:

Sales order no.:

Original instructions

-value

Table of Contents

Need help?

Do you have a question about the VEX140 and is the answer not in the manual?

Questions and answers

Summary of Contents for Exhausto VEX140

Page 1 VEX140C_HCW 3004513-2016-01-14 VEX140 Ceiling HCW with EXact2 control Unit supplied with (factory fitted): Crossflow heat exchanger with standard temperature efficiency Crossflow heat exchanger with high temperature efficiency Airflow control, AFC VDI 6022 Filter control, MPTF Pressure based ice detection, DEP...
Page 2: Table Of Contents
3004513-2016-01-14 1. Product information 1.1. Designations used in these instructions.............6 Simplified diagram....................6 1.2. Application......................7 1.3. Location requirements..................7 1.3.1. Space requirements..................7 1.3.2. Ceiling requirements..................8 1.3.3. Condensation outlet..................8 1.3.4. Requirements for duct system.................8 1.4. Description......................9 1.4.1. Construction of the VEX unit................9 1.4.2. Parts of the VEX unit..................10 1.5.
Page 3 3004513-2016-01-14 6.3. Water heating system..................32 6.3.1. MVM motor valve ..................32 6.4. Capacity diagram....................33 6.5. Ordering spare parts...................33 6.6. Environmental declaration..................33 3/36...
Page 4 Scope This instruction manual is for use with EXHAUSTO VEX-type air handling units. Please refer to the product instructions regarding accessories and extra equipment. The instructions must be fully observed to ensure personal safety and to protect the equipment and ensure its correct operation.
Page 5 VEX. Rating plate The VEX unit rating plate shows: ● VEX unit, type (1) ● production number (2) Always have the production number ready when contacting EXHAUSTO A/S. 5/36...
Page 6: Product Information
Product information 3004513-2016-01-14 1. Product information 1.1 Designations used in these instructions Simplified diagram Component Function Standard/accessory Water heating coil Standard TE-RPT Temperature sensor in return pipe from wa- Standard ter heating coil (internal) MPT1, P1 Airflow control, extract air Accessories MPT1, P2 Airflow control, supply air...
Page 7: Application
1.2 Application Comfort ventilation EXHAUSTO VEX is used for comfort ventilation tasks. Operating temperature range for the unit - see section "Technical data". Prohibited uses The VEX unit is not to be used to transport solid particles or in areas where there is a risk of explosive gases.
Page 8: Ceiling Requirements
● heating/cooling losses Condensation Condensation in the ducts may occur when the exhaust/outdoor air has high hu- midity. EXHAUSTO recommends a condensation outlet is also fitted at the lowest point in the ducts. Outdoor air intake The outdoor air intake must be dimensioned with sufficiently low airflow to prevent rain and snow being drawn into the duct system.
Page 9: Description
Product information 3004513-2016-01-14 1.4 Description 1.4.1 Construction of the VEX unit The following drawings show an overview of the construction of left and right-hand models of VEX units (shown without door). 20 21 2,1,A 1,2,A 2,2,A 1,1,A Left 2,1,A 1,2,A 2,2,A 1,1,A Right...
Page 10: Parts Of The Vex Unit
Product information 3004513-2016-01-14 Pos. Part Function Safety fittings Ensures that the filter is kept in position when the door is opened. Bypass damper with motor For operation with heat recovery, the bypass damper is closed so that the air passes through the crossflow heat exchanger. For bypass operation, the damper is open, and the air bypasses the heat exchanger.
Page 11: Principal Dimensions
Product information 3004513-2016-01-14 1.5 Principal dimensions VEX140C, Left The following drawing gives the principal dimensions: 2,1,B 1,2,B 2,1,A 1,2,A 1,1,A ø16/ø18 2,2,A 1,1,B 2,2,B 95** 1,2,A 2,1,A 1,1,A 2,2,A 1426 2,2,B 1,1,B 1,1,A 2,2,A Seen from above ½" 1,2,A 2,1,A 1,2,B 2,1,B The drawing shows all of the spigot positioning options.
Page 12 Product information 3004513-2016-01-14 VEX140C, Right The following drawing gives the principal dimensions: 1,2,B 1,2,A 2,1,B 2,1,A 2,2,A ø16/ø18 1,1,A 2,2,B 1,1,B 95** 1,2,A 2,1,A 1,1,A 2,2,A 1426 1,1,B 2,2,B 1,1,A 2,2,A Seen from above ½" 1,2,A 2,1,A 2,1,B 1,2,B The drawing shows all of the spigot positioning options. * Allow a distance for service in front of the unit equivalent to the unit depth.
Page 13: Handling
Handling 3004513-2016-01-14 2. Handling 2.1 Unpacking Supplied compo- The following components are supplied: ● VEX unit nents ● Supplied accessories (as indicated in the checklist on the front page of the in- structions). Packaging The unit is delivered on a disposable pallet and packed in clear plastic. Once the plastic has been removed, the unit must be protected against dirt and dust: ●...
Page 14: Passage Through Openings
Handling 3004513-2016-01-14 Method Drawing Using pallet truck or fork-lift truck: Lift the VEX unit on the disposable pallet. IMPORTANT: If the dis- posable pallet cannot be used, the forks on the lifting equipment must be long enough to prevent damage to the bottom of the unit.
Page 15: Internal Transport With Reduced Weight
Handling 3004513-2016-01-14 2.2.2 Internal transport with reduced weight Removing the serv- To remove the service door: ● Release the screws. ice door ● Open the door and lift it off. Weight reduction The weight can be reduced during transport by removing service doors, fans and crossflow heat exchanger.
Page 16 Handling 3004513-2016-01-14 To remove the fan unit Step Action Remove the fixing screws from the sliding rails, and release the ties on the motor cable. Pull the fan unit out to the stop (three screws) on the sliding rail. Dismount the motor cable from the motor control on the sliding panel and pull it towards the motor through the rubber grommets.
Page 17: Mechanical Assembly
Mechanical assembly 3004513-2016-01-14 3. Mechanical assembly 3.1 Installation Description It is important that the VEX is suspended horizontally (max. +/- 3 mm per metre), as this affects the collection and draining of the condensate. 3.2 Installation of ceiling unit 3.2.1 Mounting on ceiling Dimensioning Fixings for mounting the VEX unit on the ceiling must be dimen- sioned to take the weight of the VEX (190 kg).
Page 18: Transport Protection, Motor Section
Mechanical assembly 3004513-2016-01-14 3.2.2 Transport protection, motor section Remove the transport protection (two red screws) from each motor section, after mounting the VEX on the ceiling. DETAIL A DETAIL A 3.2.3 Removal of crossflow heat exchanger Warning Do not open the service door before the supply voltage has been disconnected at the isolation switch.
Page 19: Condensation Outlet
Mechanical assembly 3004513-2016-01-14 3.3 Condensation outlet Drain the condensation outlet into a floor gully or similar. The con- densation outlet must be fitted with a water trap. See below. Risk of frost Where there is a risk of frost: Insulate the condensation outlet and protect it against frost - if necessary, using a heating cable.
Page 20 Mechanical assembly 3004513-2016-01-14 Type Principle Simplified diagram Mixing Variable flow in the primary cir- loop 1 cuit (supply) and constant flow in secondary circuit (VEX unit) Mixing Variable flow in the primary cir- loop 2 cuit (supply) and constant flow in secondary circuit (VEX unit) a) When there is no heating re- quirement, valve adjustment...
Page 21: Mvm Valve
I - AB Pressure difference regulator* Impurity trap* *) not EXHAUSTO delivery (refer to the technical specifications in section 7). Bleeding Following connection of water supply to the unit: ● Bleed the system thoroughly using the upper bleed screw on the water heating...
Page 22 Mechanical assembly 3004513-2016-01-14 1. With no heat requirement, the MVM valve runs at 0%. 2. The circulation pump will then run for a further 5 min and stop. 3. EXact control will start a 24 hour timer. 4. When the 25 hours are over, the circulation pump will exercise for 5 min. 5.
Page 23: Electrical Installation
3004518-2013-02-07 Guide to Electrical Installation of VEX140H-V-C with water heating coil and EXact2 Electrical installation........Chapter 1 + 2 Original instructions EXHAUSTO A/S Tel. +45 65 66 12 34 Odensevej 76 Fax +45 65 66 11 10 DK-5550 Langeskov exhausto@exhausto.dk www.exhausto.dk...
Page 24: Maintenance, Hygiene And Servicing
1111) to check the unit’s operating status. 5.2 Maintenance 5.2.1 Overview of maintenance intervals The following chart details the recommended maintenance intervals for the VEX. based on normal operation. EXHAUSTO recommends maintenance is adjusted to suit the actual operating requirements. Component Procedure...
Page 25: Hygiene (Vex100Vdi Only)
● EUROVENT certification is only valid if original filters are used ● Use of non-original filters may cause leakage in the VEX and impair filter func- tion ● EXHAUSTO recommends that you register the filter replacement date to ensure filters are replaced at the correct intervals 5.3 Hygiene (VEX100VDI only)
Page 26: Cleaning The Heating Coils
Maintenance, hygiene and servicing 3004513-2016-01-14 5.4.3 Cleaning the heating coils Step Action Switch off the power supply to the unit at the isolation switch before opening the doors. Vacuum clean the heating coil Check that the fins on the heating coil are not deformed. The fins are sharp.
Page 27: Cleaning The Crossflow Heat Exchanger
Maintenance, hygiene and servicing 3004513-2016-01-14 5.4.4 Cleaning the crossflow heat exchanger Step Action Switch off the power supply to the unit at the isolation switch before opening the door. remove the baffle plate for condensate. Remove the plug from the bypass motor. Hold down the split pin under the plug with a screw driver, see photos: Dismount the Tice sensor from the heat exchanger bracket (see photo step 12).
Page 28 Maintenance, hygiene and servicing 3004513-2016-01-14 Step Action Fix the safety cable and push the locking bracket into place. Mount the Tice sensor. It is important to check that the Tice sensor is cor- rectly positioned between the heat exchanger fins, as the sensor will not measure correctly otherwise.
Page 29: Technical Data
Technical data 3004513-2016-01-14 6. Technical data 6.1 Weight, corrosion class, temperature ranges, etc. Weight VEX total weight 192 kg Door 27 kg Crossflow heat exchanger 27 kg Fan unit 2 x 16.5 kg VEX for transporting into building (without doors, heat exchanger 105 kg and fan unit) Corrosion class...
Page 30 Technical data 3004513-2016-01-14 Motor damper Motor damper type LS (closing damper) LSR (closing damper, spring return) Type LS315-24 LSR315-24 Designation LSA/LSF LSFR Motor type NM24-F AF-24 Rotation time 75–150 s open: 150 s close: 16 s Ingress protection IP42 IP42 Ambient temperature -20ºC to +50ºC -30ºC to +50ºC...
Page 31: Compact Filters
Technical data 3004513-2016-01-14 6.2 Compact filters Filter data, VEX140 Data Device VEX140 Dimensions: h x w, 1 item per air direction mm 490 x 648 490 x 648 Thickness of compact filter Filter area 11.5 Filter class Retention efficiency in accordance with EN779: 2012 Efficiency (particle size 0.4μm)
Page 32 Fin spacing 2.1 mm Permissible media temperature 5..0.95 Recommendation A precise calculation of the heating coil is recommended, to be carried out with calculation program EXselect, available on www.exhausto.dk. 6.3.1 MVM motor valve Valve 1.0 - 4.0 Test pressure 1,600 kPa 1,600 kPa Max.
Page 33 VEX guidelines and on the VEX rating plate. Contact: Contact your local EXHAUSTO office service department to order a spare part. Contact information is given on the back cover of these instructions. See also the "Layout" section for an overview of the position and designation of parts in the VEX.
Page 34 Technical data 3004513-2016-01-14 Product parts Material Handling Sheet parts Aluzinc For recycling after disas- sembly Condensation tray Stainless steel For recycling after disas- sembly Bypass dampers, heat Aluminium For recycling exchangers and metal sections Insulation Mineral wool For recycling after disas- sembly Door gasket CFC and HCFC-free cel-...
Page 35 3004513-2016-01-14 35/36...
