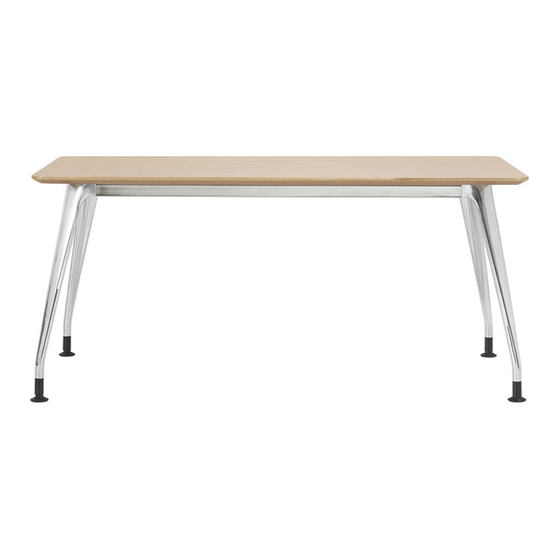

DNA stand-alone desk
1 x DD----
2 x DCL (pairs)
1 x DSH (pair)
With the beam in place, put the Allen
key through one of the holes in the top
of the beam and into the Allen bolt in
the metal lug of the leg. Turn this
anti-clockwise as if to undo the bolt.
This will raise the bolt up and force it
against the inside of the beam, locking
it in place. Repeat this with the bolt
directly next to the one you have just
turned.
1 x DR 22/20/18/
1 x DR 06/08/10
16/14/12/08 (pair)
(pair)
DNA desking
DD 1206/1406/1606/0808/1208/1408/1608/1808/
Fixings
8 x 6mm x 26mm
mush head screws
Take one of the corner legs and one of
the shorter rails (if you have a DD0808 or
DD 1616 all rails will be the same length
so start with any of them). With the holes
in the rail facing upwards, insert either
end of the rail onto one of the metal
lugs at the top of the leg. If the rail will
not slide on easily ensure that the bolts
in the lug are fully retracted by turning
them clockwise with the Allen key.
DD 2008/2208/2010/2210
Equipment Required
(not included)
6 mm Allen key
4 mm Allen key
Advertisement
Table of Contents
Related Manuals for Verco DNA DD 1206
Summary of Contents for Verco DNA DD 1206
- Page 1 DNA desking DNA stand-alone desk DD 1206/1406/1606/0808/1208/1408/1608/1808/ DD 2008/2208/2010/2210 Fixings Equipment Required (not included) 1 x DD---- 2 x DCL (pairs) 1 x DR 22/20/18/ 1 x DR 06/08/10 16/14/12/08 (pair) (pair) 8 x 6mm x 26mm 6 mm Allen key 4 mm Allen key mush head screws 1 x DSH (pair)
- Page 2 Repeat this process with the remaining leg of the pair, fixing it to the other end of the beam. The result should resemble this illustration. Repeat steps 1-3 with the remaining short beam and the other pair of legs. You should now have two identical structures.
- Page 3 Take all the spacer hook components (grey plastic) out of their packaging. Take one of the rectangular blocks and one of the hooks. With the ‘Verco’ and ‘100-DNASH’ text on the inside of the moulding facing up, insert the hook in to the central hole as shown left.
- Page 4 Place the black ‘mush head’ screws through the holes in each leg and screw them into the underside of the top using the 4mm Allen key. Continue turning until the fully inserted but avoid over-tightening. This step is not essential. You can fix the spacer hook into position by sliding it to the desired position and screwing through the two holes in its base and...
