Verco VISUAL Two Assembly Instructions

Assembly Instructions for
VISUAL Two
Interactive
Crescent Desk
1 Carefully remove Desk Top (A) from packaging, place Desk Top (A) upside down on top
of empty packaging. Remove Fixings from separate packaging.
Check all items against the Contents List, should any parts be missing, please contact
Customer Services on 01494 448000.
2 Take 2x Metal Minifix Bolts (J), and screw into 2x Pre-Drilled Holes on side of 800mm Leg
Frame (D).
3 Take 2x Metal Minifix Bolts (J), and screw into 2x Pre-Drilled Holes on side of 600mm Leg
Frame (E).
4 Take 4x Metal Minifix Bolts (J) and screw 'finger-tight' into both sides of Corner Column
(F). Take care not to over-tighten Metal Minifix Bolts (J).
5 Fix Back Panel Bracket (G) onto inside of Long Modesty Panel (B) using 2x Flange
Head Screws (H) into the 2x Pilot Holes.
7 Carefully position 800mm Leg Frame (D) over 3x Pilot Holes on 800 side of Desk Top (A).
Using 3x Mushroom Head Screws (I) and a Phillips Screwdriver, fix 800mm Leg Frame (D)
to Desk Top (A).
8 Offer Long Modesty Panel (B) up to 800mm Leg Frame (D), ensuring that Minifix Cams
(K) are fully located over Metal Minifix Bolts (J). Using a Phillips Screwdriver, turn Minifix
Cams (K) 180° clockwise to lock in position.
9 Take Corner Column (F), and locate Metal Minifix Bolts (J) into remaining Minifix Cams
(K) on Long Modesty Panel (B), and tighten as above.
10 Take Short Modesty Panel (C) and offer up to Corner Column (F), ensuring that Minifix
Cams (K) are fully located over Metal Minifix Bolts (J), but do not tighten.
11 Take 600mm Leg Frame (E) and locate Metal Minifix Bolts (J) fully inside Minifix Cams
(K) in Short Modesty Panel (C), and tighten.
12 Lift and place 600mm Leg Frame (E) over 3x Pilot Holes on 600 Return side of Desk Top
(A). Using 3x Mushroom Head Screws (I) and a Phillips Screwdriver, fix 600mm Leg Frame
(E) to Desk Top (A).
13 Position Complete Frame so that Corner Column (F) is in position over Cable Port hole as
shown in Figure 2. Tighten up all Minifix Cams (K) which remain unlocked.
14 Using 2x Mushroom Head Screws (I), fix Corner Column (F) to Desk Top (A). Take 1x
Flange Head Screw (H) and fix Back Panel Bracket (G) to underside of Desk Top (A).
15 With the assistance of at least one other person, carefully turn entire Desk over and place in
desired position.
t. +44 (0) 1494 448000
w. www.verco.co.uk
A
B
C
D
H I J K
Assembly Instructions for
VISUAL Two
Interactive
Crescent Desk

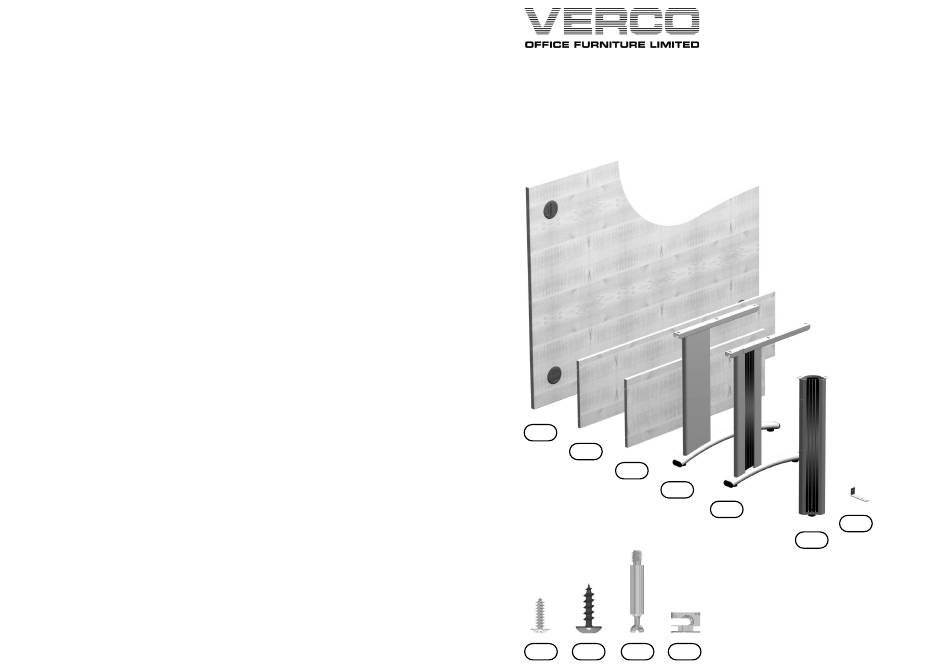

CONTENTS
A 1 x
Desk Top
B 1 x Long Modesty Panel
C 1 x
Short Modesty Panel
D 1 x 800mm Leg Frame
E
1 x 600mm Leg Frame
F 1 x Corner Column
G
1 x Back Panel Bracket
H 3 x Flange Head Screw
I
8 x Mushroom Head Screw
J 8 x Metal Minifix Bolt
K
8 x Minifix Cam
(pre-inserted)
E
G
F
PLEASE CAREFULLY
READ INSTRUCTIONS
BEFORE COMMENCING
ASSEMBLY OF DESK
