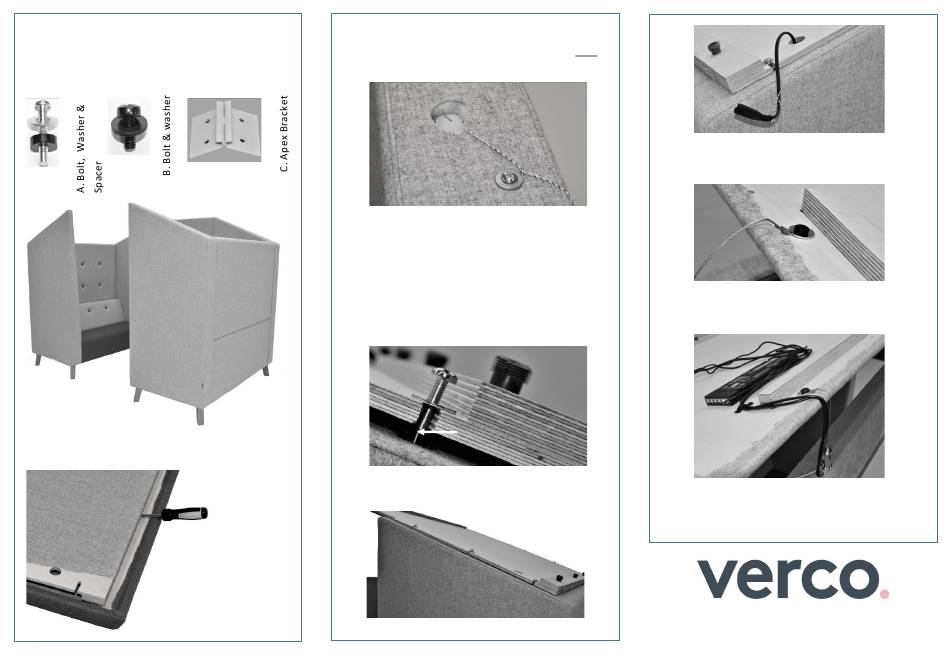

JENSEN HUT ROOF INSTALLATION
INSTRUCTIONS
Fixings supplied:
1. Assemble the Seats, Arms and Intermediate Panel as
instructed on additional Jensen-Up instructions.
2. Separate the Inner
Ceiling and the Roof Outer
parts using a Screwdriver,
along the edge that is
labelled.
3. Remove the screw on top of the Arm that secures the
Cable String, loosen the string from the leg. Do NOT let
the string drop down the Arm.
4. Select the Ceiling panel with the marked Power Unit
position. Place on top of the arm with the cable string.
Line up the slots with the inserts.
Loosely secure using 6No. A Fixings.
Ensure the Black Spacer is fitted between the Arm and
Ceiling panel
Black Spacer washer
5. Tie the bottom of string to the power cable, pull
cable up through the Arm and Ceiling panel.
6. Secure the 2 light suspension cables to the ceiling
panel with the two bolts and washers
7. Hang the Light—Ensure the power cables sit in the
notch within the Ceiling panel. Connect all 3 cables to
the Power Unit. Secure with cable clips provided
