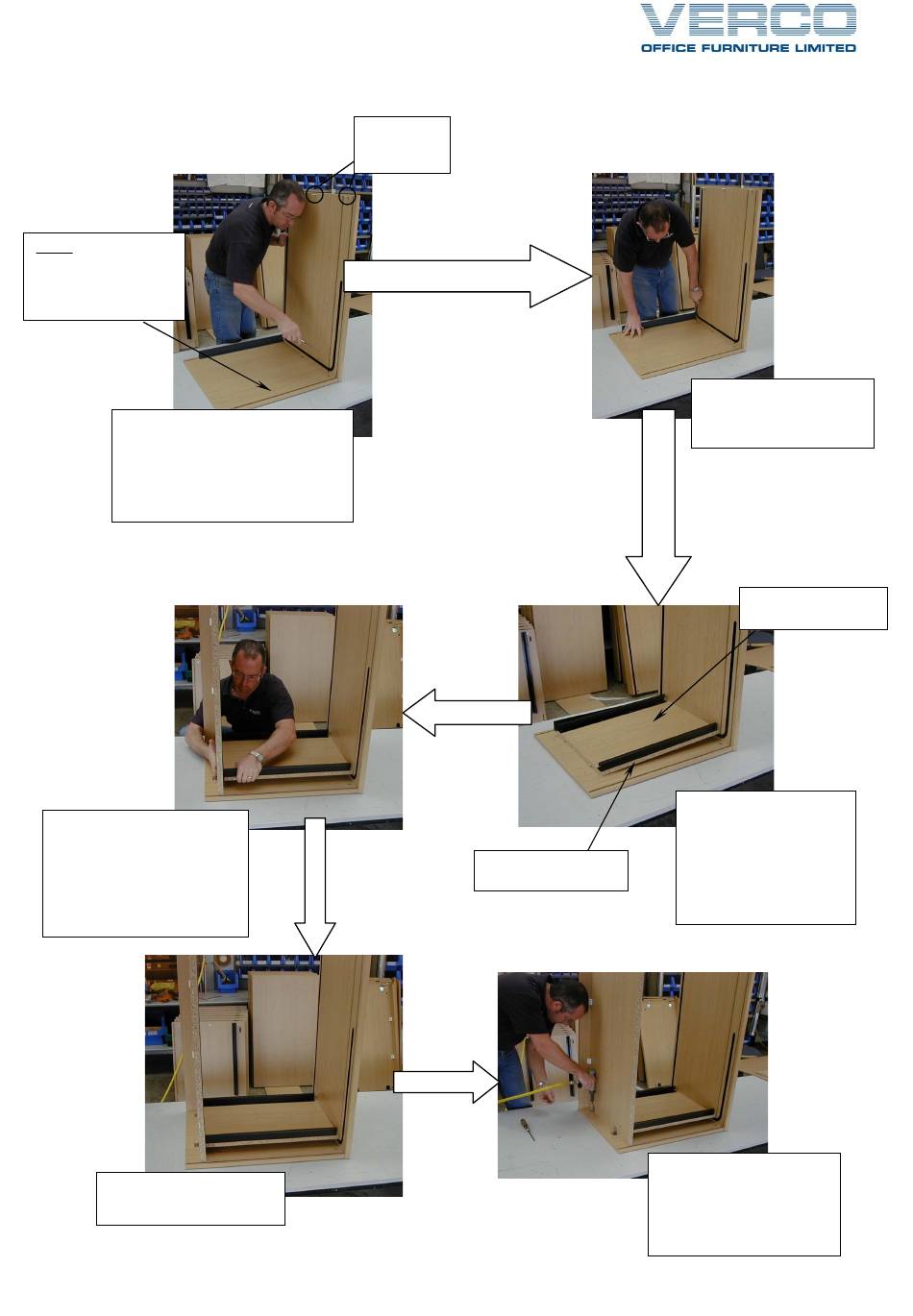

VSST1020 tambour unit assembly instructions
Note: Instructions below show assembly of desk high tambour, use same methods and steps for taller
units.
NOTE: 2M UNITS
WILL HAVE A METAL
STRENGHTENING
RAIL SCREWED
HERE.
1. ASSEMBLE CABINET ON LH
SIDE AS PER DIAGRAMS.
SCREW ALL METAL DOWELS
INTO HOLES IN TOP AND
LOCATE TOP ONTO LH END.
4. PLACE BOTTOM INTO
POSITION AND LOCATE
WOODEN DOWELS IN
END OF INTERNAL
SPACER PANEL INTO
HOLES IN BOTTOM.
SPACER PANEL
ASSEMBLED IN PLACE
6 METAL
DOWELS
IN TOP
REAR EDGE BARE
CHIPBOARD
2. TIGHTEN EACH
CAM WITH A SCREW
DRIVER
INTERNAL SPACER
PANEL
3. LOCATE WOODEN
DOWELS IN END OF
INTERNAL SPACER
PANEL INTO HOLES
IN TOP. CHIPBOARD
EDGE TO FACE REAR
OF CABINET.
5. SECURE BOTTOM IN
PLACE BY SCREWING
BRACKETS TO END
PANEL USING HOLES
PROVIDED.
SHEET 1
