Verco Visual Two V2ICD 1612 Assembly Instructions

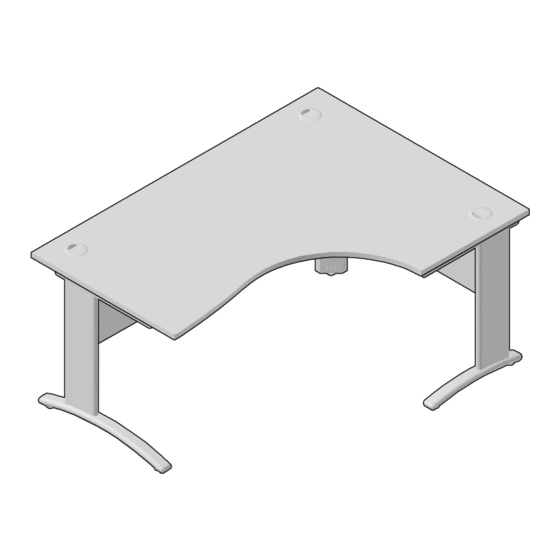

Visual Two free standing crescent desks
2 x V2 ICT L/R 1 x V2
corner leg
1 x V2 modesty 1 x V2 return
panel modesty panel
You will assemble the desk in an
inverted position and then flip it the
right way up once complete. This
makes it easier to access the fittings as
it's constructed. Before starting check
you have all the items listed above
including the equipment required.

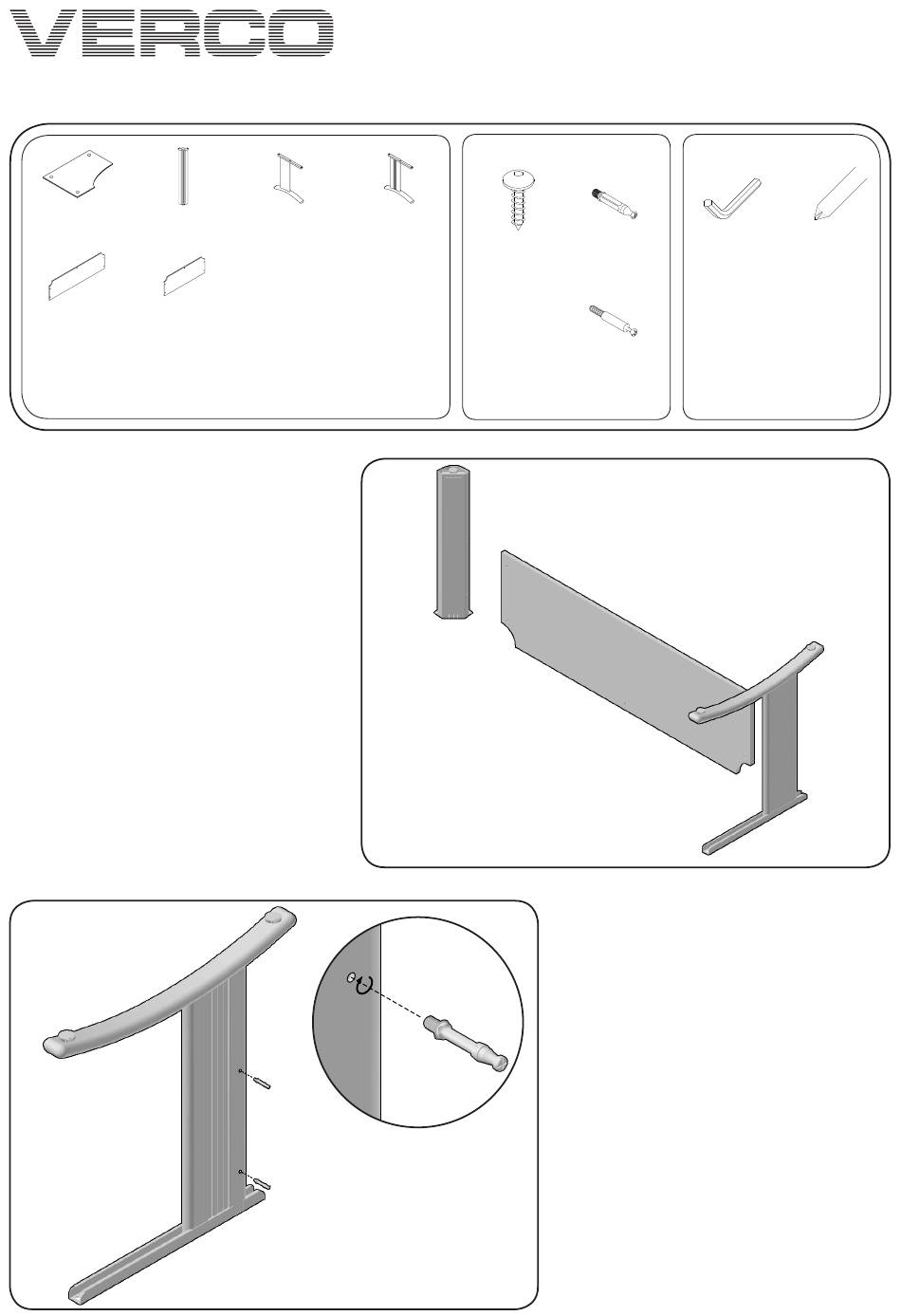

Arrange the large leg, corner leg and
modesty panel in the layout shown
here, with the flat section of the leg
closest to the floor and the holes in
the modesty panel facing along the
longer side of the leg. The cutouts in
the panel should sit at its base next to
the flat sections of the legs.You may lay
the components down until they are
needed. The desk shown here is right
handed, a left handed desk will be the
inverse of this diagram.
1 x V2LF L 1 x V2LF R
(600/800) (600/800)
Visual Two desking
Fixings
(numbers based on a 2 unit bench)
8 x 6mm x 26mm
8 x leg
mush head screws
pin fittings
(1.8 - 2.4m tops)
2 x MFC
pin fittings
Take the cantilever leg and locate
the two threaded holes in the upright
section, these holes sit on the inside of
the leg on the assembled desk. Take
two of the leg pins from the fittings bag
and screw them into the holes using a
Phillips head screwdriver to fully tighten
them.
Repeat the same process with the
corner post leg, ensuring the remaining
holes are positioned to attach to
the return modesty panel. The round
section of the leg should be positioned
to sit on the outside of the modesty
panels.
V2 ICD 1612/1812 (left or right)
Equipment Required
(not included)
4 mm Allen key Phillips-head
screwdriver
