Communication Setup - Launch X-431 EURO TURBO User Manual

For non-OBDII vehicle, proceed as follows:
1. Locate vehicle's DLC socket.
2. Select the corresponding non-16pin connector.

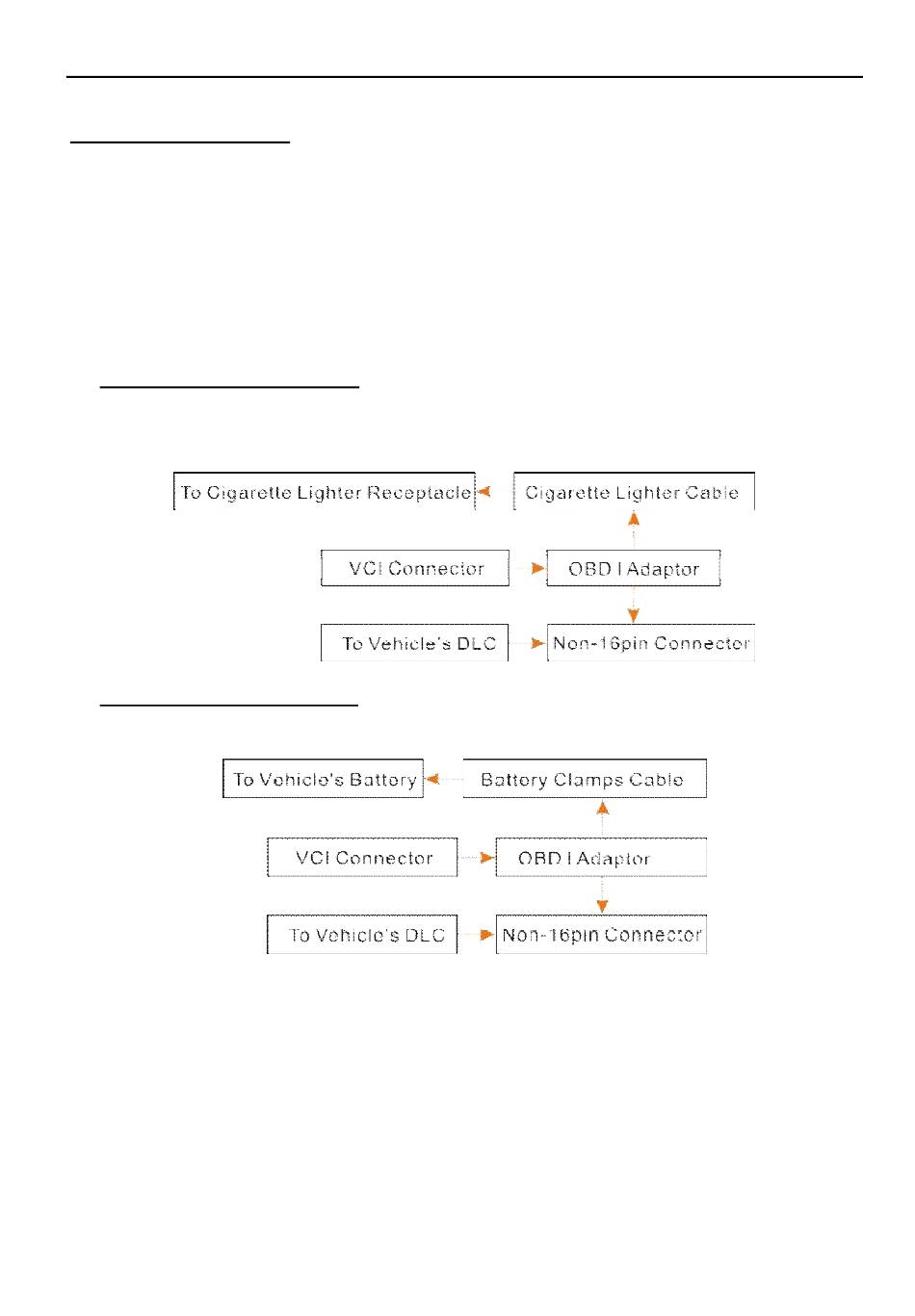

3. Plug the non-16pin end of the connector into the DLC socket, and the other
end to the OBD I adaptor, and then tighten the captive screws.
4. Connect the other end of the adaptor to the included VCI.
5. To supply power to OBD I adaptor from:
A. Cigarette Lighter Cable: Connect one end of the cigarette lighter cable to
vehicle's cigarette lighter receptacle, and the other end to the power jack of
OBD I adaptor.
B. Battery Clamps Cable: Connect one end of the battery clamps cable to
vehicle's battery, and the other end to the power jack of OBD I adaptor.

4.4 Communication Setup

After the VCI is successfully activated and powered on, the VCI will pair with the
tablet automatically. Users have no need to make any setting any more.
Once the communication failure occurs, the diagnostic app will pop up some
prompt information. In this case, just follow the on-screen prompts to
troubleshoot all possible causes.
