5759337COM

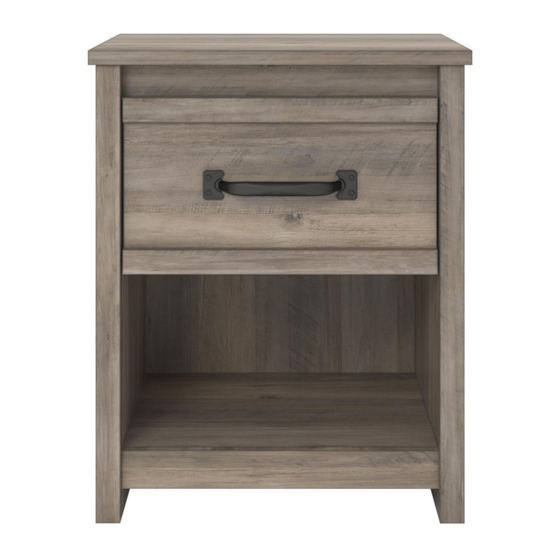

Nightstand
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARNING
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
Easy
Assembly Difficulty Meter
Follow Ameriwood Home
You
Tube
B345759337COM2
Tough
Advertisement
Related Manuals for Ameriwood HOME 5759337COM
Summary of Contents for Ameriwood HOME 5759337COM
- Page 1 Visit: www.ameriwoodhome.com Easy Tough WARNING Assembly Difficulty Meter Follow Ameriwood Home - Unit can tip over causing severe injury or death. - Anchor unit to stud in wall (if instructed to). - Do Not allow children to climb on unit. Tube...
-
Page 2: Helpful Hints
Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1-800-489-3351 Monday-Friday 9am - 5pm CST Tube Visit ameriwoodhome.com to view the limited warranty valid in the U.S. and Canada. Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1-2 ESTIMATED ASSEMBLY TIME: 1 HOUR... -
Page 3: Before You Start
Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight. -
Page 4: Board Identification
Board Identification Not actual size Right Panel Left Panel 35759337030 35759337020 35759337010 Upper Rail Lower Rail Vertical Molding (2) 35759337050 35759337060 Bottom 35759337070 35759337040 SIDE BACK Drawer Back Drawer Front Drawer Bottom Drawer Side (2) 39991167036740B 35759337081 35759331090 39991167346200C This piece is paperboard construction. it is not made from wood, but is required for the assembly of your unit. - Page 5 Board Identification Not actual size This piece is paperboard construction. it is not made from wood, but is required for the assembly of your unit. SIDE BACK SIDE ameriwoodhome.com Tube...
-
Page 6: Part List
Part List Actual Size (x4) (x8) (x8) (x18) (x4) (x4) #A22920 #A22620 #A22610 #A21660 #A21110 #A22910 connector cam lock cam bolt wood dowel nail connector bolt (x6) (x4) (x8) (x10) (x2) #A12955 #A21970 #A12120 #A11080 #A17100 #8x1-1/8" drive fastener 7/16" pan head 7/16"... - Page 7 STEP 1 (x1) #A56770 (x2) (x2) (x1) (x3) (x3) #A22620 #A22610 #A21660 #A12955 #A11080 Quick Assembly Marked with a "L" end view Proper orientation of CAM LOCK * raw edges are shaded ameriwoodhome.com Tube...
- Page 8 STEP 2 (x1) #A56770 (x2) (x2) (x1) (x3) (x3) #A22620 #A22610 #A21660 #A12955 #A11080 Quick Assembly Proper orientation of CAM LOCK Marked with a "R" end view * raw edges are shaded ameriwoodhome.com Tube...
- Page 9 STEP 3 (x2) (x2) (x4) #A21660 #A22620 #A22920 Quick Assembly You will need to tap the connector with a hammer to fully insert. Be sure the connector is positioned as * raw edges are shaded shown before pushing into holes. Proper orientation of CAM LOCK ameriwoodhome.com Tube...
- Page 10 STEP 4 (x2) #A22910 Turm screw clockwise to lock in place. * raw edges are shaded ameriwoodhome.com Tube...
- Page 11 STEP 5 ameriwoodhome.com Tube...
- Page 12 STEP 6 Do not fully tighten (x2) (x4) (x1) this screw in this #A22610 #A22910 #A84050 step. ameriwoodhome.com Tube...
- Page 13 STEP 7 (x2) #A22920 You will need to tap the connector with a hammer to fully insert. Be sure the connector is positioned as shown before pushing into holes. ameriwoodhome.com Tube...
- Page 14 STEP 8 ameriwoodhome.com Tube...
- Page 15 STEP 9 IMPORTANT! THE BACK PANEL IS A STRUCTURAL PART OF THIS UNIT AND MUST BE INSTALLED PROPERLY. With the help of another person, carefully turn the unit over. (x18) Attach the back panel as shown nailing straight into the raw edges. #A21110 Attach the back panel so that Assure that the unit is square.
- Page 16 STEP 10 (x4) (x2) #A12120 #A54520 Line up the drawer bracket stem (13) with the holes in the drawer side as shown. From other side, insert screws (7) into drawer bracket stem and tighten. SIDE SIDE bracket orientation bracket orientation ameriwoodhome.com Tube...
- Page 17 STEP 11 (x4) #A12120 Line up grooves during assembly. SIDE SIDE ameriwoodhome.com Tube...
- Page 18 STEP 12 finish surface SIDE SIDE ameriwoodhome.com Tube...
- Page 19 STEP 13 (x4) #A21970 You will need to tap the drive fasteners (9) with a hammer to securely fasten. BACK SIDE SIDE ameriwoodhome.com Tube...
- Page 20 STEP 14 (x1) (x4) (x2) #A50515 #A11080 #A17100 (x1) #A56770 drawer slide kit Attach the pull (14) after attaching the drawer slides (16c), (16d). ameriwoodhome.com Tube...
- Page 21 STEP 15 IMPORTANT: THIS UNIT MUST BE SECURE TO THE WALL TO HELP PREVENT TIPOVER. FOLLOW THESE INSTRUCTIONS TO INSTALL THE ANTI-TIPPING SAFETY BRACKET PROVIDED WITH THIS PRODUCT. hole (x1) #A84050 stud WARNING wallboard Serious or fatal crushing injuries can occur from furniture tip over.
- Page 22 STEP 16 cabinet member roller drawer runner roller Notice, the drawer bracket holes are slotted. Drawer fronts can be adjusted by loosening screws, making needed adjustments and retightening screws. ameriwoodhome.com Tube...
- Page 23 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 40 lbs 15 lbs 18.2 kg 6.8 kg 40 lbs 18.2 kg Warning: Risk of injury to persons - do not place a television on this furniture. This furniture is not approved for use with a television.
- Page 24 Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You" to all of our customers for taking the time to assemble this Ameriwood Home product, and to give us your valuable feedback. ameriwoodhome.com Tube...
