- Page 1 Laser Levels Online Spectra RC601 Remote Control User Guide REVISION 1.0 © 2021 Laser Levels Online...

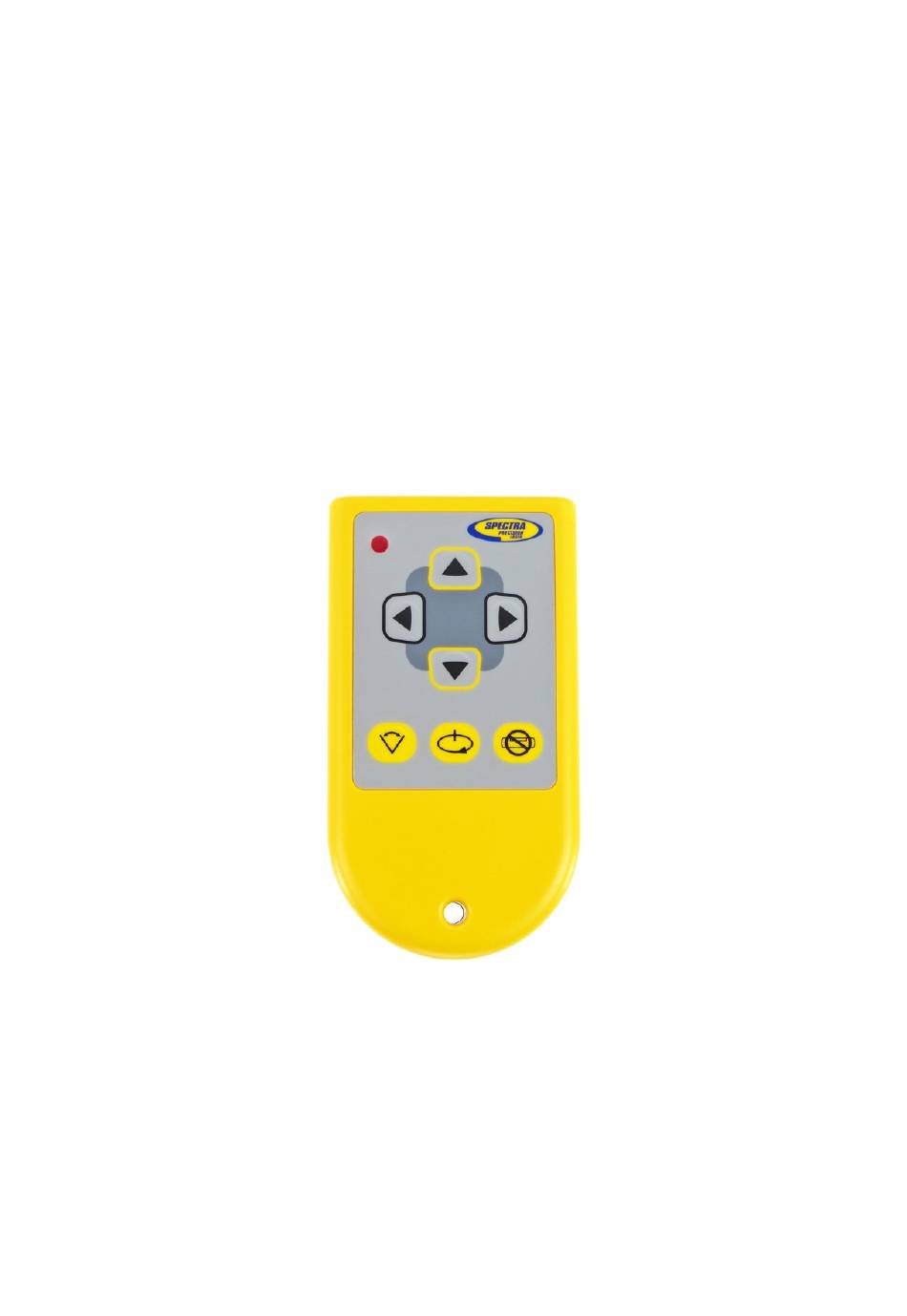

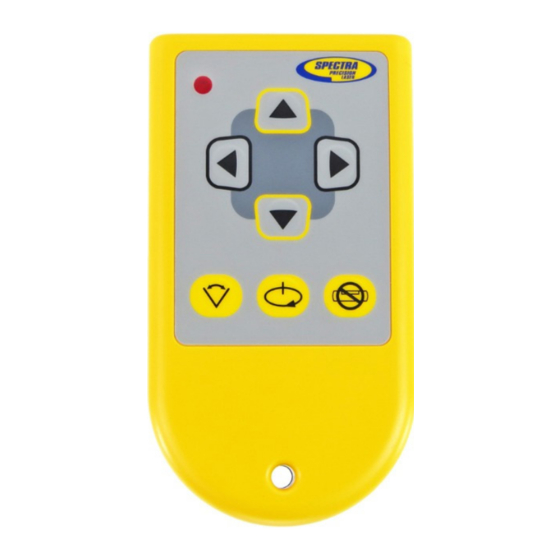

- Page 2 RC601UK REMOTE CONTROL The Spectra RC601UK Infrared Remote Control enables the user to remotely (up to 30m), adjust the following settings: Rotational speed, Scan angle & position, Manual Override (for single or dual-axis grade/slope control). It cannot be used to turn the Laser ON or OFF (a feature not available on any Spectra laser level system).
- Page 3 RC601UK REMOTE CONTROL Power Supply & Battery Replacement ● The RC601UK is powered by 1 x 9v PP3 alkaline battery which will be pre-installed. When required, unscrew the rear battery compartment and fit 1 x 9v PP3 alkaline ● replacement battery, taking care to ensure correct polarity. HV101 The following general guidance is only applicable to: Spectra HV101.
-
Page 4: Manual Override
RC601UK REMOTE CONTROL LL100N, HV101 & LL300N The following general guidance is applicable to: Spectra LL100N, HV101 & LL300N. Manual Override ● Press the Manual Override button on the remote once and the self levelling system will be turned off. The Laser will continue to rotate but the laser will no longer be outputting a level datum. - Page 5 RC601UK REMOTE CONTROL LL100N, HV101 & LL300N The following general guidance is applicable to: Spectra LL100N, HV101 & LL300N. Setting Single Axis Slope ● This example sets a grade in the X axis. ● Press the ON/OFF button once and the Laser will power on and begin automatically self- levelling.
- Page 6 HOW TO SET SLOPES (FALLS/GRADES) Working Example The following description in this guide, explains the general principles of setting a Slope (Fall/ Grade) when using a Spectra Rotary Laser Level with the Spectra RC601UK Remote Control. Equipment You will need the , a surveying tripod, measuring staff (rod) with mm scale and a laser Laser Level detector/receiver.
- Page 7 HOW TO SET SLOPES (FALLS/GRADES) Working Example (Continued) Important note: All “grade facility” rotary lasers revert back to the auto (self) level condition if switched Off without retaining the gradient set. So its recommended to complete the ground- works before switching the laser Off. Once this 1:40 fall is set, the User can use this inclined laser beam as a datum to set the depth of either the crown of the drainage pipe or the Invert level, anywhere in range of the laser –...
- Page 8 MAGNETIC MACHINE DETECTORS Check Out Our Range Of Magnetic Detectors Put a Magnetic Detector / Receiver on your machine and extend the benefits of any red beam rotary laser. They are reliable, simple to attach, extremely robust and easy to use. www.laser-level.co.uk/magnetic Laser Levels Online Unit 35, Bridge Business Centre, Beresford Way, Dunston Road,...
