  • Page 1 PPC-A72-173-C User Manual Release 1.0 Hardware Features Key Features:...
  • Page 2 Rokchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53 (1.4GHz) 4GB DDR3 eMMC 16GB Storage TF card supports up to 32GB SDHC Display 17.3 Inch LCD, 1920*1080 Pixel Resolution Touch Ten-Point Capacitive Touch 4 x USB 2.0 Host, 1 x USB 3.0 Host, 1 x Type-C 1 Channel 1000M LAN 3.5mm Audio In/Out Connector, 2W Speaker...

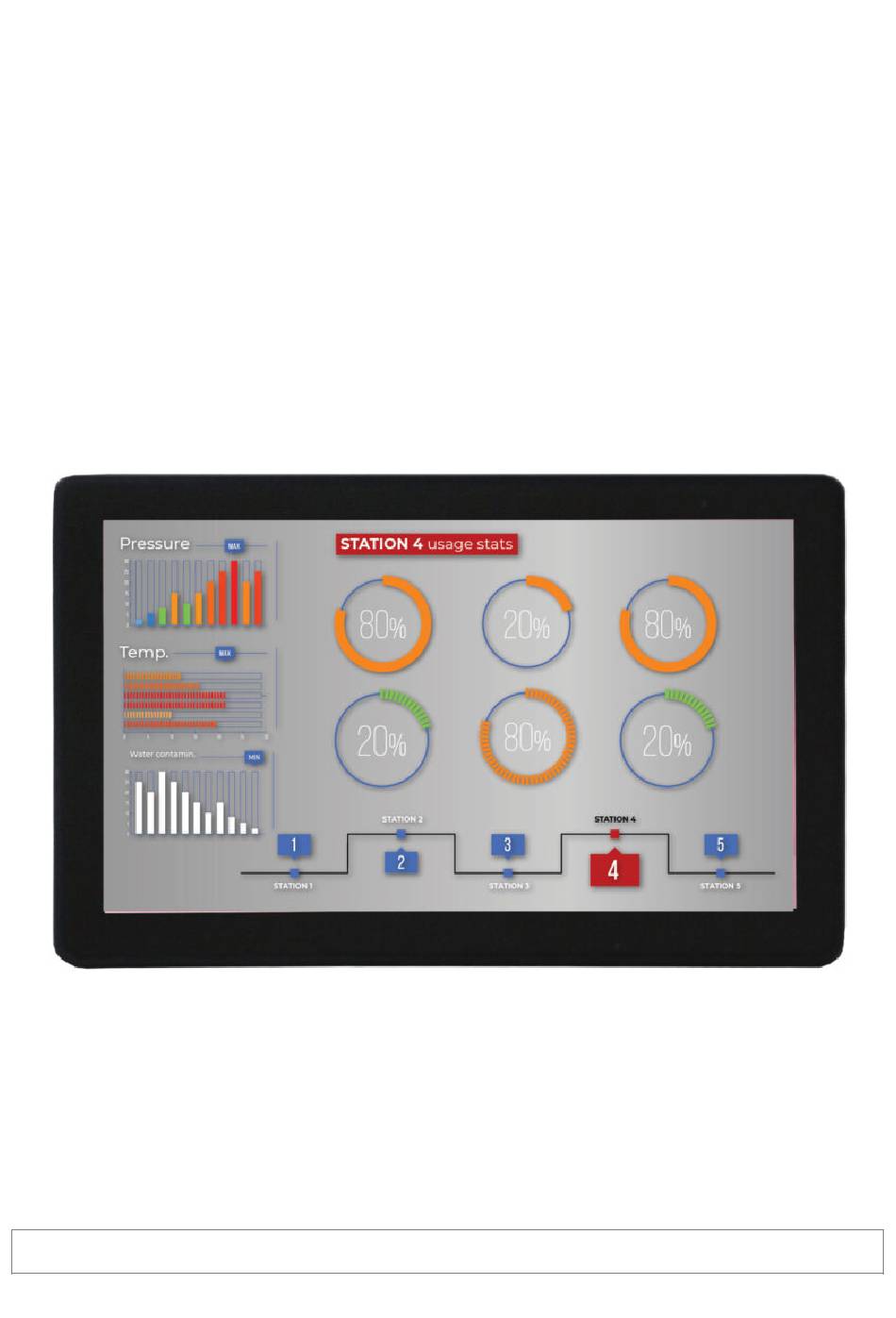

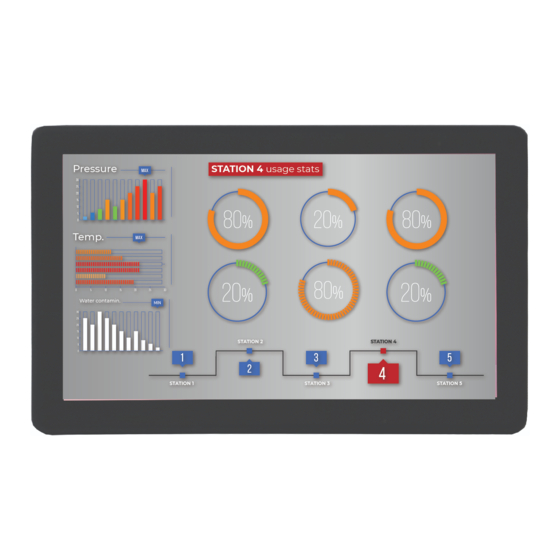

  • Page 3 CS19108R173P- C111 Figure 1: Front View (Android)

  • Page 4: Power Input Connector

    Figure 2: Back View Power Input Connector The product CS19108R173P-C111 uses a wide-range power input DC 15~36V. The total power consumption is normally about 15W. The Power Input Connector is 3 Pin 3.81mm Screw Terminal Connector as Figure 3 shows. A detailed description of the power input connector pins is provided in Table 1.
  • Page 5 Figure 3: Power Input Connector Table 1 Power Input Pin Definition: Pin Number Definition Description Connect to DC Power Positive Pin 1 Positive Input Terminal Connect to DC Power Negative Pin 2 Negative Input Terminal Pin 3 Ground Connect to Power System Ground ATTENTION: The system ground...
  • Page 6 ATTENTION: Capacitive touch screens are very sensitive to power noise. Ripple voltage/current from the power adapter can cause the LCD ripples, as well as the capacitive touch malfunction. If you use the APK Multi-Touch under Android to test it, you can find the touchpoint float.

  • Page 7: Usb 2.0 Connector

    USB 2.0 Connector There are four USB 2.0 connectors as Figure 5 shows. Each can provide 500mA current. Figure 5: USB 2.0 Connector USB 3.0 Connector And one USB 3.0 connector as Figure 6 shows. Figure 6: USB 3.0 Connector...

  • Page 8: Lan Connector

    USB Type-C The product CS19108R173P-C111 has one USB Type-C connector as Figure 7 shows. Figure 7: USB Type-C Connector LAN Connector The product has one channel 1000Mbit Ethernet Connector, as Figure 8 shows. Figure 8: LAN Connector TF Card The product CS19108R173P-C111 has one TF (uSD) card connector,...

  • Page 9: Sim Card Holder

    as Figure 9 shows, that supports a TF (uSD) card up to 32GB. Figure 9: TF Card Connector ATTENTION: A TF card does not come with the product. SIM Card Holder There is one SIM card holder, as shown in Figure 10. To read the SIM card data, you need a 4G/LTE module.

  • Page 10: Audio Connector

    Audio Connector The product CS19108R173P-C111 has one headphone, as Figure 11 shows, as well as an internal 2W speaker. Figure 11: Audio Connector WiFi+BT The product CS19108R173P-C111 has one WiFi+BT module based on Realtech RTL8723BU which integrates WiFi and BT. There is a connector on the backside of the case that is used to connect an external WiFi and BT antenna, as shown in Figure 12.

  • Page 11: Power Button

    There is one HDMI connector as Figure 13 shows. The HDMI output resolution can be configured by software. Figure 13: HDMI Connector Power Button Figure 14 shows the product’s power button. Figure 14: Power Button Dimensions and Mounting The dimensions of CS19108R173P-C111 are 442*277*41mm.
  • Page 12 This product CS19108R173P-C111 can be mounted by screw holes on the back or side, as Figure 15 shows. Please make sure the display is not exposed to high pressure when mounting into an enclosure. Figure 15: Mounting Method Chipsee Products Naming Rules CS19108R173P-C111 Chipsee Product Abbreviations...
  • Page 13 Horizontal Resolution Means 800 Pixel Means 1024 Pixel Means 1280 Pixel Means 1440 Pixel Means 1920 Pixel Vertical Resolution Means 480 Pixel Means 600 Pixel Means 768 Pixel Means 800 Pixel Means 900 Pixel Means 1024 Pixel Means 1080 Pixel R(T/F) Product based on Rockchip (TI/Freescale) CPU LCD Dimension...

  • Page 14: How To Get Support
