R82 HIGH-LOW:V Quick Start Manual

HIGH-LOW:V SZ. 1+2
GB

INDOOR FRAME

The instructions below are for High-low:v.
The frame is heightadjustable from floor to tab-
leheight. When preasuring the footpedal (A) the
height is adjusted individually. The footpedal is
equipped with a security lock (B). Turn the lock
to the left and it is activated, turn it to the right
and it is deactivated.
Be careful when lowering this frame from
the highest position to the lowest because
of the risk of finger entrapment etc.
If the the chair has to be used in the lowest
position, the foot rest has to be removed
first.
Further, angle the adaptor by lightly pressing
down the handle (C) and pushing against the
seat back.
The handle is also equipped with a security
knob. This must be deactivated before use.
It is important to press down on the back
while the seat is angled to ensure a slow
angling.
Let go of the handle and the seat is "locked" in
the desired posi tion. Activate the security knob.
All four wheels have brakes (D).
The height adjustment can be made both with
or without a seat on the frame.

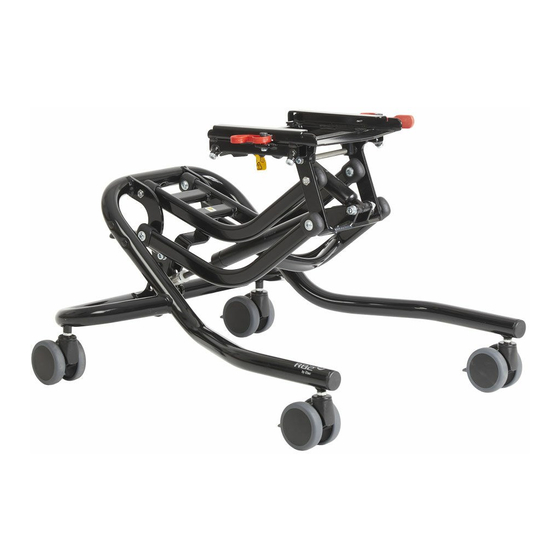

The High-low:v indoor frame is only for
indoor use.
The High-low:v indoor frame is not ap-
proved for transportation of children in
vehicles.
A
C
D
13
B
0° - 30°
-10° - 20°
G
B
