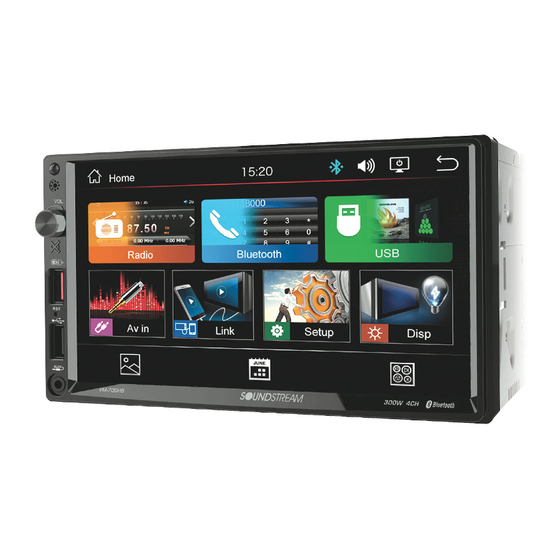

Soundstream VM-700HB User Manual

Model No.: VM-700HB
USER'S MANUAL
2 DIN MP3/MP4, USB Player,
AM/FM Receiver, w/7" TFT LCD, Bluetooth
video from this unit while this unit is not detect the brake signal of the parking brake.
been connected to this unit.
want to set on to the steering wheel.
- Remove the trim ring from unit (if installed).
according to the drilling of holes size.
Head Unit
Screws(M5x6BM)
Metal Brackets
B
ANT
A
Audio/Video I/O Connections
1. Rear Camera Video Input (Yellow)
2. Front Camera Video Input (Yellow)
3. Subwoofer Output (Green)
4. Video Input (Yellow)
5. Audio Input Left CH (White)
6. Audio Input Right CH (Red)
ISO Speaker/Power Connections
A1: Reverse In + (Orange)
A2: Brake - (Pink)
A3: KEY (Brown)
A4: ME B+ 12V (Yellow)
A5: ANT + (Blue)
A6: ILL B+ (Orange/Black)
A7: ACC B+ (Red)
A8: GND - (Black)
In each mode, touch the
Radio, BT(Bluetooth), Phonelink, AUX/AV IN, EQ Preset, USB, F.CAM(Front View
Camera), Setup.
FUSE
10A
Wallpaper
Setup
screen to enter radio mode.
6
8
9
1. Switch to the Home Page
2. Clock Time
3. Volume Level Adjust
4. TFT Screen Backlight brightness Adjust
6. Tune/Seek Down
7. Tune/Seek Up
11. Band Selector
7. Video Output 1 (Yellow)
8. Rear Left RCA Output (White)
9. Rear Right RCA Output (Red)
10. Video Output 2 (Yellow)
11. Front Left RCA Output (White)
12. Front Right RCA Output (Red)
B1: Right Rear Speaker + (Violet)
B2: Right Rear Speaker - (Violet/Black)
B3: Right Front Speaker + (Gray)
B4: Right Front Speaker - (Gray/Black)
B5: Left Front Speaker + (White)
B6: Left Front Speaker - (White/Black)
B7: Left Rear Speaker + (Green)
B8: Left Rear Speaker - (Green/Black)
icon to enter the main menu as below image.
Audio
Brightness
1 2 3 4 5
7
10 11 12 13 14 15 16
