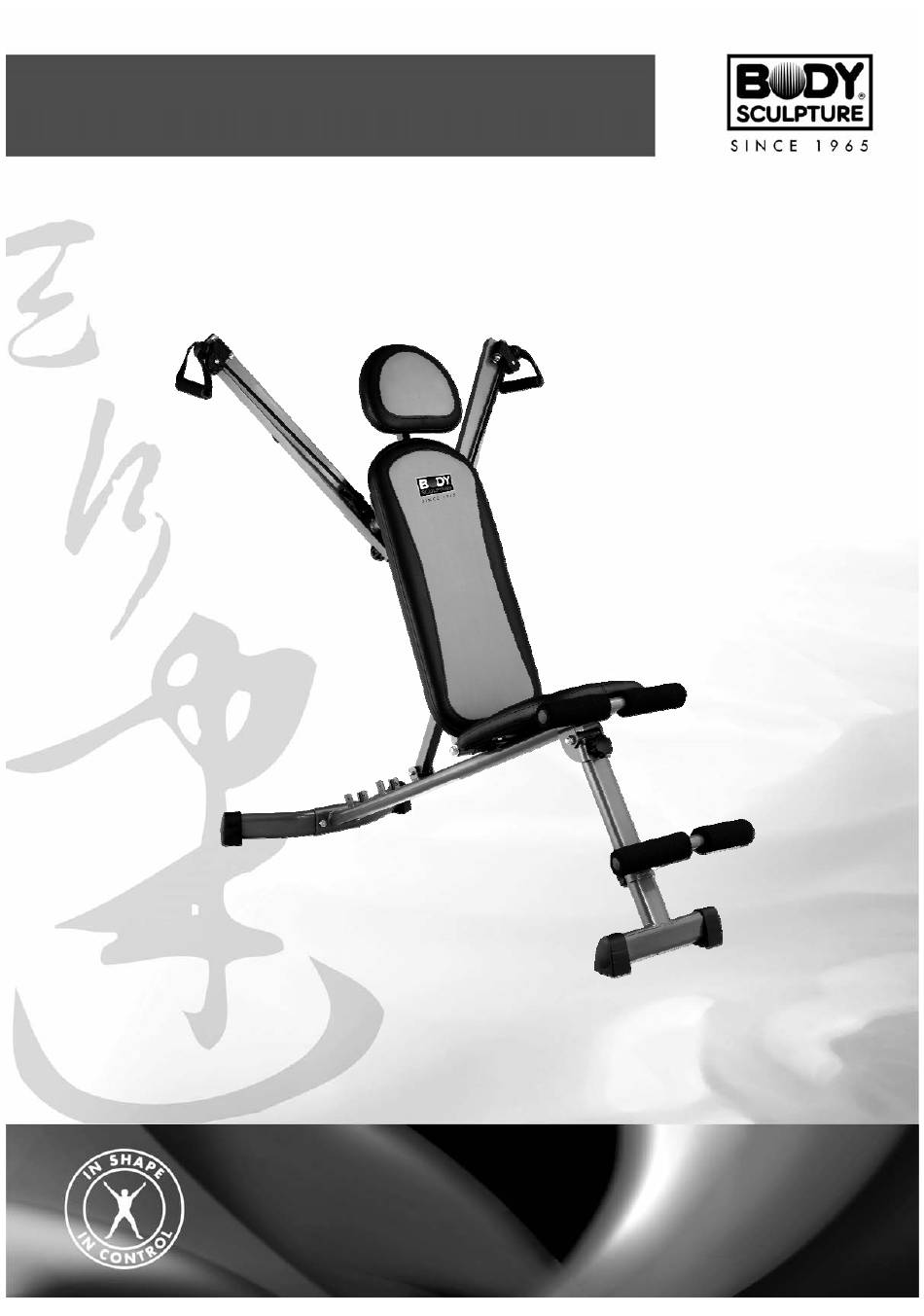

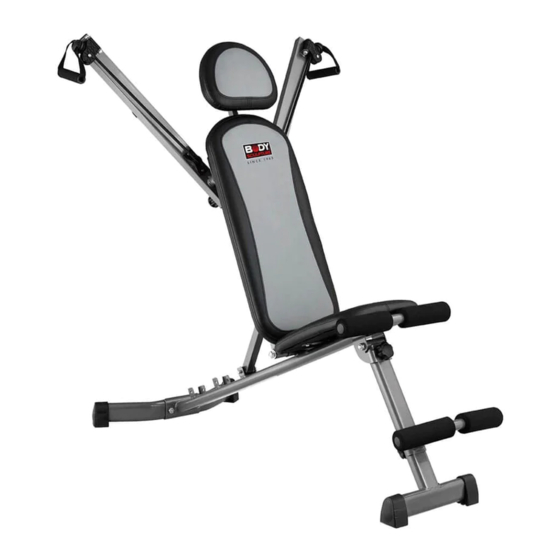

- Page 1 BSB-1710 AERO GYM USER’S MANUAL http://www.body--sculpture.com...
-
Page 3: Important Safety Information
Important Safety Information Please keep this manual in a safe place for reference. 1. It is important to read this entire manual before restrict or prevent movement. assembling and using the equipment. Safe and efficient use can only be achieved if the 10. - Page 4 Expanded Assembly Diagram...
-
Page 5: Assembly Diagram
Assembly Diagram PARTS LIST PART NO. DESCRIPTION Main frame Lock nut (M6) Curved washer Foot tube Knob (M8*20) Foot rest Knob (M8*48) Bolt (M6*68) Lock nut (M10) Rear stabilizer Bolt (M10*38) Bolt (M8*37) Head pad Lock nut (M8) -
Page 6: Assembly Instruction
ASSEMBLY INSTRUCTION STEP 1 Remove the knob （PART 5） Pull out the Support tube Insert and screw the knob into tube STEP 2 STEP 2 Remove the knob （PART 7） Place the foot rest（PART 6）into position, secure the foot rest（PART 6） STEP 3 Lift the backboard into an upright position... - Page 7 STEP 4 Attach the Rear stabilizers (PART 10) to the main frame using two sets of Lock nut (M10) (PART 9) and M10 X 38 bolt (PART 11). STEP 5 Attach the Foot tube (PART 4) to the main frame using one set of Lock nut (M6) (PART 2) and Curved washer (PART 3).
- Page 8 There are 3 levels which user can adjust height of arm. STEP 8 There are 3 levels which user can adjust the height of the strength rope. PS: The max length of rope can be extend is 120CM...
- Page 9 Using your AERO GYM will provide you with several benefits. It will tone your muscles and in conjunction with a calorie-controlled diet, help you lose weight. The Warm Up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury.
- Page 10 COPYRIGHT ©2009 BY BODY SCULPTURE INTERNATIONAL EUROPE LTD ALL RIGHTS RESERVED.UNAUTHORIZED DUPLICATION IS A VIOLATION OF LAW.
