1.3 LED Definitions

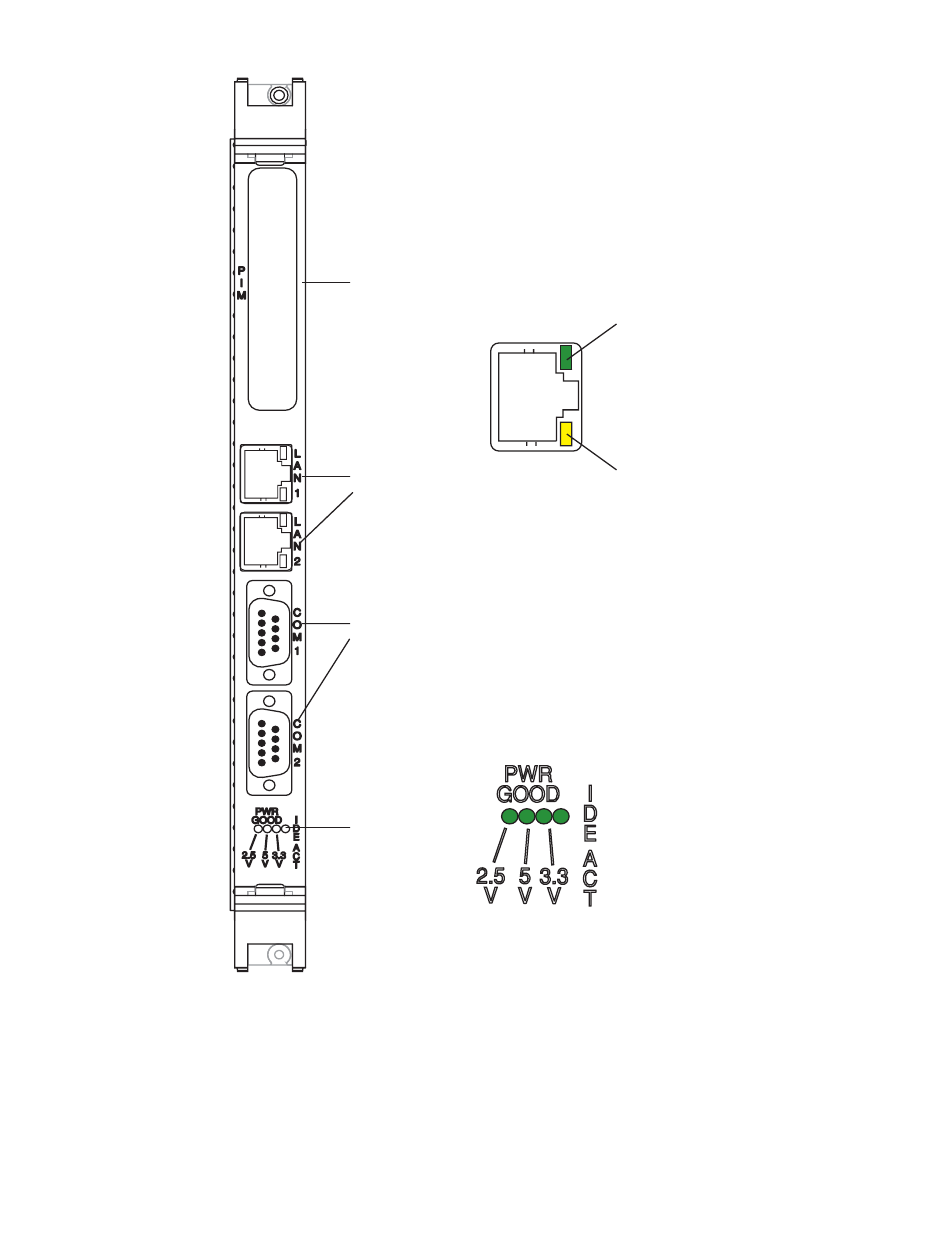

Figure 1-4 LED Definitions

PIM site
Ethernet
ports
Serial ports
Status
Indicators
Ethernet Status Indicators
LAN 1 & 2
This LED indicates link speed.
Yellow LED indicates 100Base-TX,
Green LED indicates 1000Base-T
and an unlit LED indicates 10Base-T.
Yellow LED indicates
the Ethernet is active.
Green LED indicates it
has linked.
Power and IDE Status Indicators
All three Pwr LEDs should
be illuminated (Green) once
power is applied to the board.
When IDE is activated, the
IDE ACT LED flashes.
Otherwise LED is unlit.
