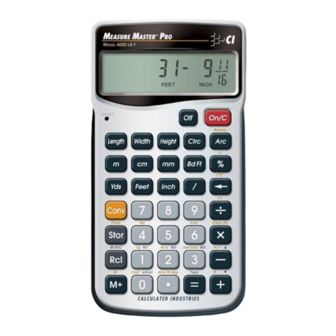

- Page 1 EASURE ASTER ™ FEET-INCH-FRACTION and METRIC CALCULATOR Model 4020 v3.1 Pocket Reference Guide...
- Page 2 EASURE The Measure Master Pro calculator helps you save time, cut costly errors and measure and estimate like a pro! Quickly Solve: • Feet-Inches-Fractions, Yards, and Metric Dimensional Problems • Feet-Inches-Fractions, Yards, and Metric Conversions • Problems Involving All Fractions –...
-
Page 3: Table Of Contents
TABLE OF CONTENTS KEY DEFINITIONS...1 Basic Function Keys ...1 Unit Keys ...2 Circle/Arc Keys ...4 Miscellaneous Functions ...5 Paperless Tape Example ...7 Preference Settings ...8 EXAMPLES ...10 Adding and Subtracting Strings of Dimensions ...10 Multiplying Dimensions ...10 Dividing Dimensions ...11 Percent Calculations ...11 Square Area...12 Square Root...12... - Page 4 Circle Area and Circumference...21 Arc Properties ...22 Concrete Volume for Driveway ...23 Squaring-up a Foundation ...23 APPENDIX ...24 Setting Fractional Resolution...24 Default Settings ...25 Auto-Shut Off ...26 Accuracy/Errors ...26 Batteries...27 Replacing the Batteries ...28 Reset ...28 AREA AND VOLUME FORMULAS ...29 Area Formulas ...29 Volume Formulas...30 REPAIR AND RETURN...31...
-
Page 5: Key Definitions
KEY DEFINITIONS Basic Function Keys + – x ÷ = 0 – 9 and • Ç ß ® OCKET Arithmetic operation keys. Keys used for entering numbers. Percent Key — Four-func- tion (+, –, x, ÷) percent key. Off Key — Turns all power off, clearing all non-perma- nent registers. -
Page 6: Unit Keys
Unit Keys OCKET Yards Key — Enters or converts to Yards . Feet Key — Enters or con- verts to Feet as whole or decimal numbers. Also used with the i and / keys for entering Feet-Inch values (e.g., 6 f 9 i 1 / 2). - Page 7 Ç 2 OCKET denominator (bottom) is not entered, the calculator's fractional accuracy setting is automatically used. Meters Key — Enters or converts to Meters . Centimeters Key — Enters or converts to Centimeters . Millimeters Key — Enters or converts to Millimeters .
-
Page 8: Circle/Arc Keys
Ç 1 Ç 3 Ç 4 Ç 6 Circle/Arc Keys Ç a OCKET Kilograms — Enters or converts to Kilograms. Metric Tons — Enters or converts to Metric Tons. Pounds — Enters or con- verts to Pounds. Tons — Enters or converts to Tons. -
Page 9: Miscellaneous Functions
Miscellaneous Functions Ç B Ç ÷ Ç x Ç – Ç + Ç % Ç ß ß 0 OCKET Backspace key ) Square Root ) Reciprocal — Finds the reciprocal of a number (e.g., 8 Ç ÷ 0.125). Clear All — Returns all stored values to the default settings (does not affect Preference Settings). - Page 10 (Cont’d) Ç 0 Ç • µ Ç µ ® ® ß 1 ß 2 ß 3 ® µ, 1, 2 or 3 OCKET • Ton Per CU YD • LB Per CU YD • LB Per CU FEET • MET Ton Per CU M •...
-
Page 11: Paperless Tape Example
® = Paperless Tape Example Add 6 Feet, 5 Feet and 4 Feet, then access the paperless tape mode and scroll back through your entries. Then, back up one entry, exit the tape mode and add 10 Feet to the total. KEYSTROKE 6 f + 5 f +... -
Page 12: Preference Settings
Preference Settings Press Ç , then ß , then keep pressing ß to toggle through the main settings. Press the + key to advance within sub- setting. Use the – key to back up. Press the o key to exit Preferences. PRESS Ç... - Page 13 Fourth press of ß : Fifth press of ß : Sixth press of ß : Seventh press Fractional Mode: of ß : OCKET Exponential Mode: --OFF --On --OFF (repeats options) Meter Linear Displays: --0.000 --FLOAt --0.000 (repeats options) Decimal Degree Displays: --0.00°...
-
Page 14: Examples
EXAMPLES Adding and Subtracting Strings of Dimensions Add the following measurements: • 6 Feet 2-1/2 Inches • 11 Feet 5-1/4 Inches • 18.25 Inches Then subtract 2-1/8 Inches. KEYSTROKE 6 f 2 i 1 / 2 + 1 1 f 5 i 1 / 4 + 1 8 •... -
Page 15: Dividing Dimensions
Multiply 5 Feet 3 Inches by 11 Feet 6-1/2 Inches: KEYSTROKE 5 f 3 i x 1 1 f 6 i 1 / 2 = Dividing Dimensions Divide 15 Feet 3-3/4 Inches into thirds (divide by 3): KEYSTROKE 1 5 f 3 i 3 / 4 ÷ 3 = How many 3’... -
Page 16: Square Area
What is 25% of $1,575? KEYSTROKE 1 5 7 5 x 2 5 % Square Area Find the area of a square room with sides measuring 15 Feet 8-1/2 Inches. KEYSTROKE 1 5 f 8 i 1 / 2 Ç % (x Square Root What is the Square Root of 200? KEYSTROKE... -
Page 17: Rectangular Area And Volume
Rectangular Area and Volume Find the area and volume: • Length: 20 Feet 6-1/2 Inches • Width: 12 Feet 8-1/2 Inches • Height: 10 Inches KEYSTROKE 2 0 f 6 i 1 / 2 l 1 2 f 8 i 1 / 2 W W* 1 0 i h h* *Press W and h keys a second time (after entry of Width and Height) to calculate Area... -
Page 18: Multi-Function H Key
Multi-Function h Key Find the volume, wall area, and total room area of an 18’ x 25’ room measuring 12’ tall. KEYSTROKE 1 8 f l 2 5 f W 1 2 f h *Wall Area adds the length and width, multiplies them by two and then multiplies by height. -
Page 19: Linear Conversions
Linear Conversions Convert 10 feet 6 inches to other dimen- sions, including Metric: KEYSTROKE 1 0 f 6 i Ç y Ç i Ç m Ç c Ç M Convert 14 Feet 7-1/2 Inches to Decimal Feet: KEYSTROKE 1 4 f 7 i 1 / 2 Ç... -
Page 20: Square And Cubic Conversions
Square and Cubic Conversions Convert 14 Square Feet to Square Yards: KEYSTROKE 1 4 f f Ç y Convert 25 Square Yards to Square Feet: KEYSTROKE 2 5 y y Ç f Convert 12 Cubic Feet to Cubic Yards: KEYSTROKE 1 2 f f f Ç... -
Page 21: Weight Conversions
Weight Conversions Convert 150 Pounds to other weights (Tons, Metric Tons, Kilograms): KEYSTROKE 1 5 0 Ç 4 (lbs) Ç 6 (tons) Ç 3 (met tons) Ç 1 (kg) Weight per Volume Convert 20 Cubic Yards of concrete to Pounds, Tons, Metric Tons and Kilograms, if concrete weighs 1.5 Tons per Cubic Yard (default value): KEYSTROKE... -
Page 22: Using The Memory
(Cont’d) Now convert again, if concrete weighs 2 Tons per Cubic Yard (store new Weight per Volume value): KEYSTROKE 2 ß 0 2 0 y y y Ç 4 (lbs) Ç 6 (tons) Ç 3 (met tons) Ç 1 (kg) Ç... - Page 23 Memory is semi-permanent, clearing only when you: 1) turn off the calculator; 2) press ® ®; 3) press Ç ®; 4) press Ç x (Clear All) . When Memory is recalled (® µ), consecutive presses of µ will display the calculated average and total count of the accumulated values.
-
Page 24: Using The Memory- Finding Quantity Of Carpet Required
Using the Memory — Finding Quantity of Carpet Required --Room 1: 12’ 4” x 15’ --Room 2: 14’ 8” x 16’ --Add 10% waste allowance KEYSTROKE 1 2 f 4 i x 1 5 f = µ 1 4 f 8 i x 1 6 f = µ... -
Page 25: Circle Area And Circumference
2 x 1 0 x 1 8 b µ 2 x 1 2 x 2 0 b µ ® ® x 2 7 5 Ç 0 (Cost) Circle Area and Circumference Find the Area and Circumference of a circle with a diameter of 25 Inches: KEYSTROKE 2 5 i C OCKET... -
Page 26: Arc Properties
Arc Properties Find Arc properties given a 5-foot diameter and an Arc length of 3 Feet 3 Inches: KEYSTROKE 1. Enter Circle diameter and Arc length: 5 f C 3 f 3 i a ARC 3 2. Find Degree of Arc, Chord Length, Segment Area, Pie Slice Area and Segment Rise: OCKET... -
Page 27: Concrete Volume For Driveway
Concrete Volume for Driveway Calculate the Cubic Yards of concrete required to pour a driveway that measures: 45 Feet 5 Inches long x 13 Feet 6 Inches wide x 5 Inches deep. If concrete is $65 per Cubic Yard, what will it cost? KEYSTROKE 4 5 f 5 i x 1 3 f 6 i... -
Page 28: Appendix
Ç 4 (1/4) Ç 6 (1/64) Ç 8 (1/8) Note: Changing the Fractional Resolution on a displayed value does not alter your Permanent Fractional Resolution Setting. Pressing o will return your calculator to the permanently set fractional resolution. OCKET EFERENCE DISPLAY 0-44/64... -
Page 29: Default Settings
Default Settings After a Clear All (Ç x), your calculator will return to the following setting: STORED VALUE Weight per Volume If you replace your batteries or perform a Full Reset * (press O, hold down x, and press o), your calculator will return to... -
Page 30: Auto-Shut Off
Errors — When an incorrect entry is made, or the answer is beyond the range of the calculator, it will display the word “ERROR.” To clear an error condition you must hit the o button once. At this point, you must determine what caused the error and re-key the problem. -
Page 31: Batteries
Note: Please use caution when disposing of your old battery, as it contains hazardous chemicals. Replacement batteries are available at most discount or electronics stores. You may also call Calculated Industries at 1-775-885-4900. — 27 OCKET EFERENCE UIDE... -
Page 32: Replacing The Batteries
Make sure the batteries are facing positive side up. Reset If your calculator should ever “lock up,” press Reset — a small hole located above the l key — to perform a total reset. — 28... -
Page 33: Area And Volume Formulas
AREA AND VOLUME FORMULAS Area Formulas — 29 OCKET EFERENCE UIDE... -
Page 34: Volume Formulas
Volume Formulas — 30 OCKET EFERENCE UIDE... -
Page 35: Repair And Return
If you need more assistance, please go to the website listed below. If you believe you need to return your product, please call a Calculated Industries representative between the hours of 8:00am and 4:00pm Pacific Time for additional information and a Return Merchandise Authorization (RMA). -
Page 36: Warranty
Non-warranty repair covers service beyond the warranty period, or service requested due to damage resulting from misuse or abuse. Contact Calculated Industries at the number listed above to obtain current product repair information and charges. Repairs are guaranteed for 90 days. - Page 37 Repair Service – Outside the U.S.A. To obtain warranty or non-warranty repair service for goods purchased outside the U.S., contact the dealer through which you initially purchased the product. If you cannot reasonably have the product repaired in your area, you may contact CI to obtain current product repair information and charges, including freight and duties.
-
Page 38: Fcc Class B
Class B computing device, pursuant to Subpart J of Part 15 of FCC rules. LOOKING FOR NEW IDEAS Calculated Industries, a leading manufacturer of special- function calculators and digital measuring instruments, is always looking for new product ideas in these areas. - Page 39 Calculated Industries, Inc. by Construction Master Technologies, LLC, 2006. Pocket Reference Guide copyrighted by Calculated Industries, Inc. © 2006. Measure Master™ is a trademark and Calculated Industries® is a registered trademark of Calculated Industries, Inc. ALL RIGHTS RESERVED CALCULATED INDUSTRIES® 4840 Hytech Drive Carson City, NV 89706 U.S.A.
