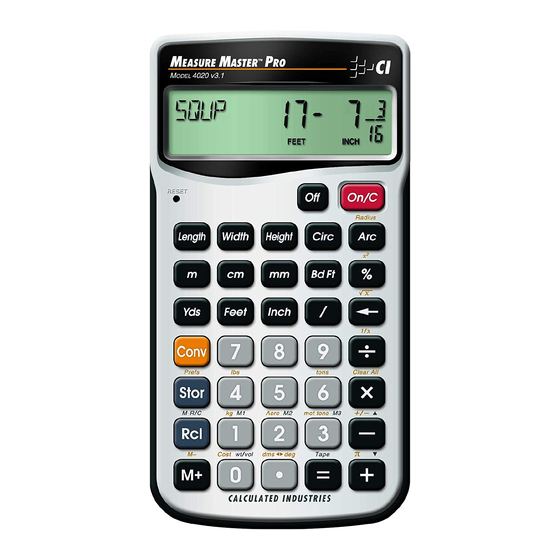

- Page 1 EASURE ASTER ™ FEET-INCH-FRACTION and METRIC CALCULATOR Model 4020 Pocket Reference Guide...
- Page 2 ® EASURE ASTER The Measure Master Pro calculator helps you save time, cut costly errors and measure and estimate like a pro! Quickly Solve: • Feet-Inches-Fractions, Yards, and Metric Dimensional Problems • Feet-Inches-Fractions, Yards, and Metric Conversions • Problems Involving All Fractions – 1/2-1/64ths! •...
-
Page 3: Table Of Contents
TABLE OF CONTENTS KEY DEFINITIONS........4 Dimension Keys........4 Miscellaneous Functions .....6 Paperless Tape Example .....8 Preference Settings ......9 EXAMPLES ...........11 Adding and Subtracting Strings of Dimensions ........11 Dividing Dimensions ......12 Percent Calculations......13 Square Area........14 Square Root........14 Rectangular Area and Volume...15 Multi-Function h Key.....16 Entering Square and Cubic and Adding a Waste Allowance ....17 Linear Conversions......18... - Page 4 Concrete Volume for Driveway ..26 Squaring-up a Foundation ....26 APPENDIX A.........27 Setting Fractional Resolution.....27 Auto-Shut Off ........28 Accuracy/Errors .........28 Batteries..........29 Replacing the Batteries .....30 Reset Key ..........30 APPENDIX B.........31 Area Formulas ........31 Volume Formulas.......32 REPAIR AND RETURN......33 Warranty, Repair and Return Information........33 WARRANTY ..........34 FCC Class B........36...
-
Page 5: Key Definitions
KEY DEFINITIONS Dimension Keys Yards Feet Inch Fraction Bar (used to enter feet-inch-fractions) Meters Centimeters Millimeters Board Feet – Enters or converts cubic values to board feet. Enters length for calcula- tion of area or volume. Enters width and calcu- lates: area, square-up and perimeter. - Page 6 Ç 1 Enters or converts to kilo- grams. Ç 3 Enters or converts to Metric tons. Ç 4 Enters or converts to pounds. Ç 6 Enters or converts to tons. Circle – Calculates circle area and circumference based on entered diameter. Calculates arc length or degree based on entered diameter and arc degree...
-
Page 7: Miscellaneous Functions
Miscellaneous Functions Backspace key Ç B ) Square Root Ç ÷ (1/x) Inverse Ç x Clear All Ç – (+/–) Toggle Ç + Pi (π) 3.141593 Ç % Ç ß Preference Settings ß 0 Stores Weight per Volume Ç 0 Total Cost (based on entry of per unit cost) Ç... - Page 8 ® = Paperless Tape – Useful for checking figures, as it scrolls through your past 20 entries or calculations. Press ® = to access Paperless Tape mode. Press + or – to scroll for- ward or backward. Press = to exit mode and contin- ue with a new entry or cal- culation.
-
Page 9: Paperless Tape Example
Paperless Tape Example Add 6 feet, 5 feet and 4 feet, then access the paperless tape mode and scroll back through your entries. Then, back up one entry, exit the tape mode and add 10 feet to the total. KEYSTROKE DISPLAY 6 f + FEET... -
Page 10: Preference Settings
Preference Settings Press Ç , then ß , then keep pressing ß to toggle through the main settings. Press the + key to advance within sub- setting. Use the – key to back up. Press any key to exit mode. PRESS Ç... - Page 11 (Cont’d) PRESS Ç AND: SETTING--FUNCTION 3rd press of ß Volume Displays: --Standard --0. CU YD --0. CU FEET --0. CU M --Standard (repeats options) 4th press of ß Exponential Display: --Off --On --Off (repeats options) 5th press of ß Meter Linear Display: --0.000 (floating point) --FLOAt...
-
Page 12: Examples
EXAMPLES Adding and Subtracting Strings of Dimensions Add the following measurements: • 6 feet 2-1/2 inches • 11 feet 5-1/4 inches • 18.25 inches Then subtract 2-1/8 inches. KEYSTROKE DISPLAY 6 f 2 i 1 / 2 + 2-1/2 FEET INCH 1 1 f 5 i 1 / 4 + 7-3/4... -
Page 13: Dividing Dimensions
Dividing Dimensions Divide 15 feet 3-3/4 inches into thirds (divide by 3): KEYSTROKE DISPLAY 1 5 f 3 i 3 / 4 ÷ 3 = 1-1/4 FEET INCH How many 3’6” pieces can you cut from one 25-ft. board? KEYSTROKE DISPLAY 2 5 f ÷... -
Page 14: Percent Calculations
Percent Calculations Add a 10% waste allowance to 2.78 cubic yards. KEYSTROKE DISPLAY 2 • 7 8 y y y + 1 0 % 3.058 CU YD What is 25% of $1,575? KEYSTROKE DISPLAY 1 5 7 5 x 2 5 % 393.75 —... -
Page 15: Square Area
Square Area Find the area of a square room with sides measuring 15 feet 8-1/2 inches. KEYSTROKE DISPLAY 1 5 f 8 i 1 / 2 8-1/2 FEET INCH Ç % (x 246.7517 SQ FEET Square Root What is the square root of 200? KEYSTROKE DISPLAY 2 0 0 Ç... -
Page 16: Rectangular Area And Volume
Rectangular Area and Volume Find the area and volume: • Length: 20 feet 6-1/2 inches • Width: 12 feet 8-1/2 inches • Height: 10 inches KEYSTROKE DISPLAY 2 0 f 6 i 1 / 2 l LNTH 20 6-1/2 FEET INCH 1 2 f 8 i 1 / 2 W W* AREA 261.0503... -
Page 17: Multi-Function H Key
Multi-Function h Key Find the volume, area, square-up, perimeter, wall area, and total room area of an 18’ x 25’ room measuring 12’ tall. KEYSTROKE DISPLAY 1 8 f l LNTH 18 FEET INCH 2 5 f W WDTH 25 FEET INCH 1 2 f h... -
Page 18: Entering Square And Cubic And Adding A Waste Allowance
Entering Square and Cubic and Adding a Waste Allowance Add a 10% waste allowance to 55 square feet. Then add a 20% waste allowance to 150 cubic feet: KEYSTROKE DISPLAY 5 5 f f + 1 0 % 60.5 SQ FEET 1 5 0 f f f + 2 0 % 180. -
Page 19: Linear Conversions
Linear Conversions Convert 10 feet 6 inches to other dimen- sions, including Metric: KEYSTROKE DISPLAY 1 0 f 6 i FEET INCH Ç y INCH 3.200 320.04 3200.4 Convert 14 feet 7-1/2 inches to decimal feet: KEYSTROKE DISPLAY 1 4 f 7 i 1 / 2 7-1/2 FEET INCH... -
Page 20: Square And Cubic Conversions
Square and Cubic Conversions Convert 14 square feet to square yards: KEYSTROKE DISPLAY 1 4 f f SQ FEET Ç y 1.555556 SQ YD Convert 25 square yards to square feet: KEYSTROKE DISPLAY 2 5 y y SQ YD Ç f 225. -
Page 21: Weight Conversions
Weight Conversions Convert 150 pounds to other weights (tons, Metric tons, kg): KEYSTROKE DISPLAY 1 5 0 Ç 4 Ç 6 0.075 Ç 3 0.068039 MET Ton Ç 1 68.03886 — 20 OCKET EFERENCE UIDE... -
Page 22: Weight Per Volume
Weight per Volume Convert 20 cubic yards of concrete to pounds, tons, Metric tons and kilograms, if concrete weighs 1.5 tons per cubic yard (default value): KEYSTROKE DISPLAY 2 0 y y y CU YD Ç 4 60000. Ç 6 Ç... -
Page 23: Using The Memory
Using the Memory Add 100 and 200 to the Memory, then subtract 50 and recall the total while clearing the memory: KEYSTROKE DISPLAY 1 0 0 µ M+ 100. 2 0 0 µ M+ 200. 5 0 Ç µ M– 50. ®... -
Page 24: Board Feet And Cost
Board Feet and Cost Find the total board feet for the following boards: 2 x 4 x 16, 2 x 10 x 18 and 2 x 12 x 20. What is the total cost at $275 per Mbm*? *Per thousand board foot measure. KEYSTROKE DISPLAY 2 x 4 x 1 6 b µ... -
Page 25: Circle Area And Circumference
Circle Area and Circumference Find the area and circumference of a circle with a diameter of 25 inches: KEYSTROKE DISPLAY 2 5 i C DIA 25 INCH AREA 490.8739 SQ INCH CIRC 78-9/16 INCH — 24 OCKET EFERENCE UIDE... -
Page 26: Arc Angle Or Degree
Arc Angle or Degree Find the arc angle (or degree of arc), given a 5-foot diameter and an arc length of 3 feet 3 inches. KEYSTROKE DISPLAY 1. Enter circle diameter and arc length: 5 f C DIA 5 FEET INCH 3 f 3 i a ARC 3 FEET... -
Page 27: Concrete Volume For Driveway
Concrete Volume for Driveway Calculate the cubic yards of concrete required to pour a driveway that meas- ures: 45 feet 5 inches long x 13 feet 6 inches wide x 5 inches deep. If concrete is $65 per cubic yard, what will it cost? KEYSTROKE DISPLAY 4 5 f 5 i... -
Page 28: Setting Fractional Resolution
APPENDIX A Setting Fractional Resolution Your calculator is set to display fractional answers in 16ths. To select other formats (e.g., 1/64ths, 1/32nds, etc.) follow the keystrokes below: KEYSTROKE DISPLAY 1. Clear calculator: 2. Set calculator to 1/2: Ç 2 FRAC 0-1/2 INCH 3. -
Page 29: Auto-Shut Off
Auto-Shut Off Your calculator will shut itself off after about 8-12 minutes of non-use. Accuracy/Errors Accuracy/Display Capacity — Your calcu- lator has a twelve-digit display made up of eight digits (normal display) and four frac- tional digits. You may enter or calculate values up to 19,999,999.99. -
Page 30: Batteries
Note: Please use caution when disposing of your old battery, as it contains hazardous chemicals. Replacement batteries are available at most discount or electronics stores. You may also call Calculated Industries at 1-775-885-4900. — 29 OCKET EFERENCE UIDE... -
Page 31: Replacing The Batteries
Replacing the Batteries To replace the batteries, slide open the battery door (at top backside of unit) and replace with new batteries. Make sure the batteries are facing positive side up. Reset Key If your calculator should ever “lock up,” press Reset —... -
Page 32: Area Formulas
APPENDIX B Area Formulas — 31 OCKET EFERENCE UIDE... -
Page 33: Volume Formulas
Volume Formulas — 32 OCKET EFERENCE UIDE... -
Page 34: Repair And Return
4. If you need more assistance, please go to our website at www.calculated.com and click on Support, then Repair Services FAQs. 5. If you believe you need to return your calcu- lator, please speak to a Calculated Industries representative for additional information! Call Toll Free: 1-800-854-8075 — 33... -
Page 35: Warranty
WHICH ARE PRESUMED TO BE DAMAGES RESULT- ING FROM MISUSE OR ABUSE. To obtain warranty service in the U.S., ship the product postage paid to Calculated Industries (address listed on the last page). Please provide an explanation of the service requirement, your name, address, day phone number and dated proof of purchase (typically a sales receipt). - Page 36 Non-warranty repair covers service beyond the warranty period, or service requested due to damage resulting from misuse or abuse. Contact Calculated Industries at the number listed above to obtain current product repair information and charges. Repairs are guaranteed for 90 days.
-
Page 37: Fcc Class B
Class B computing device, pursuant to Subpart J of Part 15 of FCC rules. Looking For New Ideas Calculated Industries, a leading manufacturer of special- function calculators and digital measuring instruments, is always looking for new product ideas in these areas. - Page 38 — 37 OCKET EFERENCE UIDE...
