Single-Pass Placement - ADC OmniReach Methods And Procedures

ADCP-96-099 • Issue 1 • July 2007
2.1

Single-Pass Placement

Single-pass placement method involves hanging and lashing the distribution cable to a pre-
existing cable or a dedicated messenger in one pass. The reel is typically loaded onto an arbor on
the rear of a truck. The technician starts at the CO end of the run, feeds out the specified amount
of slack, aligns the first PAM, and then progresses towards the other end of the run. When a TAP
over mold is reached, the lashing machine is lifted past the over mold and tether and strand are
secured before continuing. See
Page 6
© 2007, ADC Telecommunications, Inc.

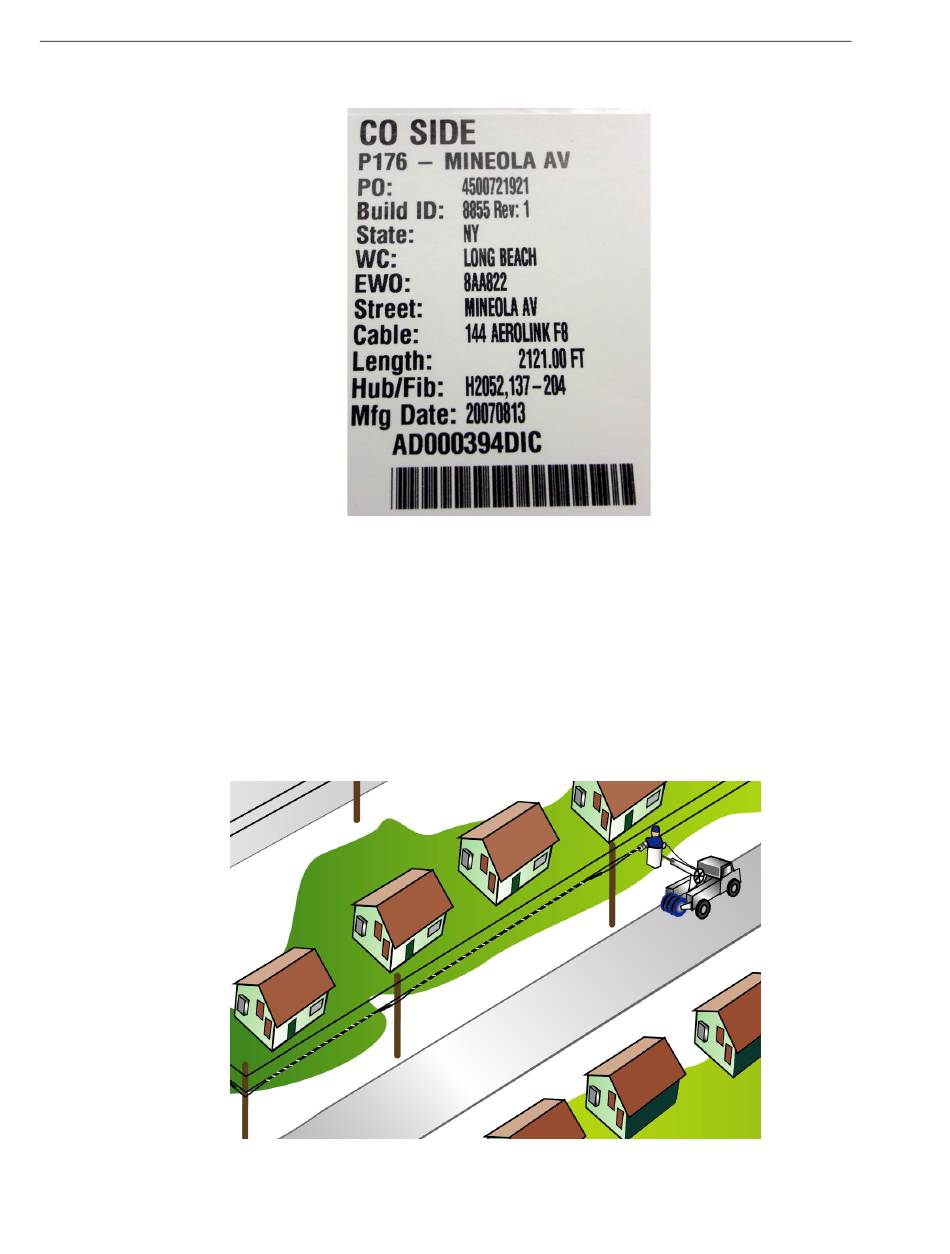

Figure 10. CO Side Label
Figure 11.
Figure 11. Single Pass - Hang and Lash - Pull Beginning to End
