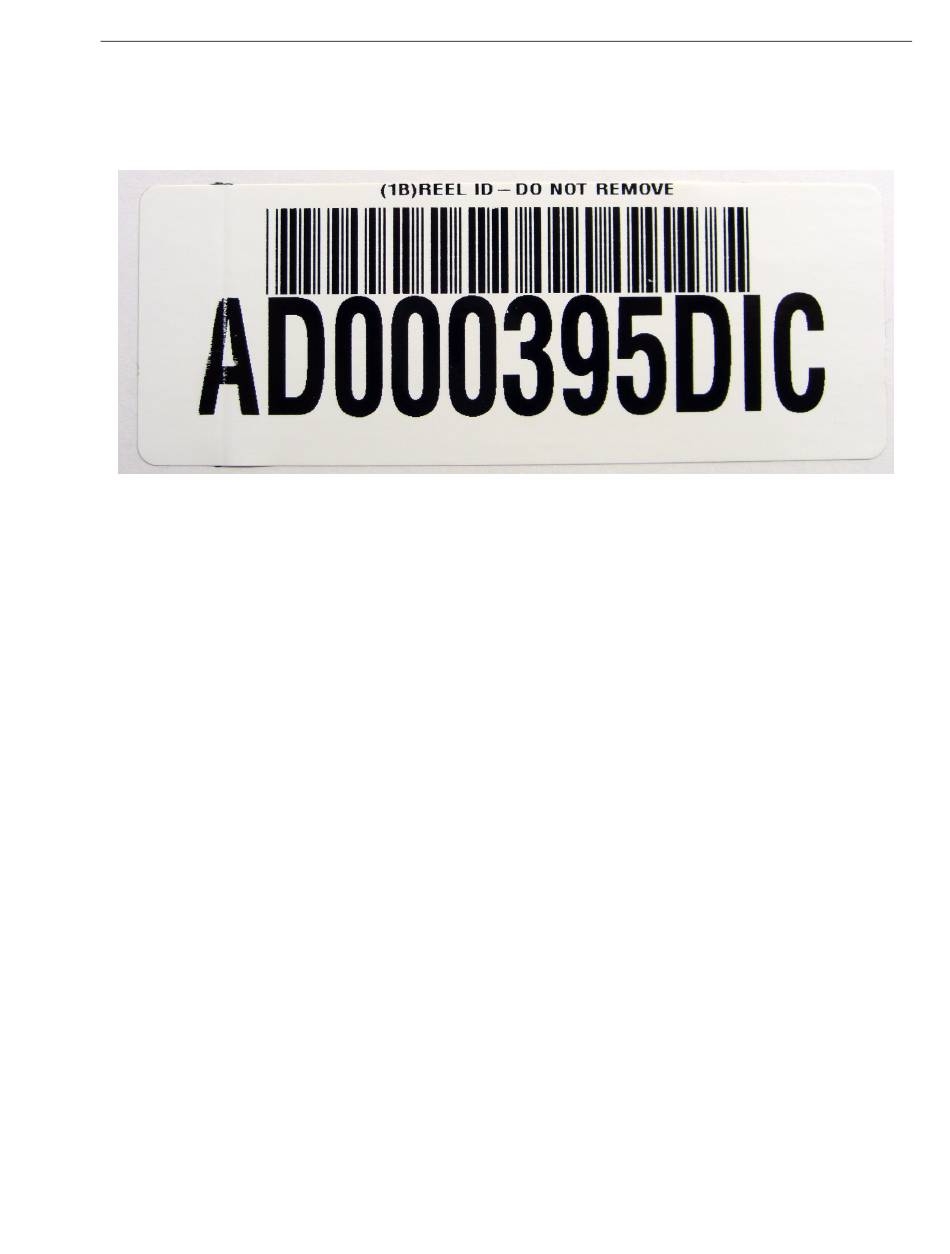

Typical S/N barcode found on each on reel is shown in

2 PLACEMENT

ADC ATS cable placement follows standard fiber placement methods.
Installers must be aware of the pull-load limits for the cables:
• Minimum bend radius is 20 x cable OD (Dynamic) or 10 x cable OD (Static)
• Distribution cable - 600lb
• Access point tether - 100lb
The ADC ATS cables are capable of several placement methods:
• lash to pre-existing cable or dedicated messenger - single pass
• lash to pre-existing cable or dedicated messenger - two-pass
• self-supporting
• underground - direct-buried
• underground - conduit
As described earlier, slack loops are built into distribution cables where measurements are not
precise. Slack loops make it possible to adjust for measurement discrepancies.
1. CAREFULLY remove shipping wrap from spool
2. Check the CO side label for correct cable ID, etc. See
Figure
Figure 9. Reel ID Label
Figure 10
ADCP-96-099 • Issue 1 • July 2007
9:
for a sample label.
© 2007, ADC Telecommunications, Inc.
Page 5
