Harper MultiLoader Operator And Parts Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MultiLoader
Operator and Parts
Manual
Multi-Loader
2-2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiLoader and is the answer not in the manual?

Questions and answers

Related Manuals for Harper MultiLoader

Summary of Contents for Harper MultiLoader

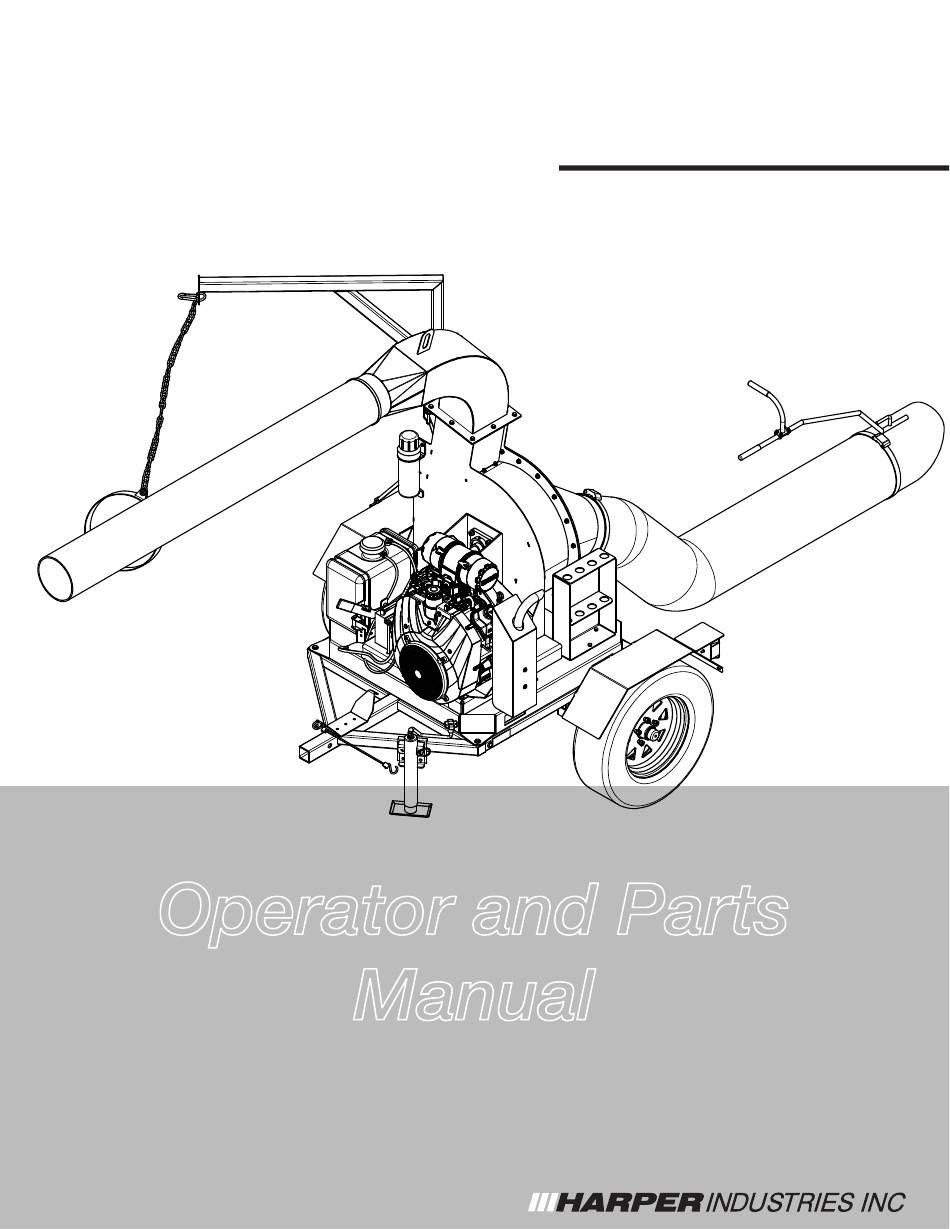

  • Page 1 MultiLoader Operator and Parts Manual Multi-Loader 2-2020...
  • Page 2 Multi-Loader...
  • Page 3 MEANING: Failure to understand and obey this warning may result in injury to you or others. Whenever this symbol is used, please pay very close attention to the information presented, and make sure you fully understand. If you do not, contact your dealer or Harper Industries, Inc. for clarification.
  • Page 4 Harper Industries or at the manufacturing plant in Harper, KS. A part will be replaced after inspection discloses it to have been defective. This warranty does not apply to defects caused by damage or unreasonable use (includ- ing failure to provide reasonable and necessary maintenance, or by performing functions without genuine Harper MultiLoader accessories) while in the possession of the consumer.

  • Page 5: Table Of Contents

    Table of Contents OPERATOR SECTION To the Owner or Operator..........Warranty Statement............Table of Contents............Specifications..............Feature Identification............ Safety Guidelines Gasoline............Guards & Shields..........Safety Decals........... Operation & Towing Beginning Operation......... Adjusting the Hose........... Clogged Hose........... Clogged Housing or Outlet Spout..... Adjusting the Belt Tensioner Handle....

  • Page 6: Specifications

    Specifications Engine 32.5 Hp Kohler CH940 Engine Oil see Kohler engine manual at www.kohlerengines.com Starter Electric Fuel and Capacity Gasoline - 6 gal (no gas blend above e10 per Kohler guidelines) Inlet Hose 12 inch x 10 foot Outlet Diameter 8 inch Weight 1300 lbs...

  • Page 7: Feature Identification

    Feature Identification OUTLET SPOUT HOSE ASSIST BELT GUARD ENGINE INLET HOSE BELT TENSIONER SKID WELDMENT TRAILER Belt Guard - keeps the belt from being exposed and creates a safer working environ- ment. Belt Tensioner - tensions belt to proper function. Engine - 32.5 HP Kohler CH940 gasoline Skid Weldment - is the frame of the Multi- engine.

  • Page 8: Safety Guidelines

    arrestor and pressure relief valve in Safety Guidelines pour spout). • Gasoline fumes are heavy and will sink to the lowest point, collecting and • Use genuine factory parts or parts becoming more and more hazardous. with equivalent characteristics, includ- 1 part gasoline in 20 parts air will ex- ing type, strength, and material.

  • Page 9: Operation & Towing

    To begin operation: Operation & Towing • Prime the primer bulb until it is firm. - Be sure that the choke is on for the first turn over. • Remove the choke and throttle to SAFETY WARNING! maximum. • Wear approved eye and ear protec- •...

  • Page 10: Adjusting The Hose

    SAFETY WARNING! Adjusting the Hose Assist Properly having the hose assist attached to Larger or heavier objects have the ability to cause damage to the machine and/or to the inlet hose will prevent most hose clogs the operator. from happening and maximize the Multi- Loader’s performance by keeping the hose straight and perpendicular to the housing.

  • Page 11: Towing/Transport

    Towing/Transport LOCKING PIN SIDE BUNGIE BRACKET FRONT BUNGIE BRACKET When readying for transport, wrap the inlet hose around the side of the machine and rest it on the front bungie bracket and attach the bungie around the hose. There is a second bungie bracket on the side to better secure the hose for transport as well.

  • Page 12: Service And Maintenance

    • See the Kohler operation and service manual located at www.kohlerengines.com for the 32.5 Hp Kohler CH940. • For the MultiLoader, Harper Industries recommends the following: Daily or Before Starting Engine Check engine oil level..........add as needed Check fuel level............

  • Page 13: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Abnormal vibration • Loose or out of balance • Check impeller and replace if impeller necessary. • Loose engine. • Check engine and tighten down as needed • Loose belt. • Check belt and adjust pullies as needed to tighten belt.
  • Page 14 Multi-Loader...

  • Page 15: Parts Section

    PARTS SECTION Multi-Loader...
  • Page 16 Multi-Loader...

  • Page 17: Engine Assembly

    Table of Contents PARTS SECTION Engine Assembly..........Hose Assist............Inlet Hose and Fan Assembly......Belt Line............Belt Tensioner........... Outlet..............Trailer Assembly..........Trailer Attachment..........Decal Locations..........Attachments............. Outlet Options..........Shields.............. Multi-Loader...
  • Page 18 Multi-Loader...
  • Page 19 Multi-Loader...
  • Page 20 Multi-Loader...
  • Page 21 Multi-Loader...
  • Page 22 Multi-Loader...
  • Page 23 Multi-Loader...
  • Page 24 Multi-Loader...
  • Page 25 Multi-Loader...
  • Page 26 Multi-Loader...
  • Page 27 Multi-Loader...
  • Page 28 Multi-Loader...
  • Page 29 Multi-Loader...
  • Page 30 Multi-Loader...
  • Page 31 Multi-Loader...
  • Page 32 NOTES Harper Industries, Inc. Telephone: 620-896-7381 151 E. Highway 160 Toll-Free: 800-835-1042 Harper, KS 67058 Fax: 620-896-7129 Website: www.harperindustries.com E-mail: info@harperindustries.com Multi-Loader...
