USER GUIDE

Elo Touch Solutions

Interactive Digital Signage Computer Module

For

IDS 3201L/4201L/7001L

SW602000 Rev A

Table of Contents

Need help?

Do you have a question about the IDS 3201L and is the answer not in the manual?

Questions and answers

Summary of Contents for Elo Touch Solutions IDS 3201L

Page 1 USER GUIDE Elo Touch Solutions Interactive Digital Signage Computer Module IDS 3201L/4201L/7001L SW602000 Rev A...
Page 2 Elo Touch Solutions, Inc. Disclaimer The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its affiliates (collectively "Elo") makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
Page 3: Table Of Contents
Table of Contents Chapter 1 - Introduction ................4 Chapter 2 – Unpacking ................5 Chapter 3 – Computer Module Installation ........6 Chapter 4 – Technical Support ............... 11 Chapter 5 – Safety & Maintenance ............12 Chapter 6 – Regulatory Information ...........
Page 4: Chapter 1 - Introduction

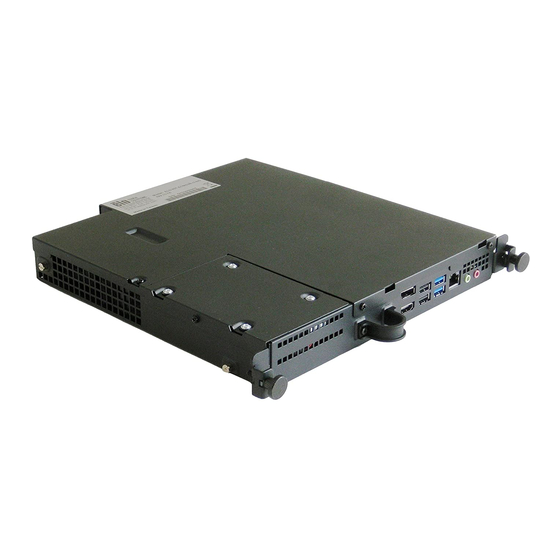

Chapter 1 - Introduction Product Description Interactive Digital Signage Computer Module Gen 2 is designed to slide into the bay on the rear of the Interactive Digital Signage Gen 2 touchmonitors, without any effect on the monitor’s form factor or requiring any extra cabling, turning your Interactive Digital Signage TouchMonitor into an Interactive Digital Signage All-In-One TouchComputer.
Page 5: Chapter 2 - Unpacking
Chapter 2 – Unpacking Unpacking the The Digital Signage Computer Module Check that the following items are present and in good condition: • Computer Module • User Guide/ Driver CD • Quick Install Guide • PC Box Cable Cover User Guidel–Computer Module SW602000 A, Page 5 of 20...
Page 6: Chapter 3 - Computer Module Installation
Chapter 3 Computer Module Installation Installation 1. Use a Phillips head screwdriver to remove the access cover plate on the back of the touchmonitor. 2. Slide the Computer Module all the way into the bay until it snaps into place. 3.
Page 7 Connector Panel & Interfaces Touchmonitor & Computer Module Connections 1. Once the Computer Module has been installed, connect the AC power cable between the touchmonitor’s POWER IN connector and the AC power source. NOTE: Computer Module can be installed when AC power cable is connected (Hot pluggable).
Page 8 Operating System Setup ® Windows 7 Operating Systems The initial setup of the operating system takes approximately 5 minutes. Additional time might be needed for different touchcomputer hardware and operating system configurations. You will need to plug in an external mouse and/or keyboard into the Computer Module connector panel to execute these steps.
Page 9 Selecting the Time Zone When the following window appears, you can change the Computer Module’s time zone, date, and time. After making any changes, click Next to finish. Windows Setup completes the OS installation. User Guidel–Computer Module SW602000 A, Page 9 of 20...
Page 10 • The latest versions of our touch drivers • Additional touch driver information • Detailed touch driver installation guides • Touch drivers for other operating systems Download and install the required touch driver from the Elo Touch Solutions website www.elotouch.com. User Guidel–Computer Module SW602000...
Page 11: Chapter 4 - Technical Support
Chapter 4 – Technical Support If you are experiencing trouble with your touchmonitor, refer to the following suggestions. If the problem persists, please contact your local dealer or contact Elo Touch Solutions Customer Service. Solutions to Common Problems Problem Suggested Troubleshooting...
Page 12: Chapter 5 - Safety & Maintenance
The slots located on the sides and top of the touchmonitor case are for ventilation. Do not block or insert anything inside the ventilation slots. Ensure that your installation is equipped to maintain the specified environmental conditions listed in the unit’s specifications on the Elo Touch Solutions website www.elotouch.com. Environmental conditions for transportation and storage Temperature: Operating 0°C to 40°C...
Page 13 Operating System Recovery - Windows 7 If for any reason the computer module operating system and software need to be recovered TO FACTORY SETTINGS, using Elo recovery utility you can recover your system: 1. When you turn on the computer module after the Elo logo shows up, press F8 repeatedly to enter Advanced Boot Options.
Page 14 Windows 7 Professional only allows the use of one language at one time. But you can use the Elo Touch Solutions language injection tool to update your language preference. English is set as the default language, but you can change this language to suit your preferences.
Page 15 5. Click Inject, and the following window will pop out. 6. Click the drop-down list and select the preference language. 7. Click Inject Selected Language 8. The following window will be presented: User Guidel–Computer Module SW602000 A, Page 15 of 20...
Page 16 9. After the language package is installed correctly, press any key to exit this window. 10. Click Exit Exit Restart User Guidel–Computer Module SW602000 A, Page 16 of 20...
Page 17: Chapter 6 - Regulatory Information
Chapter 6 - Regulatory Information I. Electrical Safety Information: Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
Page 18 iii) Reorient the affected receiver’s antenna. iv)Plug the digital device into a different AC outlet so the digital device and the receiver are on different branch circuits. v) Disconnect and remove any I/O cables that the digital device does not use.(Unterminated I/O cables are a potential source of high RF emission levels.) vi)Plug the digital device into only a grounded outlet receptacle.
Page 19: Chapter 7 - Warranty
Chapter 7 – Warranty Information Except as otherwise stated herein, or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the touchmonitors, Computer Module, and their components is 3 (three) years.
Page 20 Fax +32(0)(16)35-2101 Fax +81(45)478-2180 Fax 305-931-0124 Menlo Park, CA 94025 elosales@elotouch.com www.tps.co.jp www.elotouch.com.ar Tel 800-ELO-TOUCH Tel 800-557-1458 Tel 650-361-4800 Fax 650-361-4722 customerservice@elotouch.com Copyright 2013 Elo Touch Solutions, Inc. All rights reserved. User Guidel–Computer Module SW602000 A, Page 20 of 20...

This manual is also suitable for:

Ids 4201l Ids 7001l
