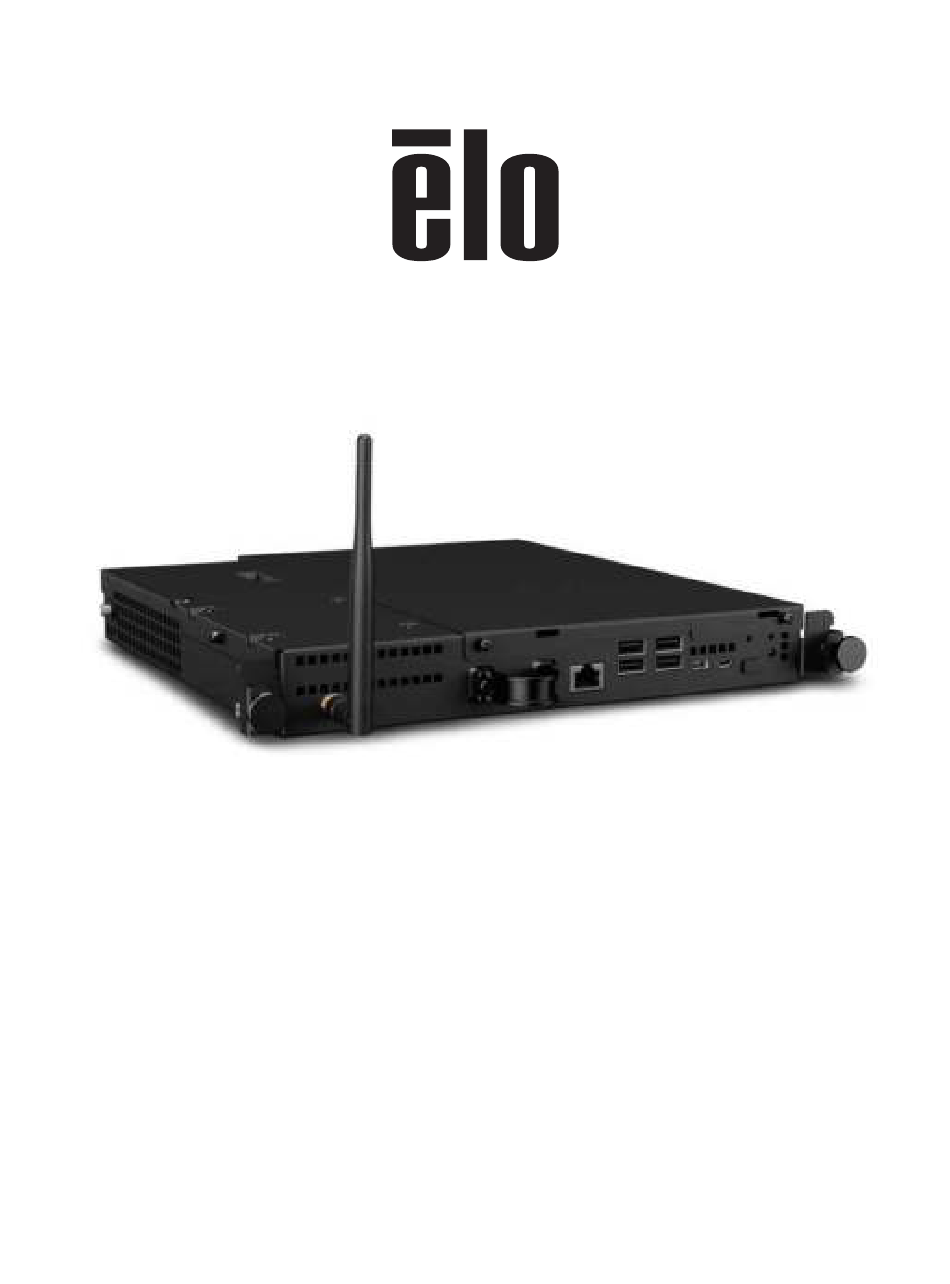

- Page 1 USER GUIDE Elo Touch Solutions Interactive Digital Signage Android Computer Module IDS 3201L / 4201L / 5501L / 5501LT / 7001L / 7001LT / 3202L / 4202L / 4602L UM600069 Rev B...
- Page 2 Elo Touch Solutions, Inc. Disclaimer The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its affiliates (collectively "Elo") makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
-
Page 3: Table Of Contents
Table of Contents Chapter 1: Product Overview ............4 Chapter 2: Unpacking ..............5 Chapter 3: Computer Module Installation ........6 Chapter 4: Technical Support ............15 Chapter 5: Safety & Maintenance ..........17 Chapter 6: Regulatory Information .......... -
Page 4: Chapter 1: Product Overview

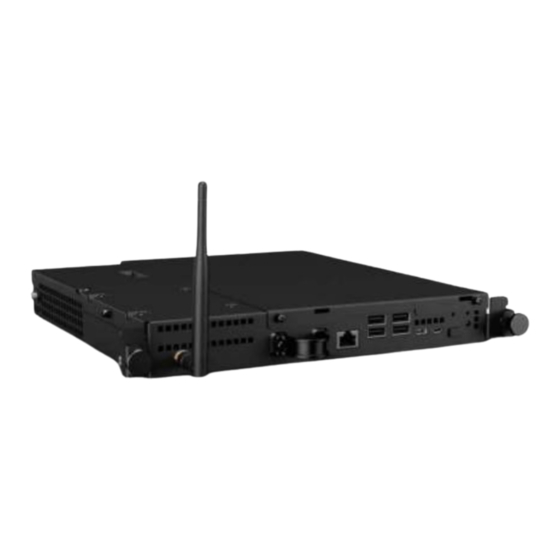

Chapter 1: Product Overview Product Description The Android Interactive Digital Signage Computer Module (AECMG) is designed to slide into the bay on the rear of the Interactive Digital Signage Generation 2 (IDS 01) touchmonitors, without any effect on the monitor’s form factor or requiring any extra cabling, turning your Interactive Digital Signage TouchMonitor into an Interactive Digital Signage All-In-One TouchComputer. -
Page 5: Chapter 2: Unpacking
Chapter 2: Unpacking Unpacking the Digital Signage Computer Module Check that the following items are present and in good condition: Computer Module Quick Install Guide PC Box Cable Cover User Guide – ELO-KIT-ECMG2-AND UM600069 B, Page 5 of 25... -
Page 6: Chapter 3: Computer Module Installation
Chapter 3: Computer Module Installation Installation 1. Use a Phillips head screwdriver to remove the access cover plate on the back of the touchmonitor. 2. Slide the Computer Module all the way into the bay until it snaps into place. 3. - Page 7 Connector Panel & Interfaces Touchmonitor & Computer Module Connections 1. Once the Computer Module is installed onto the touchmonitor, plug the AC power cable to the touchmonitor. NOTE: Computer Module can be installed when the AC power cable is connected (Hot pluggable).
- Page 8 Operating System Setup – Android Android version 4.4 will be pre-loaded on the system. Gesturing Images: For multi-touch monitors, the following gestures are possible: Swipe – Placing one finger on screen and moving the finger across the screen Function example: dragging an icon, swiping to browse through pictures Pinch-Zoom –...
- Page 9 User Guide – ELO-KIT-ECMG2-AND UM600069 B, Page 9 of 25...
- Page 10 Physical Button Functionality Button Available Adjustment Press to return to the Home page Home Button When running EloView, press and hold for 8-10 seconds to open Control Panel. Audio By default, audio setting is set to "ECM Line-in" on Elo IDS OSD menu and to Android ECM Setting >...
- Page 11 Wi-Fi + Bluetooth The following protocols are supported for Wifi and Bluetooth: Bluetooth 4.0+EDR Class 2, A2DP/ HID (Keyboard/Mouse), SPP (printer), Barcode scanner (HID/SPP) support. IEEE 802.11b/g/n; WEP/WPA/WPA2 capable iBeacon capable Note: Due to interferences between Wi-Fi and Bluetooth signal with monitor, Wi-Fi and Bluetooth signal from computer module may be weak in certain areas in front of the monitor.
- Page 12 User Guide – ELO-KIT-ECMG2-AND UM600069 B, Page 12 of 25...
- Page 13 General Purpose Input / Output (GPIO) Support The AECM supports a GPIO which can be used under the following conditions: Max Voltage: 5V Max Current: 200mA There are two input connections and one output connection. Pin 1: 5 Volt output connection Pin 2: Input connection 1 Pin 3: Input connection 2 Pin 4 and Pin 5 are tied to ground...
- Page 14 Pin 1 USB On-The-Go (OTG) USB OTG is supported via the micro-USB connector located in the following position. Note: Improper use of this connector may break the connector. User Guide – ELO-KIT-ECMG2-AND UM600069 B, Page 14 of 25...
-
Page 15: Chapter 4: Technical Support
Chapter 4: Technical Support If you are experiencing trouble with your touchmonitor, refer to the following suggestions. If the problem persists, please contact your local dealer or contact Elo Touch Solutions Customer Service. Solutions to Common Problems Problem Suggested Troubleshooting... - Page 16 Technical Assistance Visit www.elotouch.com/go/websupport for online self-help. Visit www.elotouch.com/go/contactsupport for technical support. See this user manual’s last page for worldwide technical support phone numbers. Technical assistance for Computer Modules running Windows OS are also available on the computer in the Support Information section of the Systems Properties menu. The Systems Properties menu can be accessed by: 1.
-
Page 17: Chapter 5: Safety & Maintenance
Chapter 5: Safety & Maintenance Safety To avoid risk of electric shock, follow all safety notices and do not disassemble the touchmonitor or Computer Module. They are not user-serviceable. The slots located on the sides and top of the touchmonitor case are for ventilation. Do not block or insert anything into the ventilation slots. - Page 18 Caution There is risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries at the end of its useful life according to local laws and regulations. Waste Electrical & Electronic Equipment Directive (WEEE) This product should not be disposed of with household waste. It should be deposited at a facility that enables recovery and recycling.
-
Page 19: Chapter 6: Regulatory Information
Chapter 6: Regulatory Information I. Electrical Safety Information: Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connecting a device to a power source that does not meet requirements other than those specified herein may result in improper operation, damage to the equipment or pose a fire hazard. - Page 20 Notice to Users in Canada: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
- Page 21 b) To ensure compliance, use only the provided manufacturer’s approved line cord. c) The user is cautioned that changes or modifications to the equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 22 This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. Notice to Users in Canada: This equipment complies with the Class A limits for radio noise emissions from digital apparatus as established by the Radio Interference Regulations of Industrial Canada. IC RSS-102 RF exposure limits set forth for an uncontrolled environment.
- Page 23 IV. Agency Certifications The following certifications and marks have been issued or declared for this monitor: Europe CE Canada CUL, IC United States FCC, UL User Guide – ELO-KIT-ECMG2-AND UM600069 B, Page 23 of 25...
-
Page 24: Chapter 7: Warranty Information
Chapter 7: Warranty Information For warranty information, go to http://www.elotouch.com/Support/warranty.asp User Guide – ELO-KIT-ECMG2-AND UM600069 B, Page 24 of 25... - Page 25 Upcoming events Press releases Software drivers Getting in Touch with Us To find out more about the extensive range of Elo touch solutions, visit our website at www.elotouch.com, or simply call the office nearest you: North America Tel 800-ELO-TOUCH...
