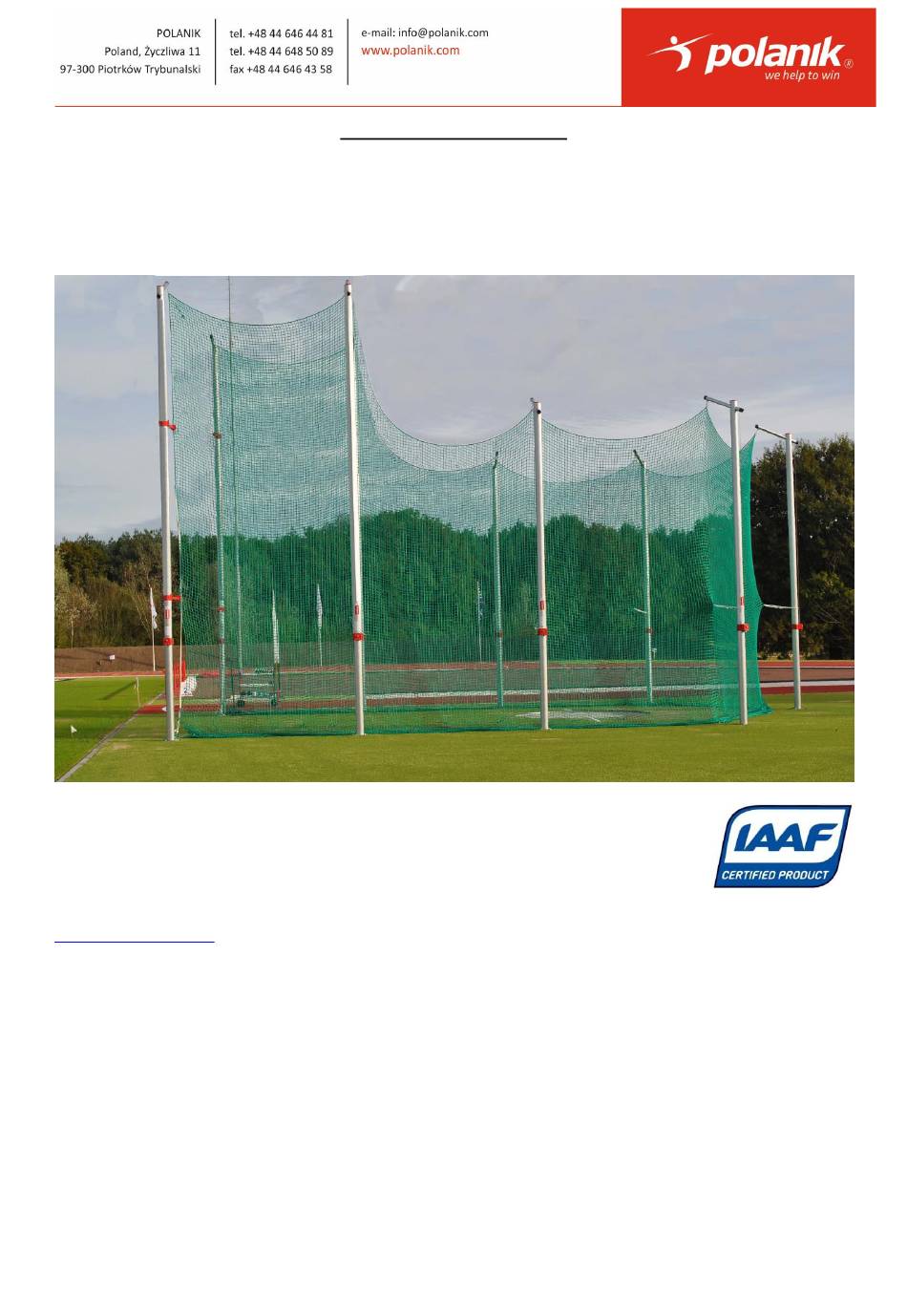

- Page 1 INSTRUCTION MANUAL Safety cage for discus throw KLD17-5/7-A File: 2018-03-09 PRODUCT SUPPORT Pawel Ciechanowski p.ciechanowski@polanik.com...
-
Page 2: Safe Assembly And Use
• Before you start to assemble and use the cage please read this manual carefully, watch the enclosed instruction film and store the manual in a safe place for further reference. Polanik Sp. z o. o. shall not be liable for any cage damages which are the result of the failure to follow this manual. -
Page 3: Table Of Contents
Drawing no. 2 – Foundation block of central pillar Drawing no. 3 – Foundation block of extreme pillar Drawing no. 4 – Positions of anchor foundation blocks Drawing no. 5 – KLD17-5/7-A side view IAAF Certificate How to play the attached instructional video I. -
Page 4: Parts (Part Sets) List
Rear pillar (length approx. 5 aluminium and electro- galvanized steel Anodized Central pillar (length approx. aluminium and ~7 m) electro- galvanized steel Anodized Extreme pillar (length approx. aluminium and ~7 m), with guide loop electro- installed galvanized steel Instruction manual KLD17-5/7-A 4/21... - Page 5 16 (1 pc) Electro- Net hooks galvanized steel Side arm Electro- + screw M 8x25 (16 pcs) galvanized steel, + nut M 8 (16 pcs) powder painted +washer 8 (16 pcs) Horizontal stay rope length ~1,6 m Instruction manual KLD17-5/7-A 5/21...
-
Page 6: General Assembly Description
Rear pillar, item 1 Side arm, item 11 Central pillar, item 2 Net rim steel cable, item 8 Standard anchor, item 4 Bottom net tension cable, item 9 Extreme pillar, item 3 Extreme anchor, item 5 Instruction manual KLD17-5/7-A 6/21... -
Page 7: Anchors - Placing In Concrete
(in the first week twice a day, in the second week once a day). You ought to wait minimum 2 weeks before you proceed with the installation of the pillars. Correctly embedded standard anchor Correctly embedded extreme anchor Instruction manual KLD17-5/7-A 7/21... -
Page 8: Pillars Installation
The installation of pillars (item 1, 2 and 3) on anchors (item 4 and 5) is done as follows: unpack delivered pillars remove blocking screws (M 8x16) from the ratchet mechanisms loosen steel ropes, fasten temporarily steel rope loop to lever of ratchet mechanisms. Instruction manual KLD17-5/7-A 8/21... - Page 9 ~2,5 m and the other one at the height of ~5,5 m (the heights are marked on each extreme pillar with blue label bands) see the drawing below. Side arms (item 11) and the extreme pillar arm are to be lined up, and Instruction manual KLD17-5/7-A 9/21...
- Page 10 – side arm (item 11) Extreme pillars (item 3) are mounted on extreme anchors (item 5) in the same way as rear pillars (item 1) and central pillars (item 2) are installed. Instruction manual KLD17-5/7-A 10/21...
-
Page 11: Net Hoisting
Remove the clamp from the other end of the steel rope. Thread the rope end through the loops of the embedded anchors starting from the extreme anchor, use its lower loop Then reinstall the clamp, pull the rope end to tighten it preliminarily. Instruction manual KLD17-5/7-A 11/21... - Page 12 Rear and central pillar rope fastened to cage net. Extreme pillar steel rope fastened to cage net. After linking the net with steel lines of the pillars, we can hoist the net. The lifting of the net should be executed Instruction manual KLD17-5/7-A 12/21...
- Page 13 Auxiliary ropes which are attached to the net edge Properly hooked net on the side arms is extremely important will help you to hook the net without a ladder for correct impact absorption and pillars’ life. Instruction manual KLD17-5/7-A 13/21...
-
Page 14: Final Adjusting
During idle periods the net must be absolutely lowered. Lift the net only for using. • In case of strong winds, during which competition throwing events (see the IAAF rules) and training meetings cannot be conducted, the net must be absolutely lowered. Instruction manual KLD17-5/7-A 14/21... -
Page 15: Technical Drawings
– standard anchor, top view and vertical section, item 4 e – top surface flash with anchor top surface f – synthetic sports surface (optional) g – sand bed Foundation block of rear pillar Drawing no. 1 Instruction manual KLD17-5/7-A 15/21... -
Page 16: Drawing No. 2 - Foundation Block Of Central Pillar
– standard anchor, top view and vertical section, item 4 e – top surface flash with anchor top surface f – synthetic sports surface (optional) g – sand bed Foundation block of central pillar Drawing no. 2 Instruction manual KLD17-5/7-A 16/21... -
Page 17: Drawing No. 3 - Foundation Block Of Extreme Pillar
– extreme anchor, top view and vertical section, item 5 e – top surface flash with anchor top surface f – synthetic sports surface (optional) g – sand bed Foundation block of extreme pillar Drawing no. 3 Instruction manual KLD17-5/7-A 17/21... -
Page 18: Drawing No. 4 - Positions Of Anchor Foundation Blocks
– standard anchor, item 4 b – projection of net c – extreme anchor, item 5 Positions of anchor foundation blocks Drawing no. 4 Instruction manual KLD17-5/7-A 18/21... -
Page 19: Drawing No. 5 - Kld17-5/7-A Side View
KLD17-5/7-A side view Drawing no. 5 Instruction manual KLD17-5/7-A 19/21... -
Page 20: Iaaf Certificate
X. IAAF Certificate Instruction manual KLD17-5/7-A 20/21... -
Page 21: How To Play The Attached Instructional Video
CD main directory and click the file with .exe extension. Minimal hardware requirements: P166 MMX, 32 MB RAM, CD-ROM, VIDEO CARD WINDOWS 9x, NT 4.0, 2000, WINDOWS MEDIA PLAYER QUICK TIME PLAYER WITH QUICK TIME MPEG EXTENSION Instruction manual KLD17-5/7-A 21/21...
