10. Wiring diagram examples

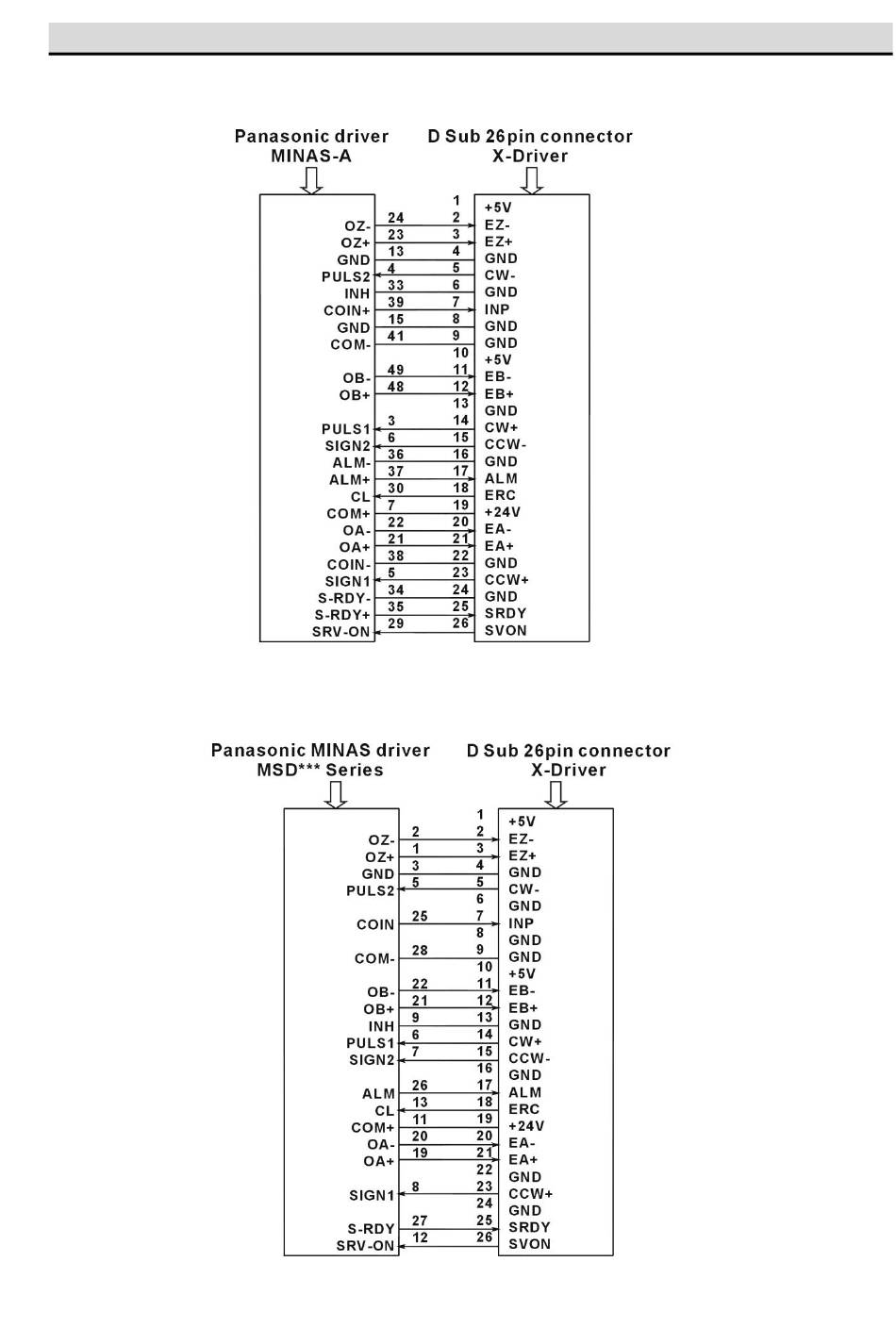

10.1 The wiring diagram for MPC3042A/3042AL wiring board to panasonic MINAS-A driver

10.2 The wiring diagram for MPC3042A/3042AL wiring board to panasonic MINAS MSD***
driver
