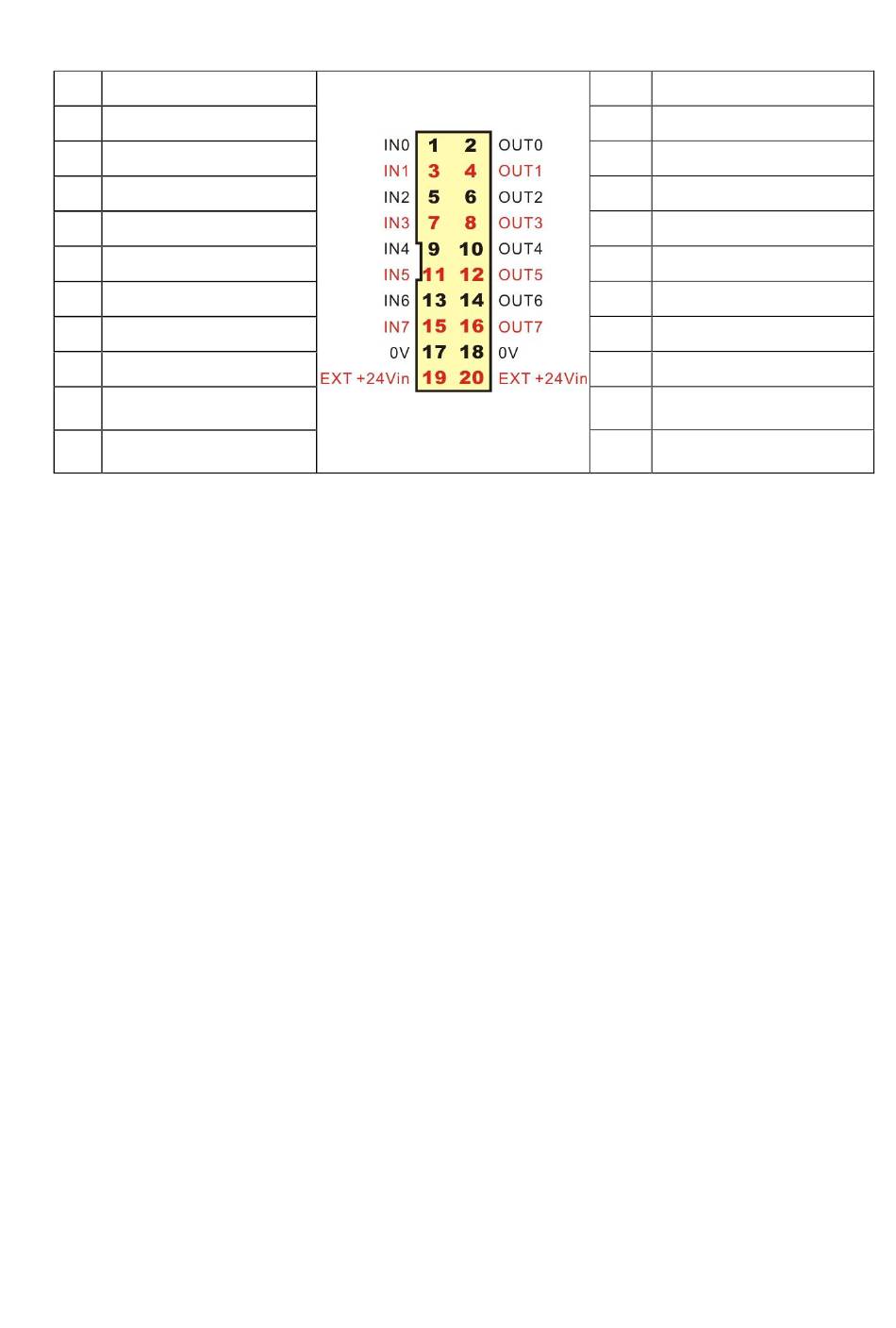

5.5 ADP9201_JM1 Assignment / Definitions

DESCRIPTIONS
PIN
1 IN0: input0
3 IN1: input1
5 IN2: input2
7 IN3: input3
9 IN4: input4
11 IN5: input5
13 IN6: input6
15 IN7: input7
17 DGND: digital ground
(EXTG)
19 +24Ve: external input power
supply
PIN
17
DESCRIPTIONS
2 OUT0:output0
4 OUT1:output1
6 OUT2:output2
8 OUT3:output3
10 OUT4:output4
12 OUT5:output5
14 OUT6:output6
16 OUT7:output7
18 DGND: digital ground
(EXTG)
20 +24Ve: external input power
supply
