8. Hardware settings

8.1 Card ID setting

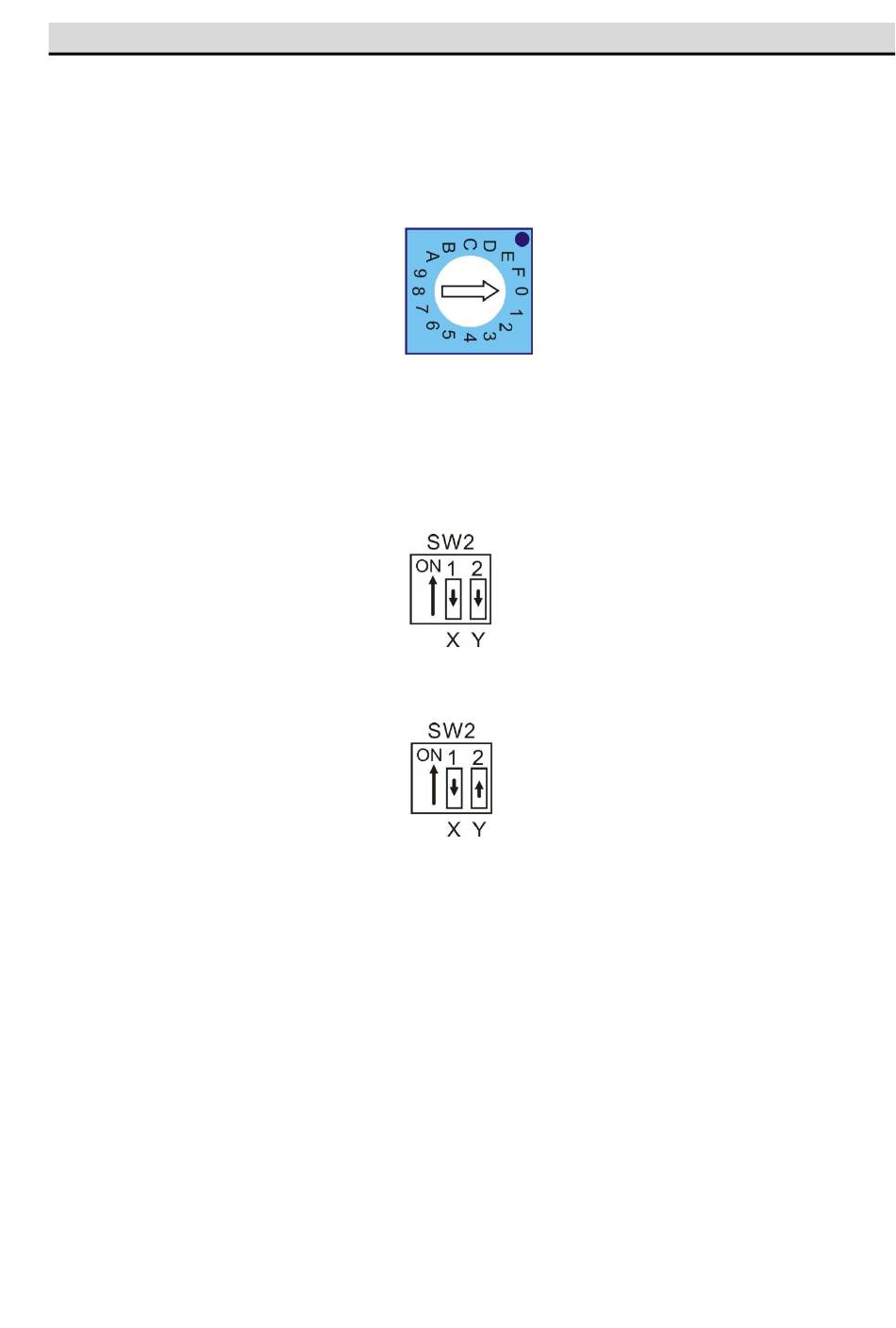

Since PCI cards have plug and play function, the card ID is required for programmer to identify which
card he/she will control without knowing the physical address assigned by the Windows. A 4 bits
ROTARY switch (select from 0 to 0xF )for extinguishing the 16 identical card.

8.2 Polarity setting for over-travel limit switch

For different applications maybe you have different considerations, the polarity of over-travel limit
switch can be set by on card Dip switch to meet your requirement.
Default : X, Y axis are in negative polarity , the DIP switch set as follows.
Example : X axis are in negative polarity and Y axis polarity are positive, the DIP switch set as follows.
