Pushbutton (Single Speed Hoists) - Coffing Hoists EC3 Series Operating, Maintenance & Parts Manual

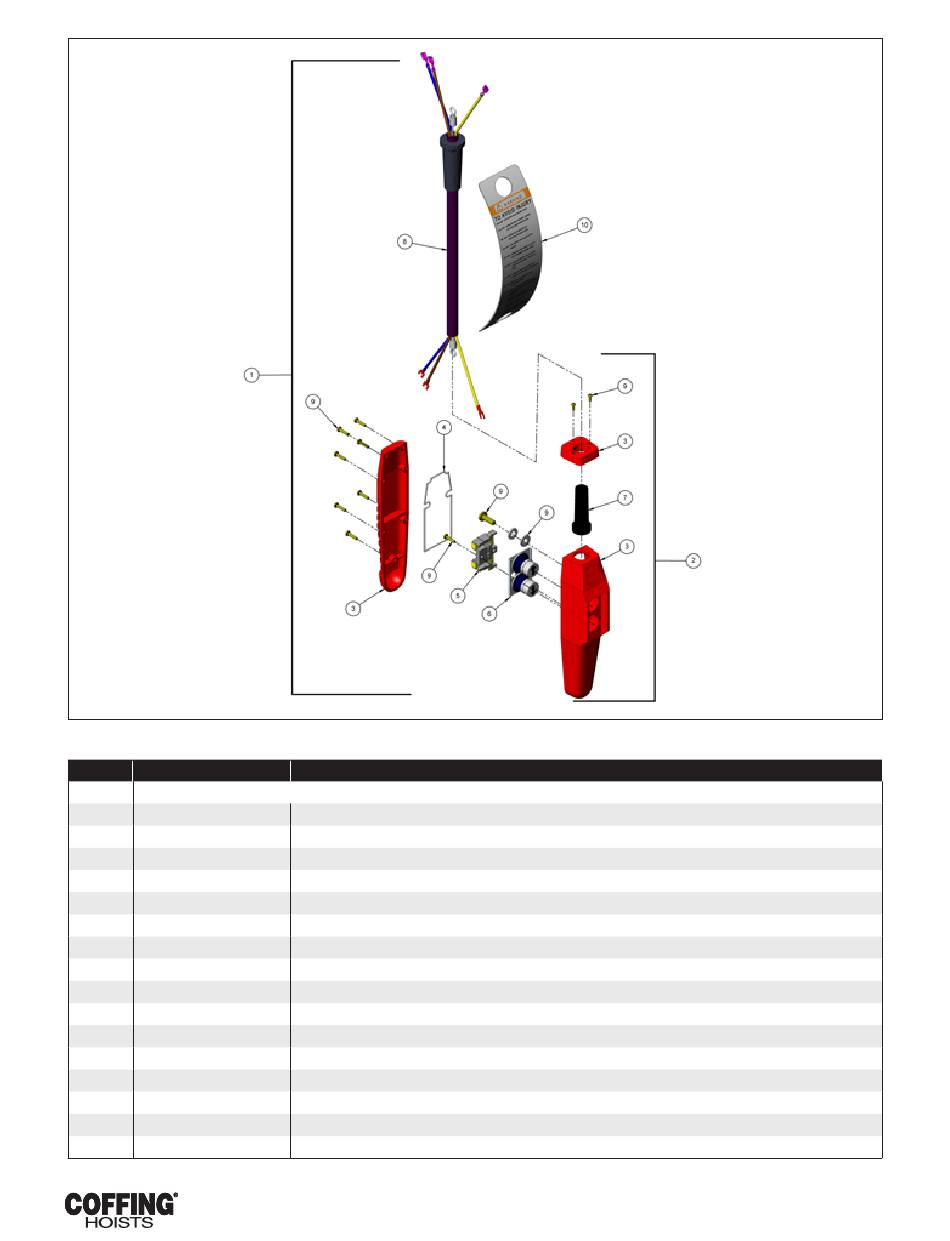

FIGURE 8-10A. PUSHBUTTON (SINGLE SPEED HOISTS)
Ref No P/N
1
PB2100 6
PB2100 11
PB2100 16
PBS2100-*
2 36900R
3 36998R
4 36986
5 36987
6 36988
7 36989
8 PBC2100 6
PBC2100 11
PBC2100 16
PBCS2100 *
9 36939
10 687K3W
Pushbutton Station & Control Cable Assembly (Consists of Ref. No 2-10)
Pushbuton Cable Assembly 6 ft. Cable Length (Consists of Ref No 2-10)
Pushbuton Cable Assembly 11 ft. Cable Length (Consists of Ref No 2-10)
Pushbuton Cable Assembly 16 ft. Cable Length (Consists of Ref No 2-10)
Special Drop (* Equal to the Cable Length)
Push Button Station (Consists Ref. No. 3-7, & 9)
Contact Assembly (Consists of Ref. No. 5 & No.6)
Control Cable Assembly 6 ft. Cable Length
Control Cable Assembly 11 ft. Cable Length
Control Cable Assembly 16 ft. Cable Length
Special Drop (* Equal to the Cable Length)
37
Description
Enclosure
Gasket
Button Assembly
Grommet
Hardware Kit
Warning Tag
EC3-680-3 February 2017
Order # 5041558-0 & 5041679-0
