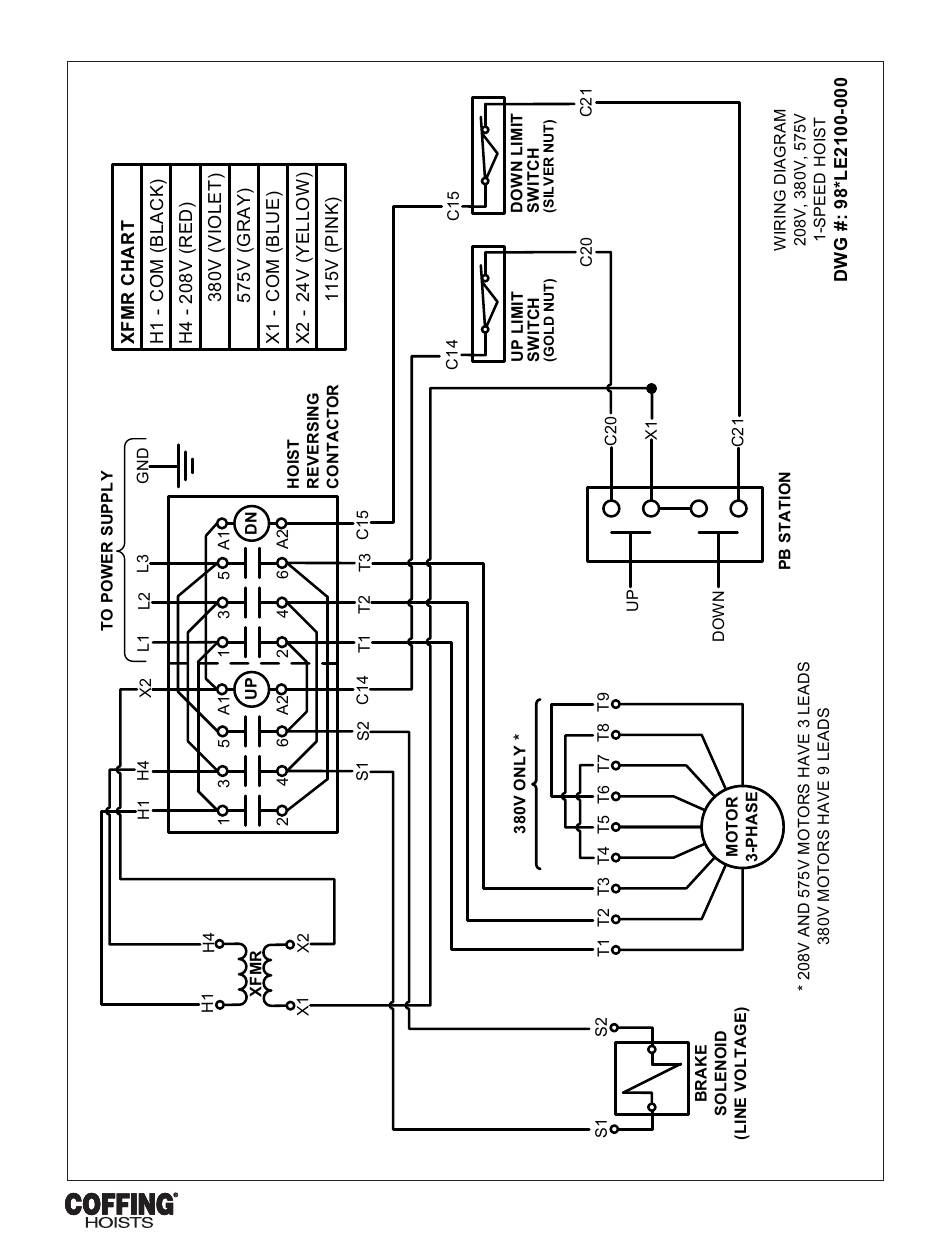

FIGURE 7-2. WIRING DIAGRAM – 208, 380 & 575V, 3 PHASE, SINGLE SPEED HOIAST (WIRING DIAGRAM NO. 98*LE2100-00)
*Factory supplied wiring diagrams will have numbers beginning with 985 for 575C, 987 for 208V and 988 for 380V.
21
EC3-680-3 February 2017
Order # 5041558-0 & 5041679-0
