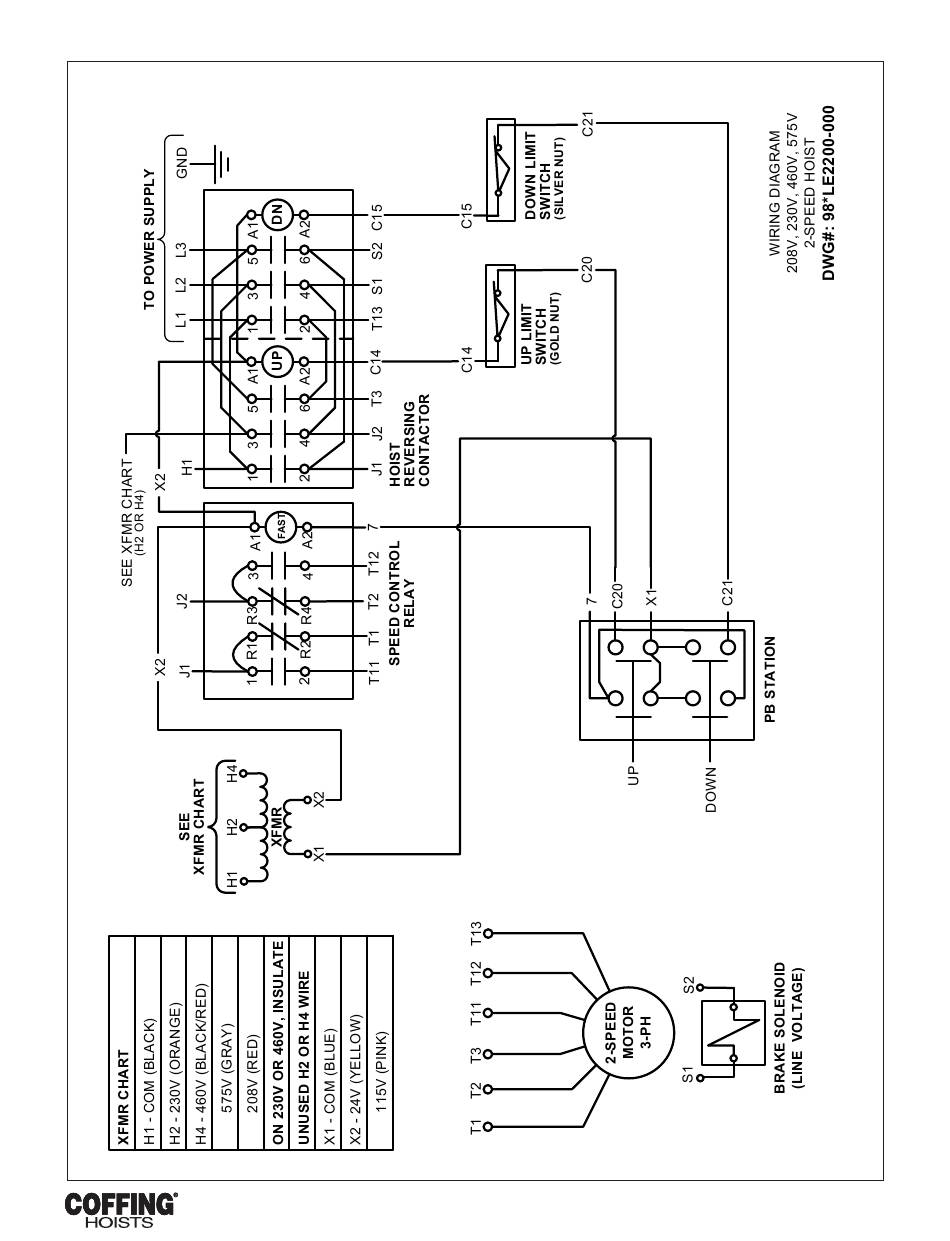

FIGURE 7-3. WIRING DIAGRAM – 230, 460, 575 & 208V, 3 PHASE, TWO SPEED HOIST (WIRING DIAGRAM NO. 98*LE2200-00)
22
EC3-680-3 February 2017
Order # 5041558-0 & 5041679-0
