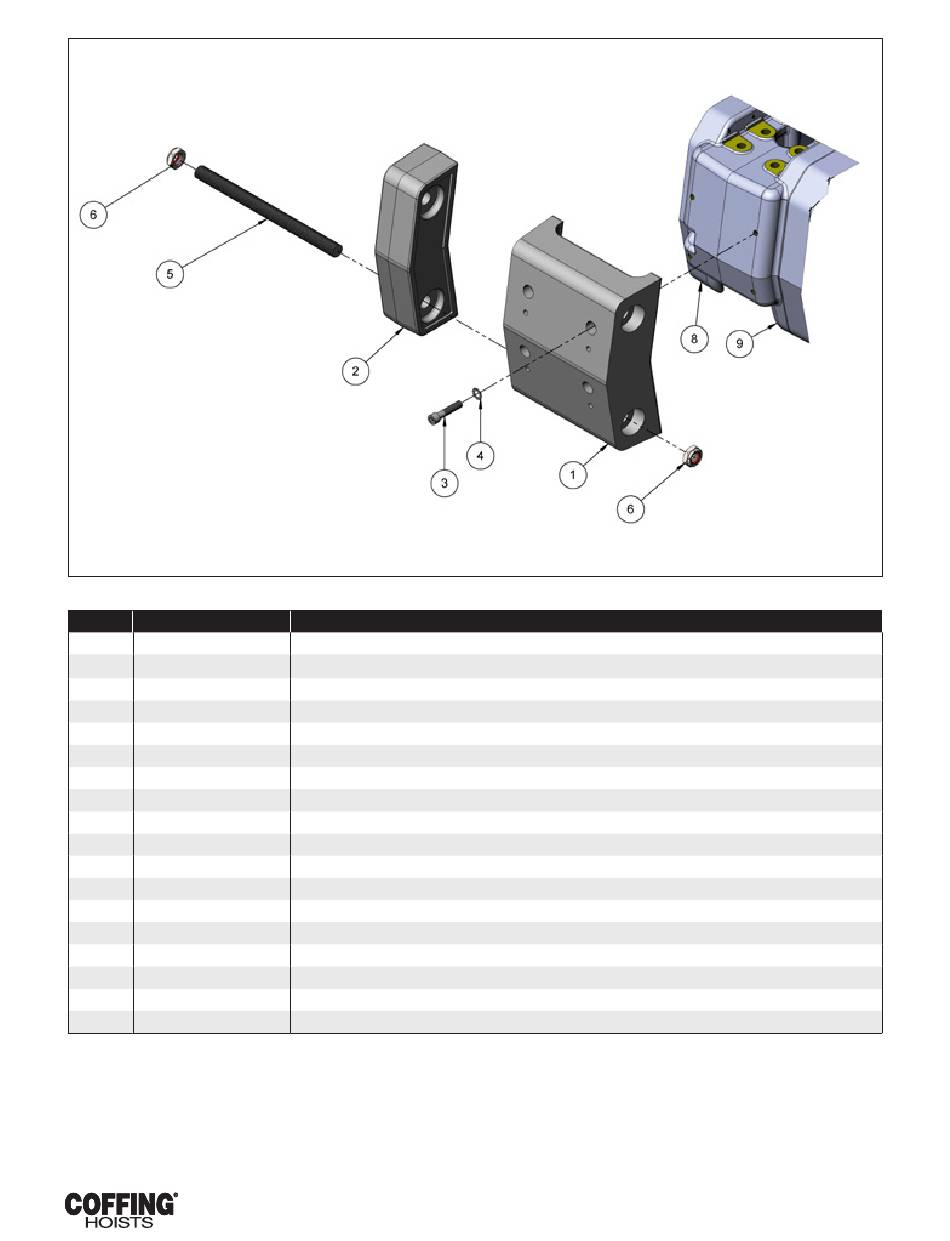

FIGURE 8-9. COUNTERWEIGHTS
Ref No P/N
1 52J2
2 52J3
3 S49 22
4 H4157
5
6 H3947
8
9
10* 12951
11* 12952
12* 12953
13* 12954
14* 12955
15* 12956
16* 12957
17* 12958
18* 12959
19* 12960
* Not Shown
Kit includes counterweights, threaded pins and hardware.
Description
Counterweight (40 lbs)
Counterweight (20 lbs)
socket head cap screw
LockWasher
Pin, Threaded
Nut
Sheave Housing, Motor Side (Reference - See Fig 8-1)
Sheave Housing, Transmission Side (Reference - See Fig 8-1)
Counterweight Kit (40 lbs)
Counterweight Kit (60 lbs)
Counterweight Kit (80 lbs)
Counterweight Kit (100 lbs)
Counterweight Kit (120 lbs)
Counterweight Kit (140 lbs)
Counterweight Kit (160 lbs)
Counterweight Kit (180 lbs)
Counterweight Kit (200 lbs)
Counterweight Kit (220 lbs)
