8-7B Geared Limit Switch Parts - Coffing Hoists EC3 Series Operating, Maintenance & Parts Manual

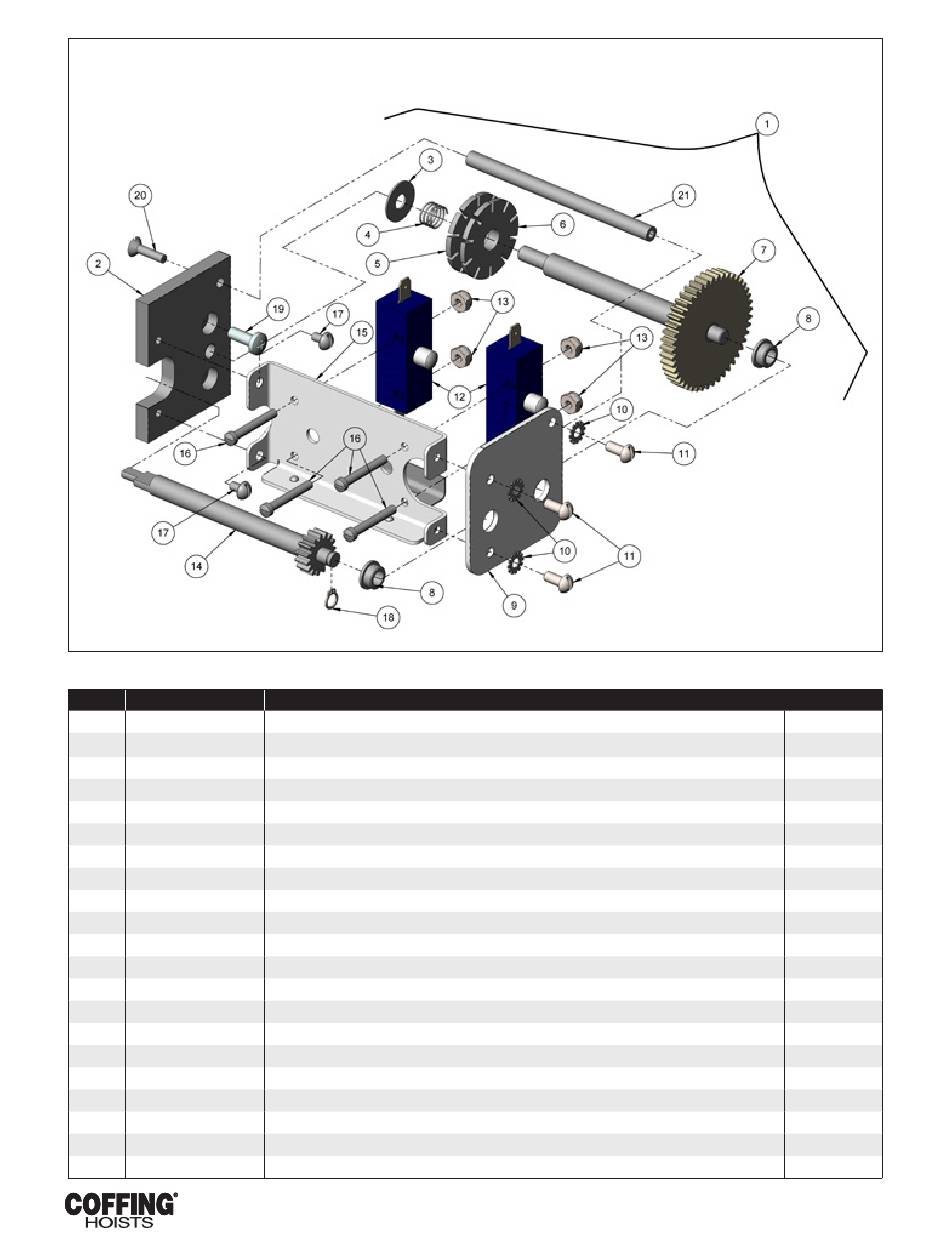

FIGURE 8-7B. GEARED LIMIT SWITCH PARTS USED ON LONG LIFT HOISTS
Ref No P/N
1 944JG6
2 129J1
3 255K l6
4 PB-287
5 SK6000-63Z
6 SK6000-63W
7 117JG2
8 JF531 4
9 258J8
10 H4158
11 H2741P
12 815J1
13 H3944
14 427J1
15 258JG7
16 H1402P
17 854823
18 H5520
19 H2981P
20 H1210
21 110J14
Description
Long Lift Limit Switch Asssembly (all items except 19)
Mounting Plate
Thrust Washer
Spring
Limit Switch Nut (Zinc/Silver)
Limit Switch Nut (Brass/Gold)
Shaft and Gear Assembly
Bushing
End Plate
Lock Washer
Screw
Switch
Locknut
Drive Pinion
Frame and Guide Assembly
Screw
Screw
Retaining Ring
Mounting Screw
Flat Head Screw
Post
34
Qty
1
1
1
1
1
1
1
1
3
3
2
4
1
1
4
2
1
2
1
1
EC3-680-3 February 2017
Order # 5041558-0 & 5041679-0
