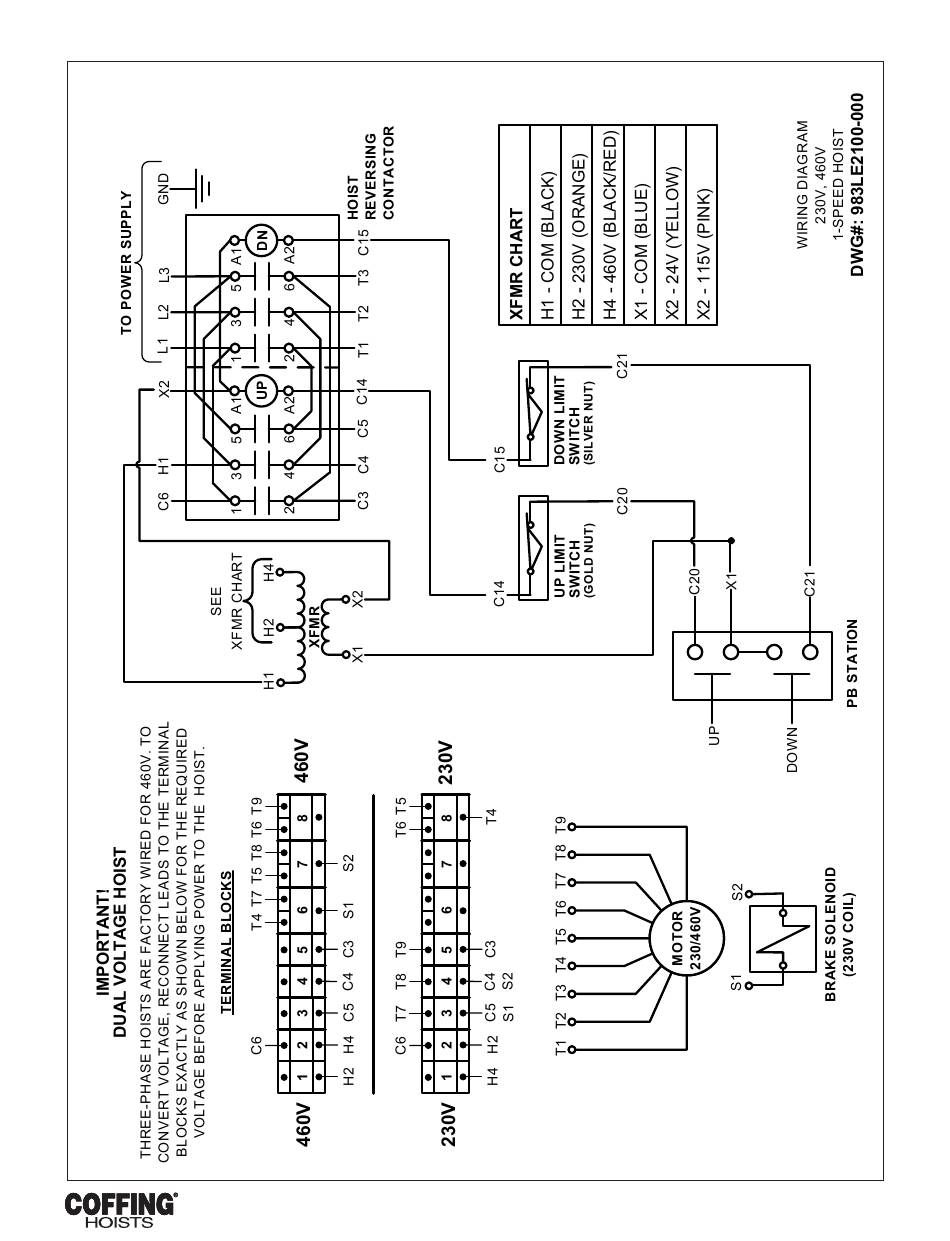

FIGURE 7-1. 230/460V, 3 PHASE, SINGLE SPEED HOIST (WIRING DIAGRAM NO. 983LE2100-000)
20
EC3-680-3 February 2017
Order # 5041558-0 & 5041679-0
