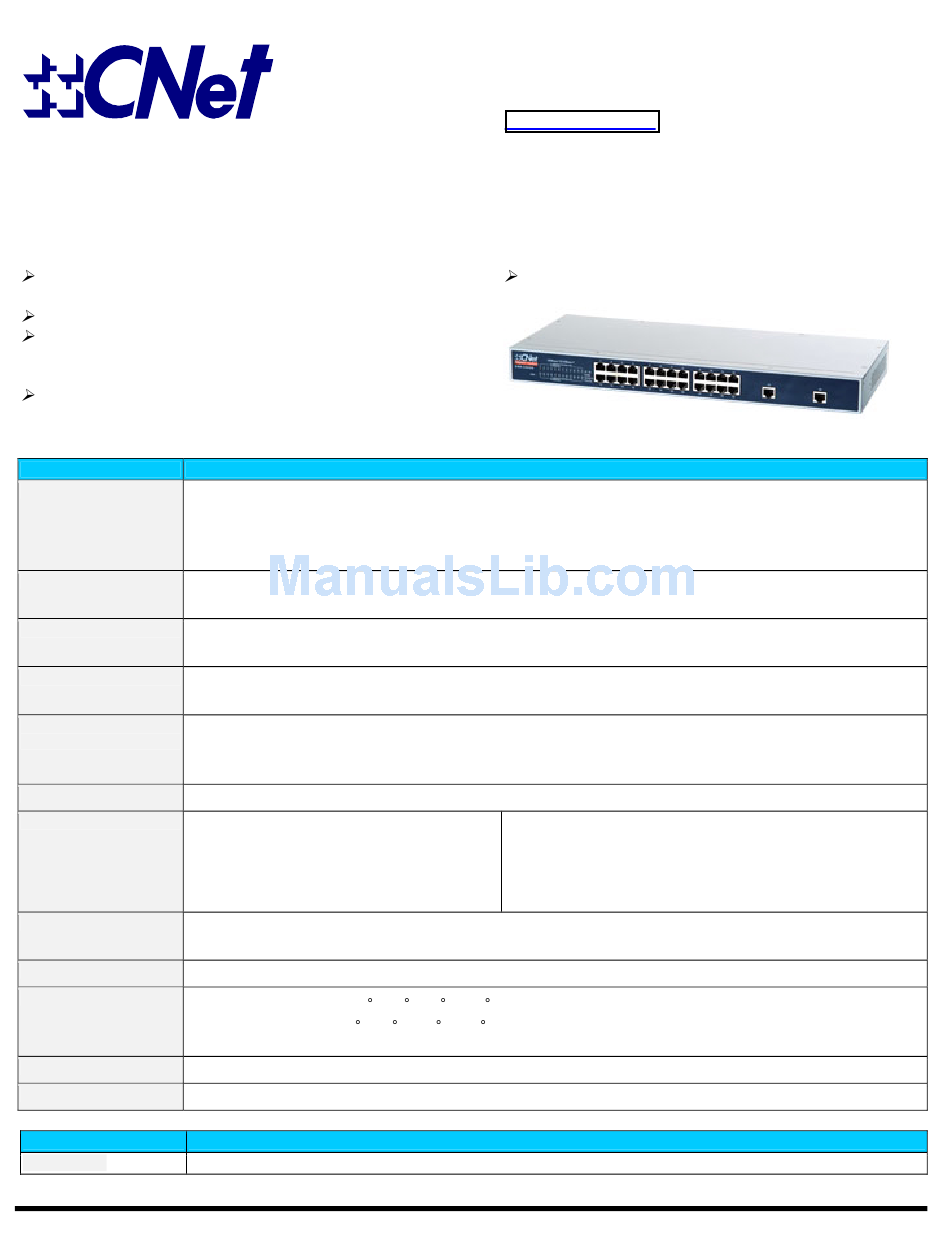

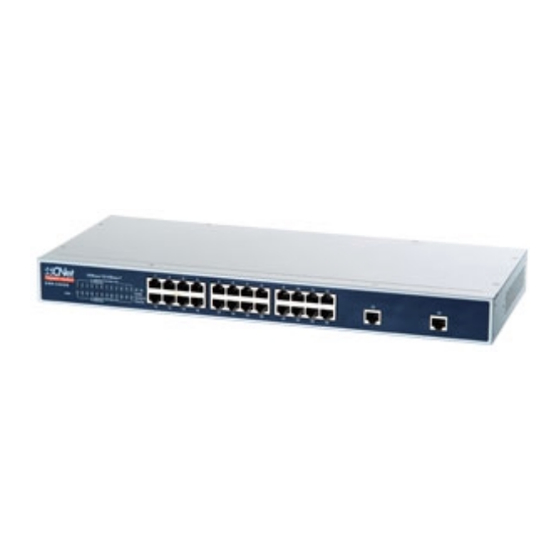

This backbone switch provides 24 fixed 10/100Mbps copper ports plus two fixed 1000 Mbps copper giga ports. Each Gigabit port
is equipped with 2000Mbps Bandwidth, Full-duplex, and Collision Free. This model provides perfect bandwidth versatility for
enterprise and high quality networks.
KEY FEATURES
Auto-negotiation, Half-/Full-duplex and Flow-control
for Flexible and Reliable Control on Packet Transaction
Provide Console Port for Easy Configuration
Support Broadcast Storm Filtering Control and
Trunking Function (8 groups) Enhanced Network-wide
Reliability and Efficiency
Support up to 30 VLAN Groups for Port-based VLAN
and 17 for 802.1Q VLAN Tag
PRODUCT SPECIFICATIONS
Model
Standards
IEEE802.3: 10 BASE-T
IEEE802.3u: 100 BASE-TX
IEEE802.3ab: 1000 BASE-T
IEEE802.3x: Flow-control
Ports
24 100 Mbps Copper Ports
Two 1000Mbps Copper Ports
Media support
10 Mbps: Category 3, 4 or 5 TP
100/1000Mbps: Category 5 TP
Bandwidth
1000 BASE-T: 20/200/2000Mbps
100 BASE-TX: 10/20/100/200Mbps
Forwarding/Filtering
1488100 packets/second per port@1000Mbps maximum
Rate
148810 packets/second per port@100Mbps maximum
14881 packets/second per port@10Mbps maximum
Duplex Modes
Support Auto-negotiation and Auto-MDI/MDI-X functions
LED Indicators
One LED displays PWR status
One Yellow/Green LED per port displays
10/100Mbps LINK/ACT status
One LED per port displays FDX/COL status
Power Supply
Full range Auto-switching
Input voltage: 100~240 +/-10%V AC/50~60Hz
Power Consumption
36.4 Watt maximum
Environment
Operating Temperature: -20 ~ 70 C (-4 ~ 158 F)
Storage Temperature: -40 ~ 80 C (-40 ~ 176 F)
Humidity: 10% ~ 90% Non-condensing
Certifications
CE, FCC
Dimensions
442 x 44 x 185mm (17.4 x 1.73 x 7.28inches)
ORDERING INFORMATION
Model
CSH-2402G (F)
24-Port 10/100Mbps Switch with 2 Fixed 1000Mbps Copper Ports
CWR-854(D)
Specifications are subject to change without notice
CSH-2402G – 24
For port 1 to 24 (10/100Mbps ports):
10/100 + 2
PORT
PORT
www.cnetusa.com
Support Per-port Bandwidth Control and Priority Tag
Insert and Remove Function
CSH-2402G
For port 25, 26 (Copper ports):
One LED per port displays 1000Mbps LINK/ACT status
One Yellow/Green LED per port displays 10/100Mbps LINK/ACT
status
One LED per port displays FDX/COL status
Description
Trademarks & Trade Names belong to their owners
