CNET CNSH-800 Specifications

TOTAL NETWORK SOLUTIONS

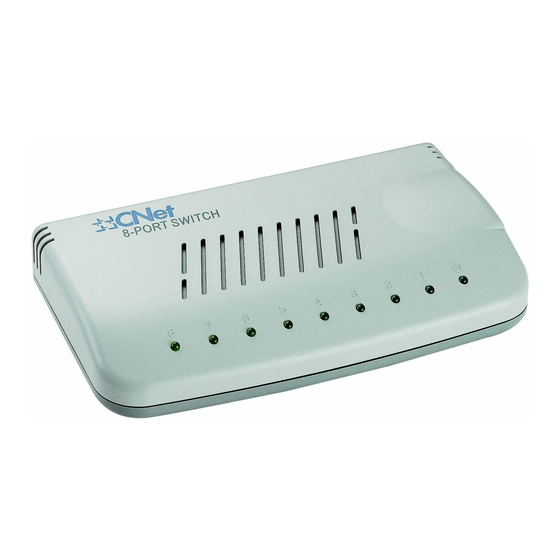

CNet's CNSH-800 is a powerful Eight (8) ports Fast Ethernet Switch. It comes with Eight (8) 100/10Mbps
ports each equipped with a Built-In Auto-Negotiation function. Simply attach a network device to any port and
the port will automatically set the port to operate at the fastest possible speed. This Switch is designed to
provide lots of bandwidth with minimum hassle. They are 100% Plug-&-Play and require no configuration.
These models fully comply with IEEE 802.3u and IEEE 802.3 standards for Fast Ethernet and Ethernet
operation.

KEY FEATURES

Eight (8) independent bandwidths with
10Mbps–200Mbps capability.
Eight (8) ports with Auto-Negotiation function.
Full wire speed Store-and-Forward technology
instantly eliminates bad packets.
All ports support Auto-MDI/MDIX which can
detect and correct crossover cables.
IEEE 802.3u and 802.3 standards compliant.
IEEE 802.3x Flow-Control support for
Full-Duplex operation.
Back-Pressure support for Half-Duplex

SPECIFICATIONS

Mode
l
Standards
Ports
Media Support
Bandwidth
Forwarding/Filtering Rate
Latency
MAC Addresses
Buffer Memory
Duplex Modes
Auto-MDI/MDIX
LED Indicators
External Power Adapter
Power Consumption
Environment
Certifications
Dimensions

ORDERING INFORMATION

Model
CNSH-800 (N)
CNSH-800
PS-0356-B1
Specifications are subject to change without notice
CNSH-800 –Eight ports 100/10Mbps Fast Ethernet Switch
IEEE 802.3u: 100BASE-TX
IEEE 802.3: 10BASE-T
Eight (8) ports 100BASE-TX/10BASE-T
100BASE-TX: Category 5 TP
10BASE-T: Category 3, 4 or 5 TP
100BASE-TX/10BASE-T: 200/100/20/10Mbps, via Auto-Negotiation
148810 packets/second per port @ 100Mbps, maximum
14881 packets/second per port @ 10Mbps, maximum
7.8 sec @100Mbps minimum
65.2 sec @ 10Mbps minimum
1K Six (6)-Bytes MAC address entries (maximum)
Self-Learning
1M bits
All ports support Half-Duplex and Full-Duplex operation
All ports support Auto-MDI/MDIX
One (1) for Power On/Off
One (1) per port for Link/Activity
Output 9VDC, 1Amp (Input according to country)
9W maximum
Operating Temperature: 0 ~ 45 C (32 ~ 113 F)
Storage Temperature: -20 ~ 70 C (-4 ~ 158 F)
Humidity: 10% ~ 90% Non-Condensing
FCC Class B, CE Mark and TUV approved
145 x 85 x 25 mm (5.7 x 3.35 x 0.98 inches)
Eight (8) ports 100/10Mbps Fast Ethernet Switch (Plastic case)
August 2003
www.cnetusa.com
operation.
1M bits Buffer Memory.
Up to 1K MAC Address entry table.
Plug-&-Play with easy to read diagnostic
LEDs.
CNSH-800
Description
Trademarks & Trade Names belong to their owners
