CNET CSH-2400 Product Specifications

TOTAL NETWORK SOLUTIONS

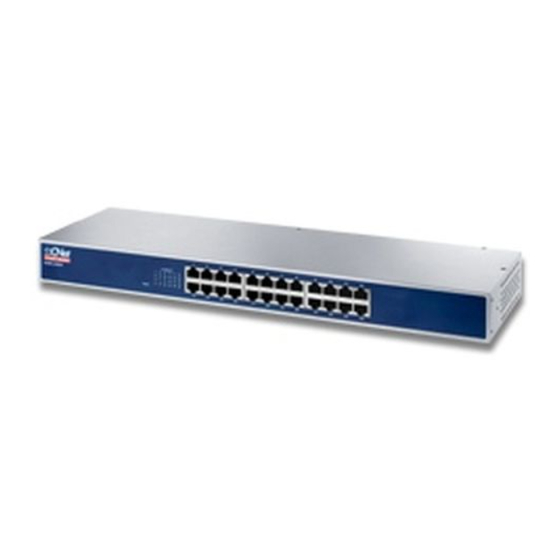

CSH-2400 is CNet's latest 24 port fast Ethernet switch. CSH-2400 provides 24 dedicated 10/100Mbps ports with built-in auto
negotiation feature that senses for the fastest possible speed in communicating with other devices and automatically sets the port to
operate at that speed. The dual speed capability makes the switch the perfect bridge for connecting 100Mbps with 10Mbps
segments.

KEY FEATURES

24 10/100Mbps Switch Ports
Each Port Creates an Independent Network Segment
Support Store-and-Forward Technology
Support IEEE 802.3x Flow-control for Full-duplex and
Back Pressure Flow Control for Half-duplex
Bridging Capability for 100Mbps and 10Mbps Segments
All Ports Support Auto-MDI/MDI-X and Auto-negotiation
Functions
PRODUCT SPECIFICATIONS
Model
Standards
Ports
Media Support
Bandwidth
Forwarding/Filtering Rate
MAC Addresses
Buffer Memory
Duplex Modes
LED Indicators
Power Supply
Power Consumption
Environment
Certifications
Dimensions (L x W x H)

ORDERING INFORMATION

Models
CSH-2400 (J)
Specifications are subject to change without notice
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-TX
IEEE 802.3x: Flow-control for Full-duplex operation
24 Ports 10BASE-T /100BASE-TX
10BASE-T: Category 3, 4 or 5 TP
100BASE-TX: Category 5 TP
10BASE-T: 10/20Mbps
100BASE-TX: 100/200Mbps
14881 packets/second per port @ 10Mbps, maximum
148810 packets/second per port @ 100Mbps, maximum
Embedded 8K MAC Address Table, Self-learning
Embedded 1.25Mbit packet buffer
Support Auto-negotiation and Auto-MDI/MDI-X functions
One LED displays Power status
One LED per port displays Link/ACT status
Internal Full Range Auto-Switching
Input voltage: 100 ~ 240 +/-10% VAC/ 50 ~ 60 Hz
13.2 watt maximum
Operating Temperature: 0° ~ 45°C (32° ~ 113°F)
Storage Temperature: -20° ~ 70°C (-4° ~ 158°F)
Humidity: 10% ~ 90% Non-condensing
CE,FCC
442 x 130 x 44mm(17.40 x 5.12 x 1.73 inches)
24-Port 10/100Mbps Fast Ethernet Switch
CSH-2400 – 24-Port 10/100Mbps Fast Ethernet Switch
www.cnetusa.com
CSH-2400
Description
