CNET CSH-1600 Product Specifications

TOTAL NETWORK SOLUTIONS

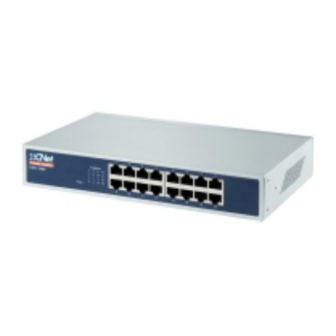

CSH-1600 is a Fast Ethernet Switches capable of bridging 100Mbps and 10Mbps segments and greatly expanding network
bandwidth. Bandwidth expansion is achieved by each of the Sixteen (16) ports creating an independent 10 or 100Mbps network
segment. In addition, each port is equipped with a built-in Auto-negotiation function capable of automatically setting itself to operate
at the fastest possible speed – ranging from 10Mbps to 200Mbps!

KEY FEATURES

=
Independent Bandwidth for each port
=
16 10/100Mbps TP ports with Auto-negotiation support
=
Bridging capability for 100Mbps and 10Mbps segments
=
Provides Store-and-Forward forwarding scheme.
=
Auto MDI/MDIX function support
=
IEEE 802.3x Flow-control support for Full-duplex
operation
=
Back-Pressure Flow-control support for Half-duplex
operation
PRODUCT SPECIFICATIONS
Models
Standards
Ports
Media Support
Bandwidth
Forwarding/Filtering Rate
MAC Addresses
Buffer Memory
Duplex Modes
Auto-MDIX
LED Indicators
Power Supply
Power Consumption
Environment
Certifications
Dimensions (L x W x H)

ORDERING INFORMATION

Model
CSH-1600 (J)
Specifications are subject to change without notice
CSH-1600
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-TX
IEEE 802.3x: Flow-control for Full-duplex operation
16 ports 10BASE-T/100BASE-TX
10BASE-T: Category 3, 4 or 5 TP
100BASE-TX: Category 5 TP
10BASE-T: 10/20Mbps
100BASE-TX: 100/200Mbps
14881 packets/second per port @ 10Mbps, maximum
148810 packets/second per port @ 100Mbps, maximum
8K entries maximum, Self-Learning
1.25Mbit packet buffer
Auto-negotiation
All TP ports support Auto-MDI/MDIX function
One (1) for Power
One (1) per port for Link/ACT
Internal Full Range Auto-Switching
Input voltage: 100 ~ 240 +/-10%V AC, 50/60 Hz
8.25W maximum
Operating Temperature:0° ~ 45°C (32° ~ 113°F)
Storage Temperature: --20° ~ 70°C (-4° ~ 158°F)
Humidity: 10% ~ 90% Non-condensing
CE, FCC
250 x 149 x 43 mm
(9.8 x 5.9 x 1.7 inches)
Sixteen (16) port 10/100Mbps Fast Ethernet Switch with Internal Power Supply
- Sixteen (16) port 10/100Mbps Fast Ethernet Switch
www.cnetusa.com
CSH-1600
Description
