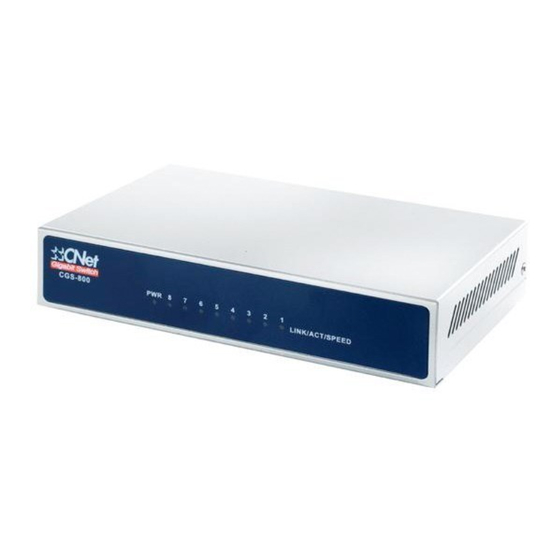

CNET CGS-800 Specifications

TOTAL NETWORK SOLUTIONS
CGS-800 is especially designed to meet heavy network traffic demands of small and medium businesses when
graphic or multimedia applications are used. With CGS-800, the maximum transfer speed for each independent port
reaches a remarkable 2000Mbps.
With built-in Auto-negotiation and Auto MDI/MDI-X functions, CGS-800 provides great compatibility and flexibility with
existing Ethernet networks. Each port is capable to automatically detect and determine the fastest possible speed
from 10/100/1000Mbps and Full-/Half-duplex modes.
Sturdy design and quality built makes CGS-800 an ideal product for enhancing network efficiency and deploying
intense applications without straining budget limits.

KEY FEATURES

=
Supports jumbo frames up to 9600 bytes
=
Supports Auto-Negotiation on each TP port
=
Bridging capability for 10Mbps, 100Mbps and
1000Mbps segments.
=
Provides Store-and-Forward forwarding
scheme.
=
Supports Auto MDI/MDI-X function
=
Non-blocking Performance Improves Access
to Network Resources

SPECIFICATIONS

Product Name
Model Name
Ports
Standards
Forwarding/Filtering Rate 14880 packets/second per port@10Mbps, max
Auto-MDI-X
LED Indicators
Environment
Power Supply
Certifications
Dimensions

ORDERING INFORMATION

Model
CGS-800 (D)
Specifications are subject to change without notice
8-Port Gigabit Ethernet Switch
CGS-800
8x 10/100/1000 BASE-T TP Ports
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE--T
IEEE 802.3x Flow Control for Full-Duplex Operation
148800 packets/second per port@100Mbps, max
1488000 packets/second per port@1000Mbps, max
All TP ports support Auto-MDI/MDI-X Function
One (1) Green LED display Power Status
One (1) Green / Yellow per port display Link statue
Green: Light for 1000Mbps Link; Blinking when data transfer.
Yellow: Light for 10/100Mbps Link; Blinking when data transfer
Operating Temperature: 0° ~ 45° C (32° ~ 113° F)
Storage Temperature: -20° ~ 70° C (-4° ~ 158° F)
Humidity: 10% ~ 90% Non-condensing
Internal full range switching power supply
Input voltage: 100 ~ 240 +-10%V AC 50/60 Hz
CE, FCC
175 x 110 x 36 mm (6.89 x 4.33 x 1.42 inches)
8-Port Gigabit Ethernet Switch
CGS-800 - 8-P G
ORT IGABIT
www.cnetusa.com
.
Description
Trademarks & Trade Names belong to their owners
E S
THERNET WITCH
