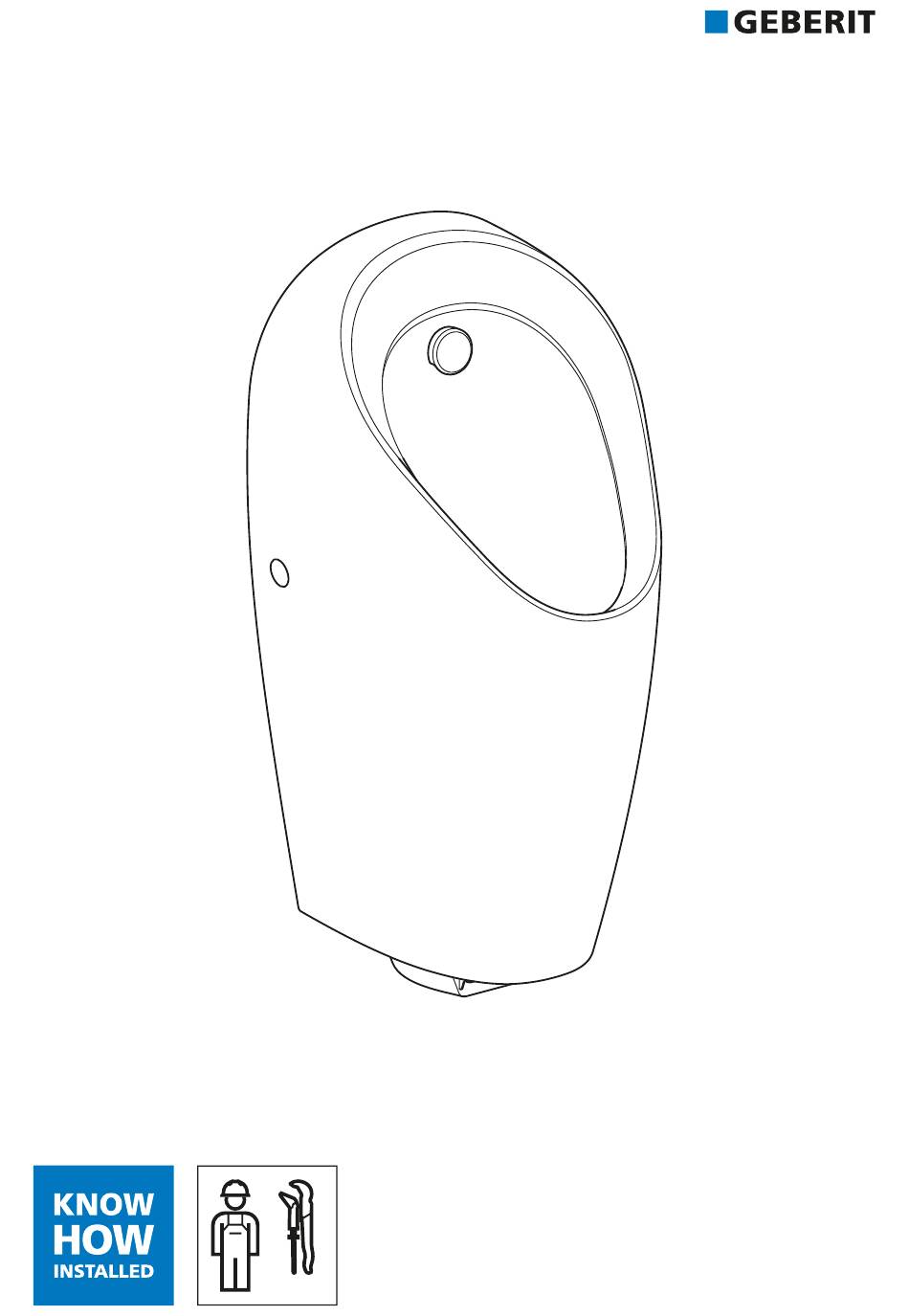

- Page 1 MAINTENANCE MANUAL...
-
Page 3: Table Of Contents
Maintenance performed by skilled persons ....................Replacing the control electronics ........................ Replacing the solenoid valve........................Replacing the water pressure reducing valve ..................... Making settings using Geberit Service Handy..................... Selecting the flush mode ..........................Activating the interval flush........................Activating hybrid mode .......................... -
Page 4: Safety
About this document This document applies to the professional maintenance of the following products: • Geberit urinals Preda, Selva and Tamina with integrated flush control, mains operation • Geberit urinals Preda, Selva and Tamina with integrated flush control, battery operation •... -
Page 5: Product Description
Product description Structure Figure 1: Geberit urinals Preda, Selva and Tamina with integrated flush control Spray head Urinal ceramic Urinal trap Water pressure reducing valve Solenoid valve with basket filter Generator (only for self-sustaining power supply) Urinal flush control with control electronics, power supply unit, a battery or self-sustaining power supply IR sensor 54043198642350731 ©... -
Page 6: Technical Data
Technical data Mains operation Battery operation Generator operation Nominal voltage 110–240 V AC – – Mains frequency 50–60 Hz – – Direct connection via system Mains connection – – plug Operating voltage 4.5 V DC 3 V DC 6.6 V DC Alkaline battery (1.5 Battery type –... -
Page 7: Troubleshooting
Troubleshooting The operator can perform the following measures to rectify malfunctions. → See operation manual 966.933.00.0 (mains operation) and 966.934.00.0 (battery operation and self-sustaining). • Restart the urinal flush control • Set the flush time • Optimise the detection distance •... -
Page 8: Maintenance
Maintenance Maintenance performed by the operator The operator may perform the following maintenance work. → See operation manual 966.933.00.0 (mains operation) and 966.934.00.0 (battery operation and self-sustaining). • Activate cleaning mode • Clean the urinal ceramic • Clean and replace the spray head •... -
Page 9: Replacing The Control Electronics
Replacing the control electronics Remove the urinal flush control. Release the protection flap. Open the urinal flush control cover. Open the protection flap. Disconnect the power supply cable. 54043198642350731 © 01-2021 967.135.00.0(05) - Page 10 Disconnect the solenoid valve cable. Connect the cable for the solenoid valve. Remove the defective control electronics. Connect the power supply cable. Close the urinal flush control cover. Insert the new control electronics. 54043198642350731 © 01-2021 967.135.00.0(05)
-
Page 11: Replacing The Solenoid Valve
Replacing the solenoid valve Install the urinal flush control. Release the protection flap. Close the protection flap. Open the protection flap. Result ✓ The urinal is ready for operation. 54043198642350731 © 01-2021 967.135.00.0(05) - Page 12 Remove the urinal flush control. Remove the solenoid valve unit. Demount the securing clamp. Open the urinal flush control cover. Demount the coupling. Disconnect the solenoid valve cable. 54043198642350731 © 01-2021 967.135.00.0(05)
- Page 13 Demount the solenoid valve. Mount the coupling. Mount the securing clamp. Prepare the new solenoid valve. Snap the solenoid valve unit into place. Mount the new solenoid valve. Connect the cable for the solenoid valve. 54043198642350731 © 01-2021 967.135.00.0(05)
- Page 14 Close the urinal flush control cover. Close the protection flap. Install the urinal flush control. Result ✓ The urinal is ready for operation. 54043198642350731 © 01-2021 967.135.00.0(05)
-
Page 15: Replacing The Water Pressure Reducing Valve
Replacing the water pressure Remove the urinal ceramic. reducing valve Do not open the water pressure reducing valve. This can cause the pressure setting to be adjusted. Replace the water pressure reducing valve in the event of clogging. Remove the fastening for the urinal ceramic. Close the angle stop valve. - Page 16 Demount and dispose of the water pressure Open the angle stop valve. reducing valve. Mount the ceramic. Mount the new water pressure reducing valve. 54043198642350731 © 01-2021 967.135.00.0(05)
- Page 17 Fasten the ceramic in place. 54043198642350731 © 01-2021 967.135.00.0(05)
-
Page 18: Making Settings Using Geberit Service Handy
With the Geberit Service Handy, additional maintenance functions can be performed and individual settings can be made. The numbers and terms in the column “Menu item” correspond to what can be seen on the display of the Geberit Service Handy. For further information → See user manual for the Geberit Service Handy. - Page 19 Programmes Menu item Description Application Value Factory setting [EN] [DE] • Topping up the urinal trap in the event of infrequent use. On = [ON] [IntFlush] Activate interval flush. On = [ON] Off = [OFF] • Flushing out stagnant [IntervSp] water (to prevent stagnation).
- Page 20 Parameters Menu item Description Application Adjustment Factory setting [EN] range [DE] Improving the flushing out Set flush time. of the urinal ceramic, [FlshTime] Determines the duration of the 1–15 s [...] 7 s [7] observing water [Spülzeit] flush after one use. consumption. Set detection time.
- Page 21 Parameters Menu item Description Application Adjustment Factory setting [EN] range [DE] Set interval for the purging flush. [PurgIntT] Is active when menu item 38 – 1–168 h [...] 6 h [6] [PurgIntT] “Activate purging flush” is [ON] [EIN]. Counters Menu item Description Version [EN] [DE]...
-
Page 22: Selecting The Flush Mode
Device info Menu item Description Version [EN] [DE] Article number. [TypeNo] Indicates the article number of the control electronics (does not apply if the [...] [Modell-Nr] control electronics have been replaced). Software version. [SWVersion] Indicates the software version of the control electronics (e.g. [0312] = [...] XXZZ [SWVersion] version 3.12). -
Page 23: Activating Hybrid Mode
Activating hybrid mode The hybrid mode [HybridMod] is activated with menu item 37. The flush is not released during use (waterless operation). A periodic flush is released once the time-out period or interval has elapsed. The flush time is determined by [HybFlshT] (menu item 47). •... -
Page 24: Disposal
Old equipment should be returned directly to Geberit where it will be disposed of appropriately. Addresses to which equipment can be returned can be requested from the relevant Geberit sales company.
