GEBERIT AQUACLEAN 4000
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUACLEAN 4000 and is the answer not in the manual?

Questions and answers

Related Manuals for Geberit AQUACLEAN 4000

Summary of Contents for Geberit AQUACLEAN 4000

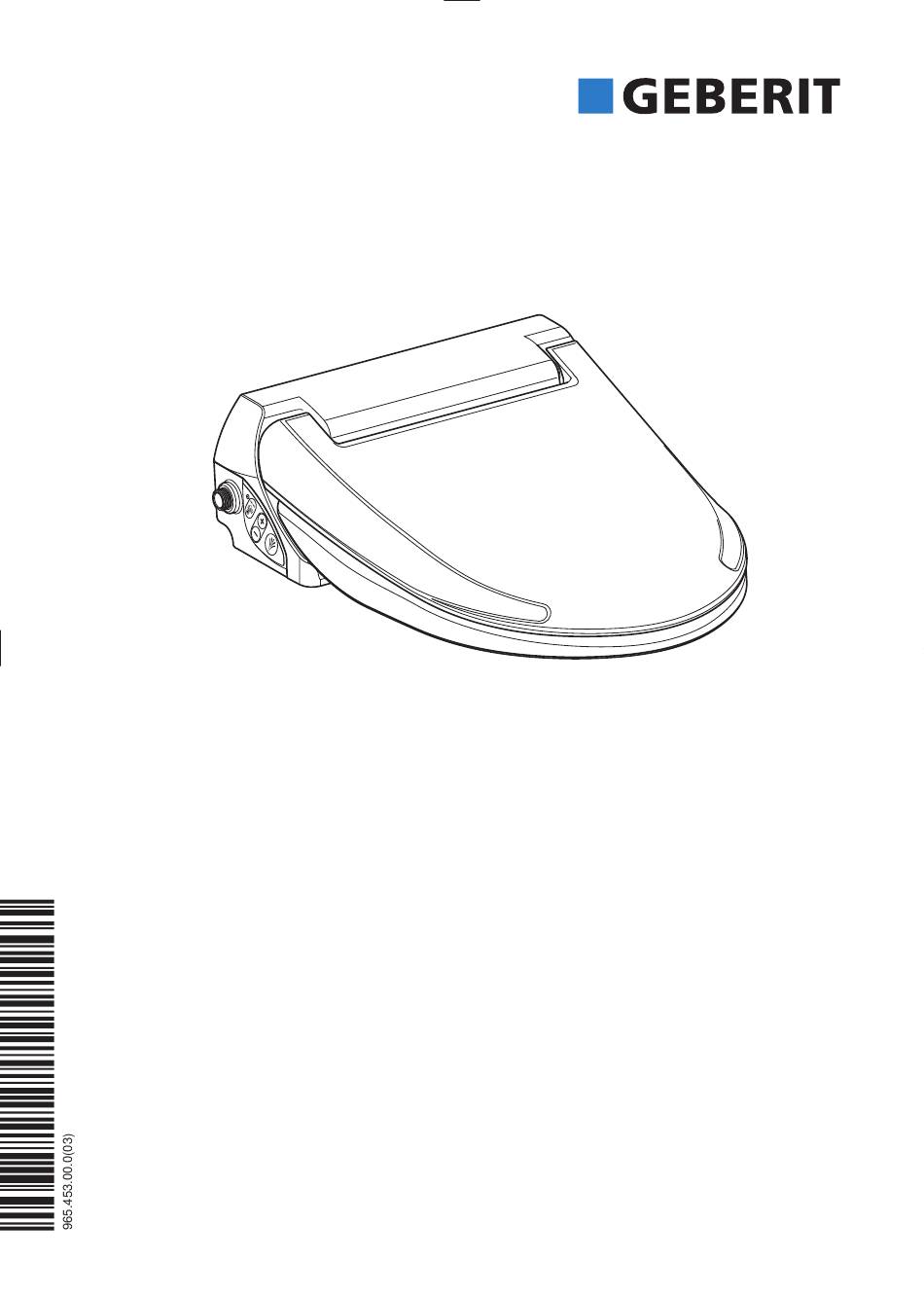

  • Page 1 GEBERIT AQUACLEAN 4000 USER MANUAL...

  • Page 3: Table Of Contents

    Explanation of warning notes ..................... Overview of symbols on the product .................. Register your device ..................Getting to know your device ................About Geberit AquaClean devices ..................Functional overview......................The device at a glance ....................... Operating concept.................... About the operating concept ....................
  • Page 4 Empty the storage water heater ..................Troubleshooting ....................The shower toilet is without function .................. Other functional errors......................Sustainability ....................Geberit Group and sustainability ..................Ecodesign – ecobalance ....................Tips for reducing the ecological footprint................Disposal ......................Disposal of waste electrical and electronic equipment ............

  • Page 5: For Your Safety

    For your safety Who is this product suitable for? As a functioning toilet, the Geberit AquaClean shower toilet is suitable for all age groups. However, children must not carry out cleaning or maintenance work without supervision. How is this product used?

  • Page 6: General Safety Notes

    Geberit AquaClean has been removed (e.g. if you move house). • The Geberit AquaClean must only be connected to a mains voltage conforming to the specification plate. • Observe the manufacturer information at all times regarding the use of cleaning and descaling agents.

  • Page 7: Explanation Of Warning Notes

    Explanation of warning notes Warning notes are placed at the location at which the hazard may occur. Warning notes are structured as follows: WARNING Nature and source of the hazard Possible consequences if the hazard is ignored. ▶ Measures to prevent the hazard. The following signal words are used to indicate residual hazards in warning notes and important information.

  • Page 8: Register Your Device

    Extend the warranty period of your Geberit AquaClean for free. Register for this within 90 working days from the installation date. In the third year of the warranty period, Geberit shall supply spare parts free of charge in the event of any material or manufacturing faults, provided the product has been installed and put into operation by an installation company.

  • Page 9: Getting To Know Your Device

    Getting to know your device About Geberit AquaClean devices The Geberit AquaClean device is a WC with integrated shower function. The device also fulfils all the functions of a conventional WC. Additional functions are subject to the design of your product.

  • Page 10: The Device At A Glance

    SVGW 220–240 V~/ 50/60 Hz DVGW 750–900 W EN 13077 / Typ AB DN1/2″ Geberit Int. AG / Schachenstr. 77 / CH-8645 Jona WC lid Specification plate with serial number Basket filter Lateral control panel with status LED WC seat ring...

  • Page 11: Operating Concept

    Operating concept About the operating concept The Geberit AquaClean shower toilet can be operated using the lateral control panel. Lateral control panel Storage water heater LED display <Storage water heater function> button: economy mode/ON/OFF <+>/<-> buttons: increase or decrease the spray intensity <Shower>...

  • Page 12: Wc Seat Ring And Lid With Soft-Closing Mechanism

    WC seat ring and lid with ▶ Do not press the WC seat ring and soft-closing mechanism lid down with your hand. This will damage the dampers. Dampers cushion the WC seat ring and lid noiselessly and slow down closing. The seat ring and lid open just like on any normal WC.

  • Page 13: Adjusting The Shower Procedure To Your Personal Needs

    Adjusting the shower procedure to your personal needs Set the spray intensity Prerequisite – The shower procedure is running. ▶ Press the <+> button to increase the spray intensity. Press the <-> button to decrease the spray intensity. Result ✓ The shower spray becomes stronger/ weaker.

  • Page 14: Cleaning And Descaling The Device

    ▶ Remove water drops with a soft, lint-free cloth to avoid Daily limescale stains. ▶ Clean the ceramic pan with Geberit AquaClean cleaning agent. → See "Care instructions for sanitary ceramic appliances", page 17. ▶ Clean all surfaces and corners thoroughly. → See "Cleaning Weekly the WC lid, WC seat ring and housing", page 18.

  • Page 15: Suitable Cleaning Agents And Cleaning Equipment

    ▶ Use Geberit AquaClean cleaning agents. ▶ Pay attention to the cleaning and care instructions. Using the Geberit AquaClean cleaning set is recommended, as this set includes a ready-made cleaning agent that is ideal for cleaning all Geberit AquaClean surfaces.
  • Page 16 Recommended properties of suitable cleaning agents and cleaning equipment for best cleaning results: Symbol Properties of suitable cleaning agents Skin-friendly Cleaning agents are permitted to have a low acid content, e.g. diluted citric acid Low-foaming Liquid Water-dilutable Symbol Suitable cleaning equipment Soft, fine-pored sponges Lint-free, soft cloths which are free of dust Toilet brush...

  • Page 17: Care Instructions For Smooth Surfaces

    Aggressive and scouring cleaning agents can damage the surface. Only use mild, liquid cleaning agents that are kind to the skin. The Geberit AquaClean cleaning set (art. no. 242.547.00.1) includes a ready-made cleaning agent that is optimal for cleaning all Geberit AquaClean surfaces.

  • Page 18: Care Instructions For Wc Seat

    • Never use cleaning agents that contain chlorine or acid or that are corrosive. Spray the surfaces with Geberit • Never use cleaning agents that are AquaClean cleaning agent. Wipe the abrasive or may scratch the surface.
  • Page 19 Spray the WC lid and the WC seat ring with Geberit AquaClean Turn the lid retainer downwards and cleaning agent. Wipe the surfaces close the WC lid.

  • Page 20: Clean The Spray Nozzle

    • For cleaning, use a soft, lint-free descaled. cloth. • Geberit AquaClean cleaning agent Spray the spray arm with Geberit is particularly suitable for all AquaClean cleaning agent. Then surfaces of the device. rinse it thoroughly with warm water.
  • Page 21 Press the <+> and <-> keys or the <+> and <Shower> keys on the lateral control panel simultaneously. ✓ The spray arm extends without spraying any water. Mount the spray nozzle. Press the <+> and <-> keys or the <+> and <Shower> keys on the lateral control panel simultaneously.

  • Page 22: Clean Or Replace The Basket Filter

    Clean or replace the basket Insert the basket filter. filter Screw on the connection bend. Close the angle stop valve. Open the angle stop valve. Loosen the connection bend and empty the residual water into a receptacle. Remove the basket filter. Clean and descale the basket filter.

  • Page 23: Replacing The Compensation Pads

    Replacing the compensation Empty the storage water pads heater If you are not going to use the Geberit The shower toilet can be damaged if AquaClean 4000 for a long period of the compensation pads do not lie time (e.g. whilst on holiday), we evenly on the WC ceramic appliance.

  • Page 24: Troubleshooting

    Troubleshooting The shower toilet is without function The following table will help you with troubleshooting if the shower toilet is without function. DANGER Electric shock Incorrect maintenance work or troubleshooting can lead to serious injury or death. ▶ In case of malfunctions, the device must immediately be switched off at the power switch and the customer service must be contacted.
  • Page 25 Description of problem Cause Fault clearance ▶ Replace or reset the fuse in the electrical distributor. ▶ Reset the residual-current device in the electrical distributor. The fuse or residual- current device in the Malfunction has electrical distributor trips occurred Result once.

  • Page 26: Other Functional Errors

    Other functional errors The following table will help you with troubleshooting if individual functions of the shower toilet have failed. The shower toilet can be used as a normal toilet even in the event of a malfunction. The spray arm must be fully retracted. You start the toilet flush as usual by pressing the buttons on the cistern.
  • Page 27 Description of problem Cause Fault clearance LED flashes red: once Temperature sensor ▶ Contact customer service. every 2  s econds. defective ▶ Open the angle stop valve. → See Angle stop valve "Clean or replace the basket filter", closed page 22 LED flashes red: twice every 2 ...

  • Page 28: Sustainability

    A company management geared to sustainability helps to save costs while minimizing risks at the same time. Geberit aims to act as a role model and set standards for its customers, suppliers and other partners. This means creating water-saving and sustainable products,...

  • Page 29: Disposal

    End users are legally obliged to return old equipment to public waste disposal authorities, distributors, or Geberit for proper disposal. Many distributors of electrical and electronic equipment are obliged to take back WEEE free of charge. Contact the responsible sales or service company to return the WEEE to Geberit.

  • Page 30: End User Warranty

    Geberit and contracted by the end user to repair the product. The end user shall not be entitled to assert more extensive claims against Geberit on the basis of this warranty.

  • Page 31: Technical Data And Conformity

    Maximum load, WC seat 150 kg Simplified EU Declaration of Conformity Geberit International AG hereby declares that the radio equipment type Geberit AquaClean 4000 complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: https://doc.geberit.com/969885000.pdf.
  • Page 32 F +33(0)825 801 604 (RS) Geberit - Predstavništvo za www.geberit-aquaclean.fr Republiku Srbiju i Republiku Crnu Goru (AT) Geberit Vertriebs GmbH & Co. KG Vojvode Skopljanca 24 Gebertstrasse 1 (GB) Geberit Sales Ltd. SR-11000 Beograd A-3140 Pottenbrunn / St. Pölten...
